4K UHD HDMI Over IP Multicast Transceiver with Seamless Matrix Switching/MultiView/KVM/USB 3.0/POE Support
€899,00
Tags:
Overview (PRE-ORDER)

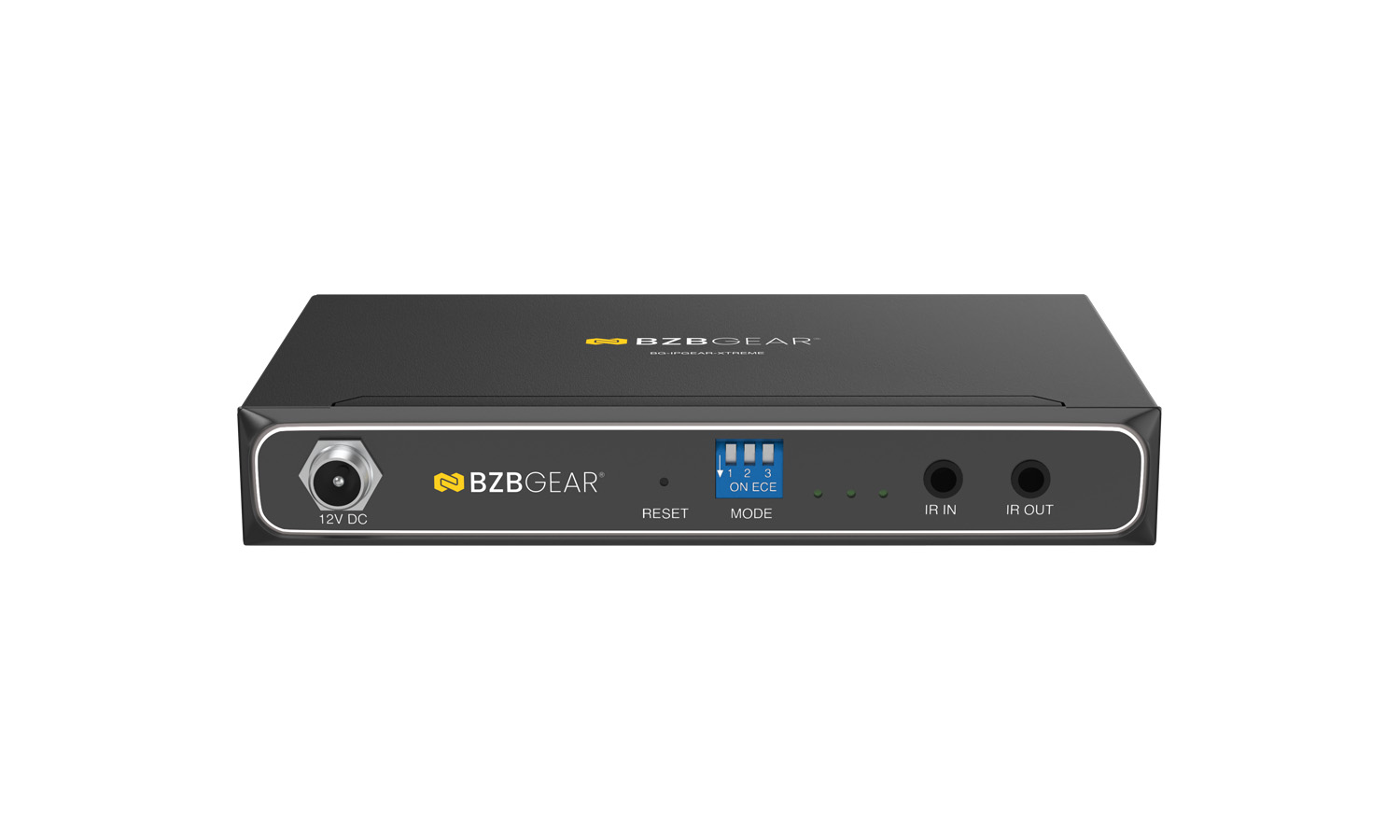

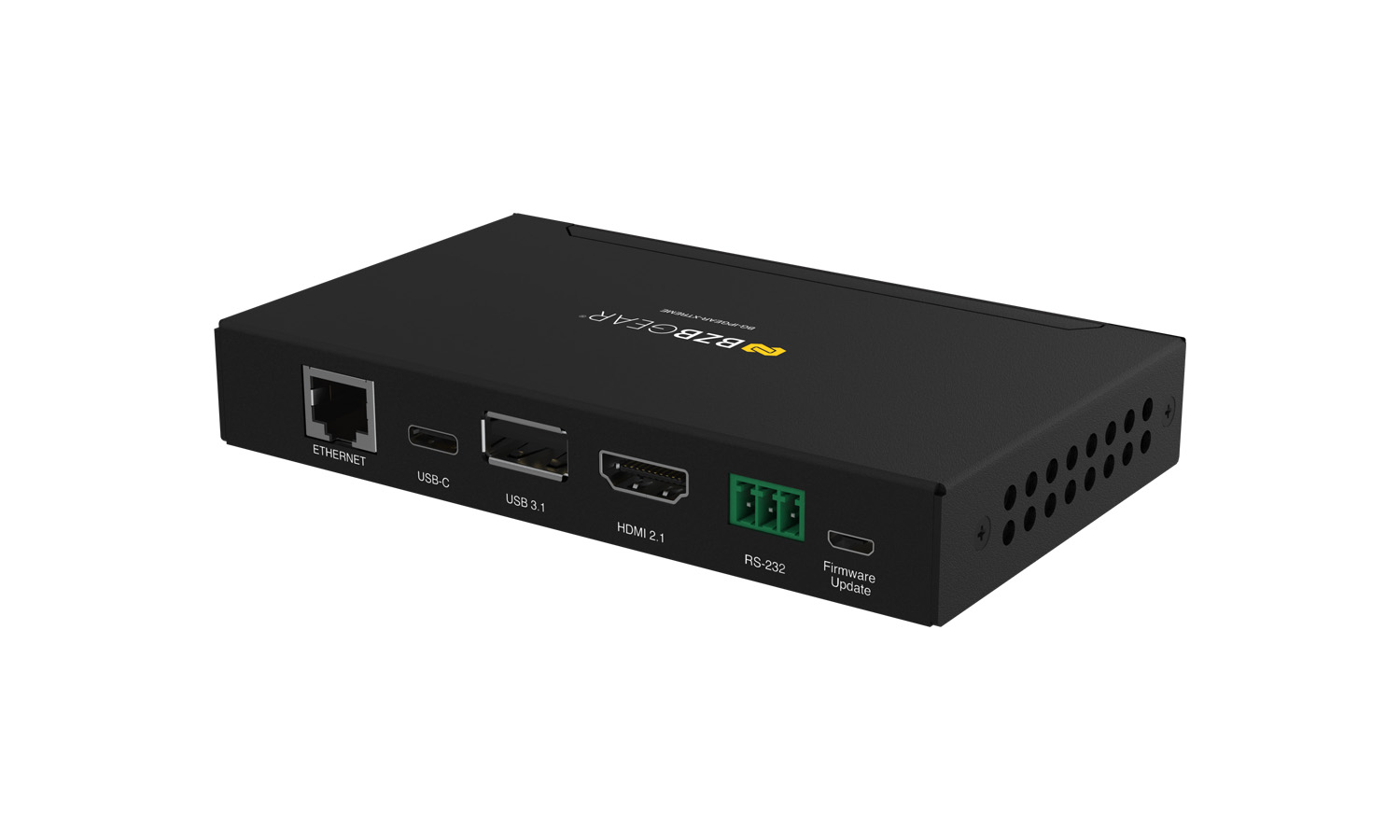

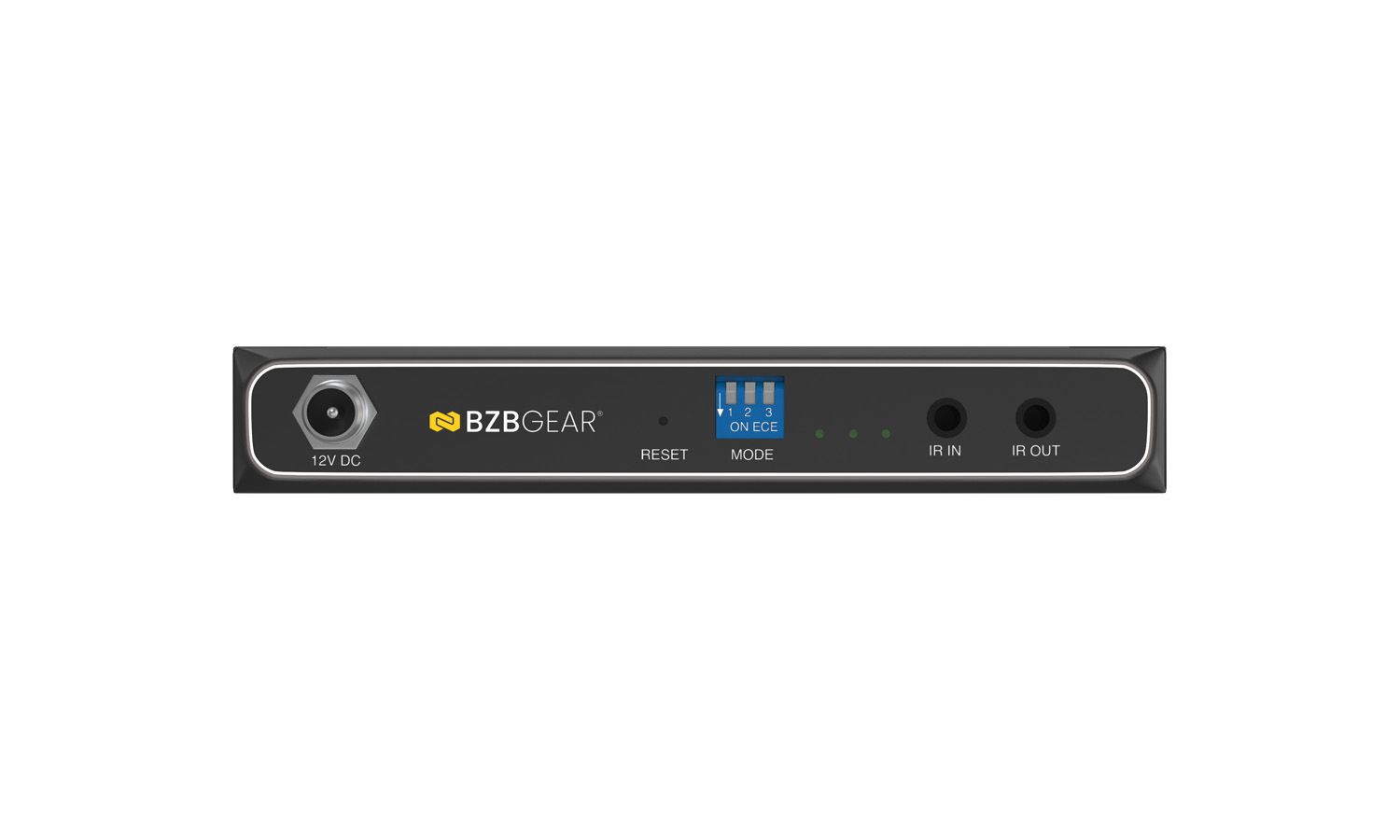

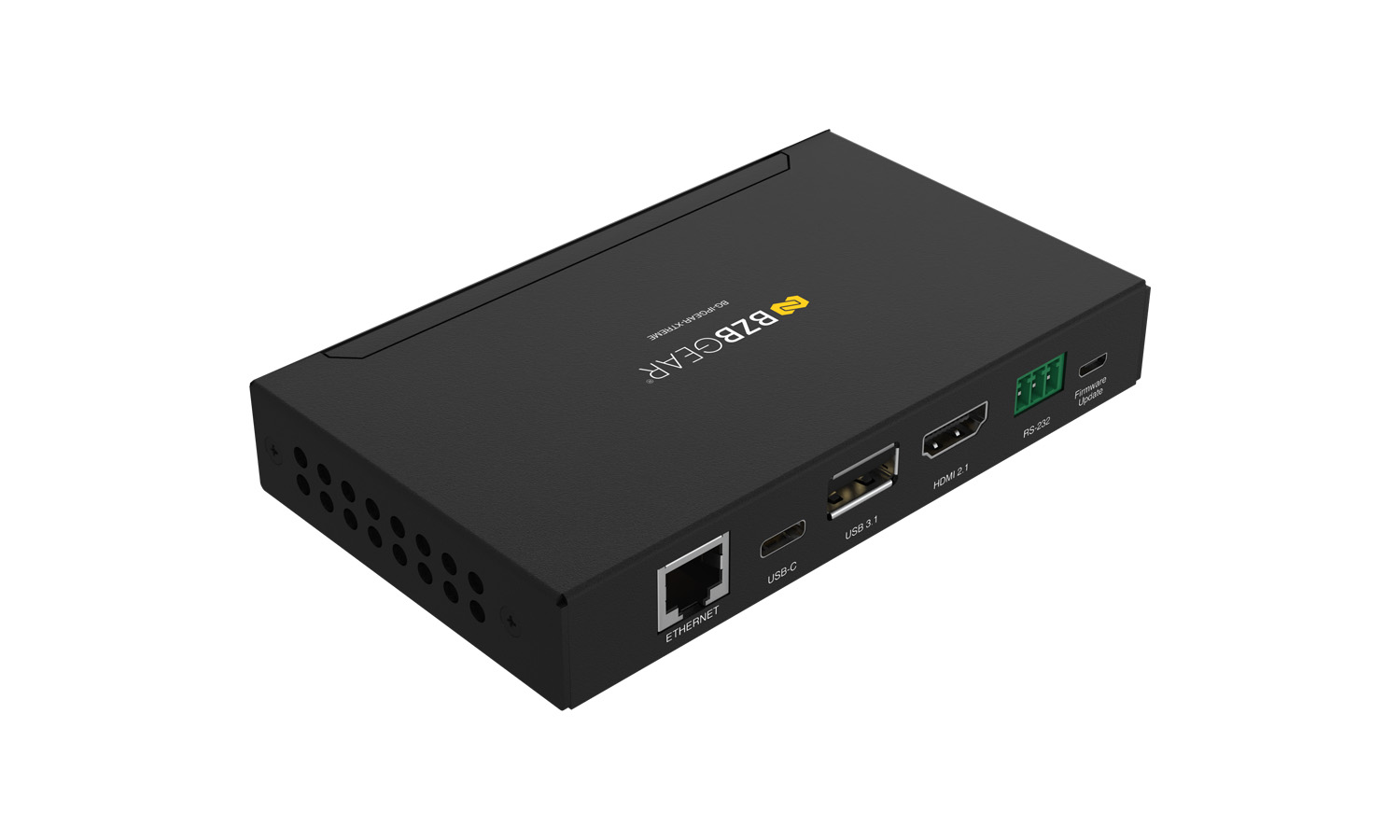

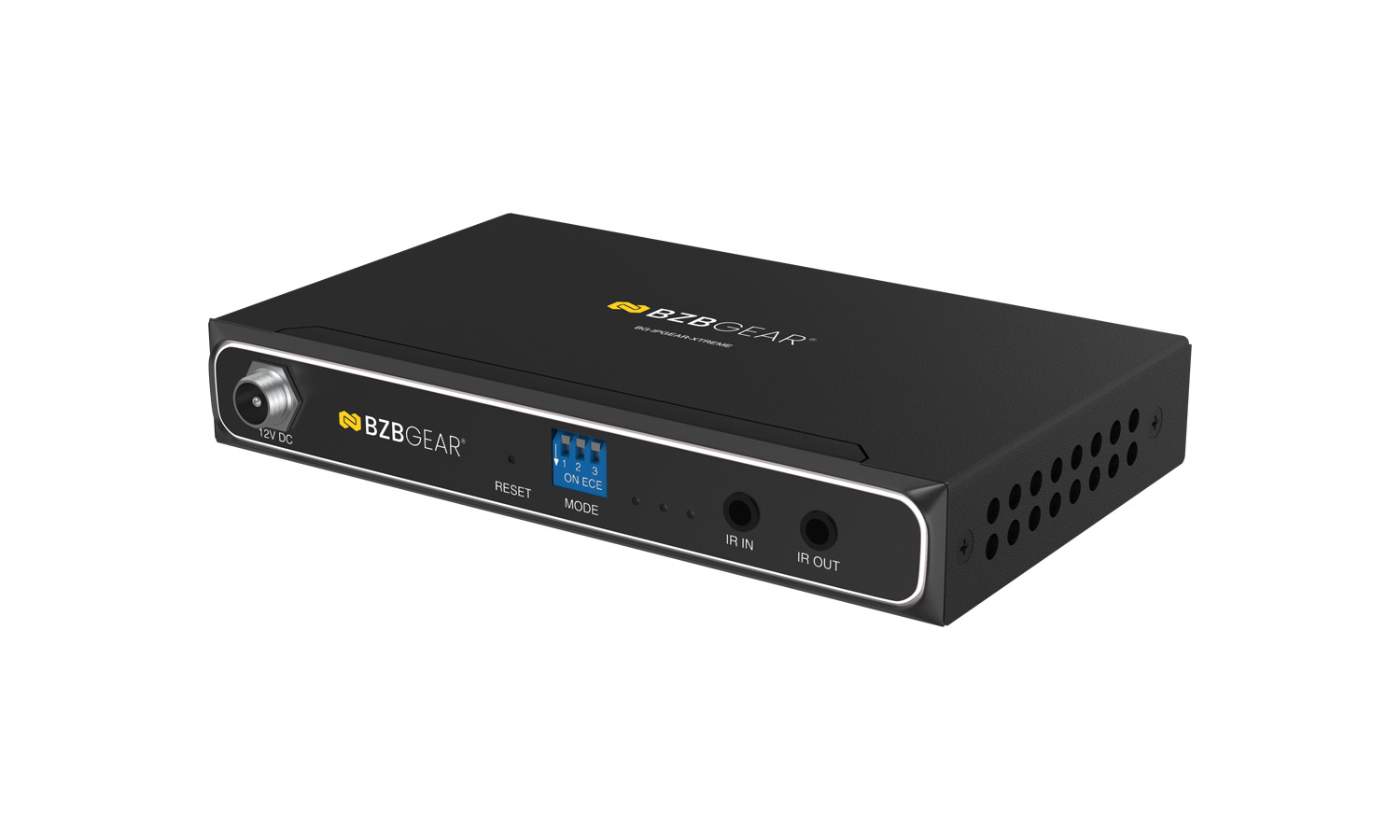

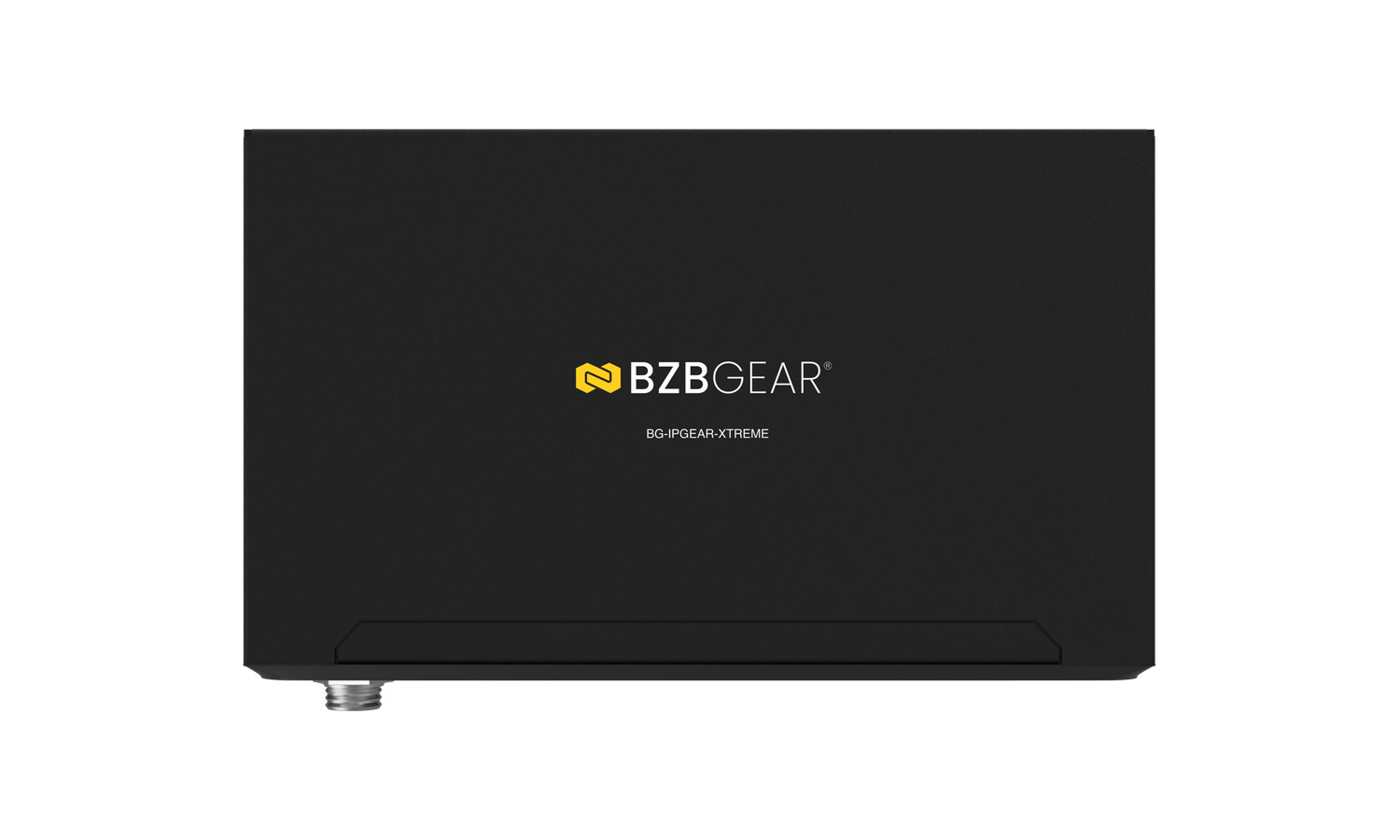

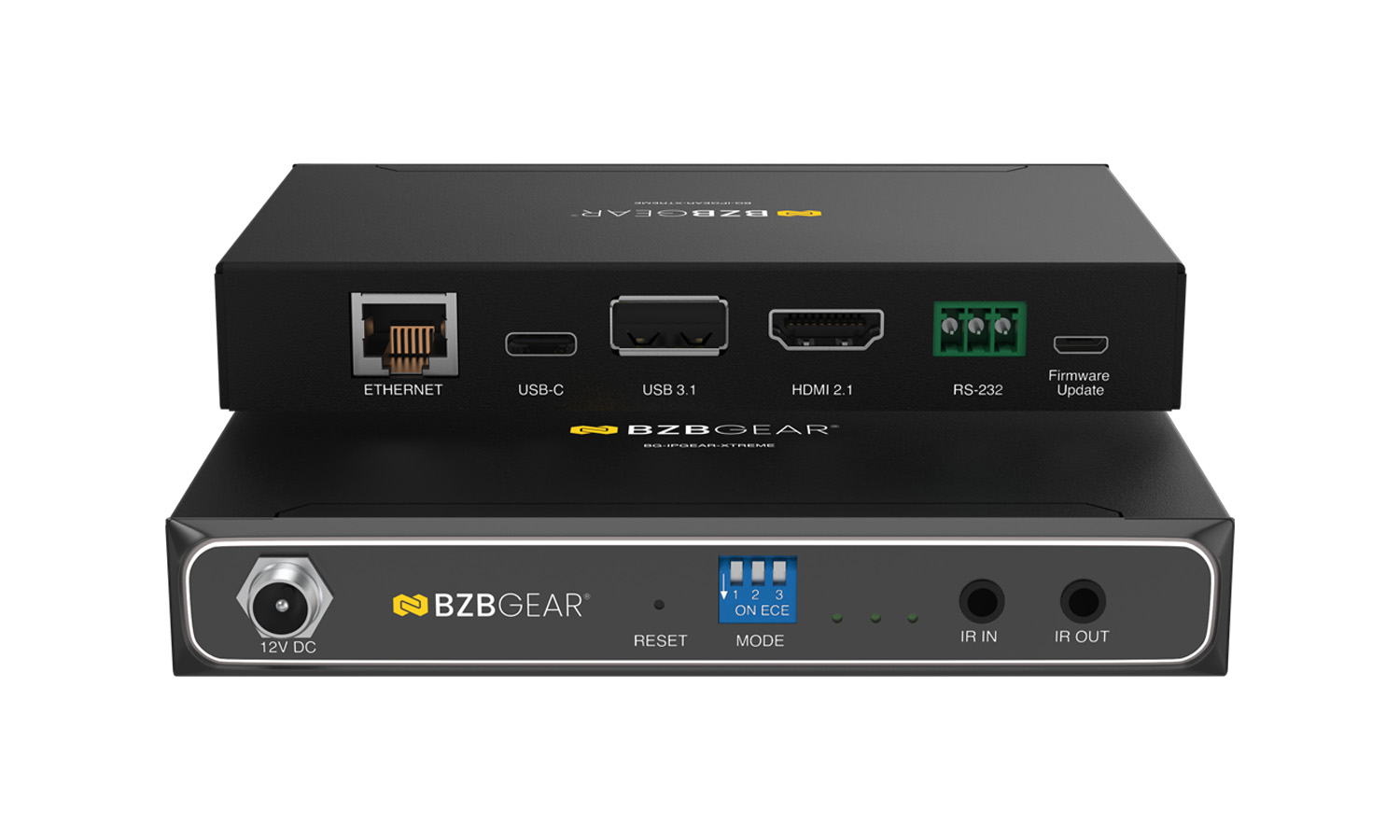

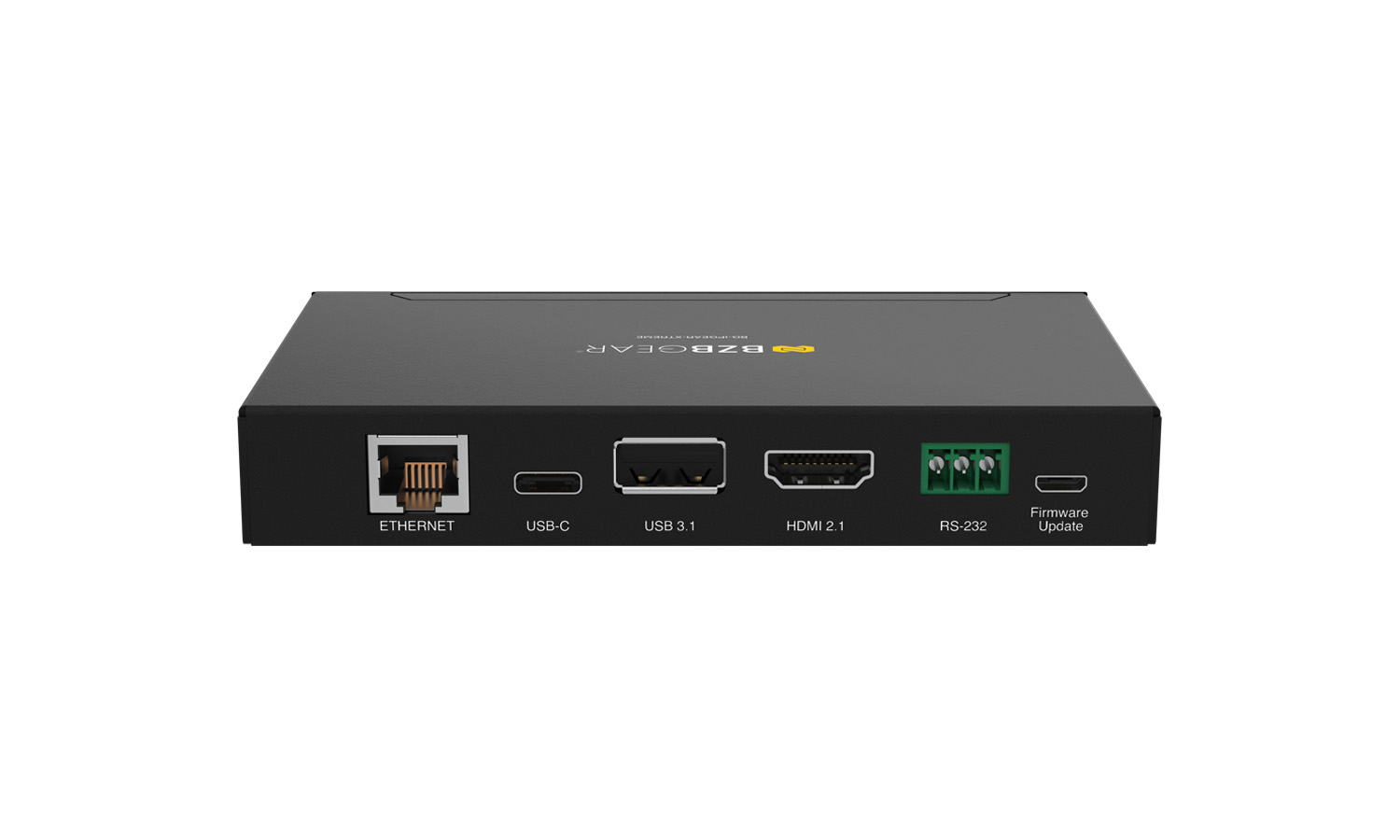

The BG-IPGEAR-XTREME is a high-performance HDMI 2.1 over IP multicast system designed to deliver Ultra-HD 4K@120Hz 4:4:4 video over a Cat.5e network up to 100 meters (330 feet). With support for bi-directional IR, RS-232, and USB 3.1, this versatile solution ensures seamless transmission of high-resolution video and audio while maintaining compatibility with modern AV control systems.
This system is ideal for a variety of applications, including digital signage, healthcare, corporate AV, gaming, and large-scale video broadcasting. The BG-IPGEAR-XTREME supports flexible point-to-point, point-to-multipoint, and multicast configurations, enabling scalable video distribution across multiple displays.
VAT
Not Included Choose Quantity
Product Details
Features
HDMI 2.1 & HDCP 2.3 ComplianceEnsures compatibility with the latest high-definition content protection standards
4K@120Hz 4:4:4 Video TransmissionProvides ultra-high-definition video with crystal-clear clarity and exceptional color depth
VRR (Variable Refresh Rate) & ALLM (Auto Low Latency Mode)Enhances gaming and interactive applications with smooth frame rates and reduced latency
Long-Distance TransmissionExtends HDMI signals up to 100m (330ft) over Cat.5e cabling
Advanced Audio SupportDelivers uncompressed 7.1-channel digital HDMI audio, including DTS-HD Master Audio and Dolby TrueHD
Intelligent Network ManagementWorks with managed 1GbE switches supporting IGMP Snooping & 802.1Q VLAN for multicast optimization
- HDCP & CEC Bypass – Maintains compatibility with a wide range of devices
- Bi-Directional IR & RS-232 Control – Enables seamless integration with AV control systems
- eARC/ARC Support – Ensures high-quality audio return from displays
- Seamless Switching & Video Scaling – Provides smooth transitions between sources and adaptable display resolution
- Picture-in-Picture (PiP), Picture-by-Picture (PbP), and Picture-on-Picture (PoP) Support – Enhances video collaboration and multi-view functionality
- USB 3.1 Gen1 & Gen2 Support – Facilitates connectivity for UVC webcams and other USB peripherals
- 1G LAN Integration – Allows network device connection through the built-in Ethernet port
- Multi-Encode & Decode Capability – Utilizes proprietary codecs for optimized video streaming
- Low Latency (<1 frame) – Ensures real-time performance for critical applications
