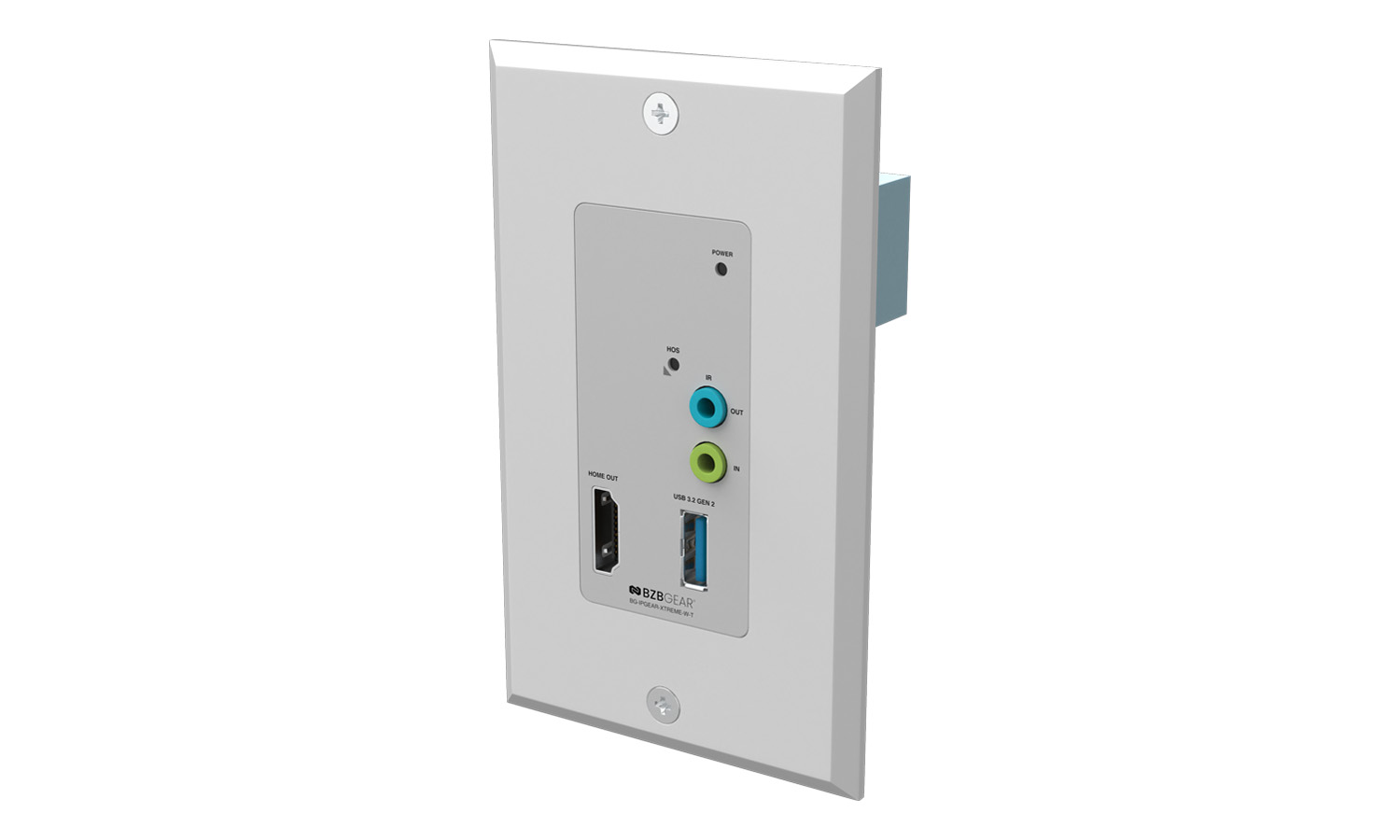

4K UHD HDMI Over IP Multicast Wall Plate with Seamless Matrix Switching/MultiView/KVM/USB 3.0/POE Support

Overview (PRE-ORDER Shipping Q4 2025)

The BG-IPGEAR-XTREME-W HDMI 2.1 Over IP Multicast Wall Plate System is a high-performance AV transmission solution designed to extend Ultra-HD 4K@120Hz 4:4:4 video and high-fidelity audio over long distances via standard Cat.5e cable. Supporting distances of up to 100 meters (330 feet) over copper, this system ensures uncompressed, high-quality transmission from HDMI sources such as Apple TV, PlayStation, Xbox, PCs, and other HDMI-enabled devices to remote displays.

With support for USB-C (Alt Mode DP 1.4), HDMI, and DisplayPort input, the BG-IPGEAR-XTREME-W is ideal for professional AV installations in corporate environments, digital signage, healthcare, gaming, and education sectors. The unit features bi-directional IR pass-through, USB 3.1 for UVC devices, and seamless video switching, making it a robust choice for interactive and multi-display setups.

By utilizing a 1 Gigabit Ethernet network switch with IGMP Snooping support, this system enables flexible video distribution in point-to-point, point-to-multipoint, and multicast configurations. Additionally, the built-in 802.1Q VLAN functionality allows for remote control of multiple devices, ensuring an efficient and scalable deployment.
