8K60 HDMI 2.1 eARC Audio to Amplifier Converter
Overview

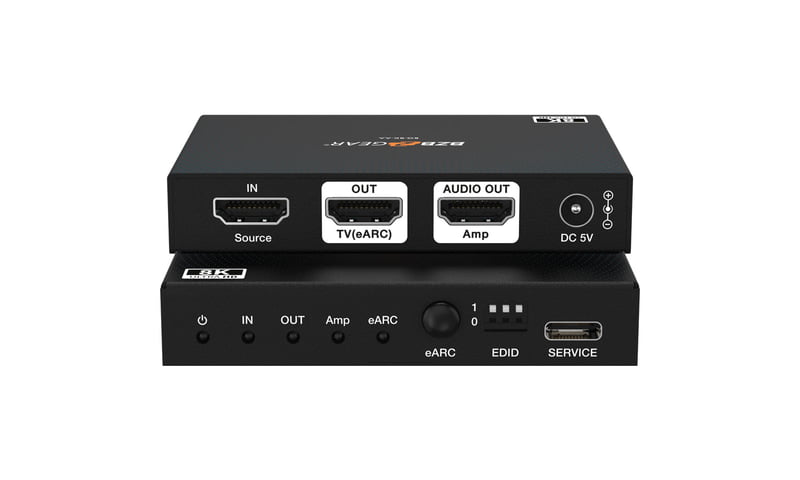

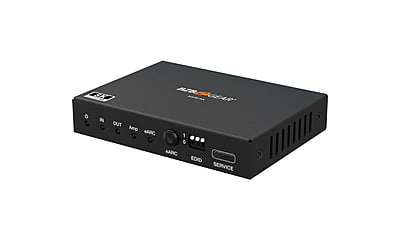

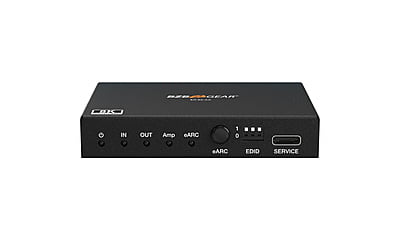

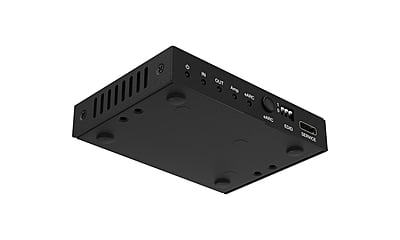

The BG-8K-AA 48Gbps HDMI Audio De-embedder is a cutting-edge solution engineered to extract high-fidelity audio from HDMI sources or ARC/eARC-enabled TVs without compromising video quality. With support for the latest HDMI 2.1 and HDCP 2.3 standards, it handles ultra-high-definition resolutions up to 8K@60Hz and 4K@120Hz, while also offering advanced features such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and multiple HDR formats.
Capable of delivering immersive audio formats like Dolby Atmos and DTS, this device provides direct audio extraction via ARC/eARC for seamless integration with amplifiers. Compact yet powerful, the BG-8K-AA is designed for superior performance in both home theaters and professional AV environments.
| echnical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Color Depth | 8/10/12bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X HDMI AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

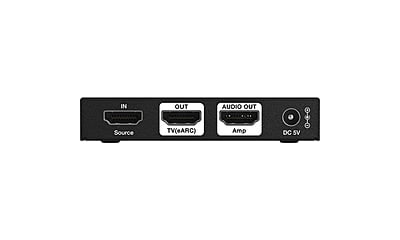

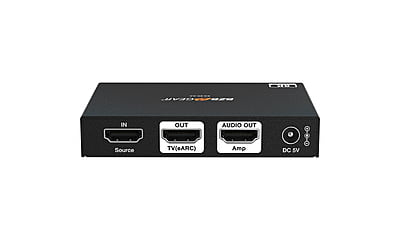

| Input | 1 × Source IN [HDMI Type A, 19-pin female] |
| Output | 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] |

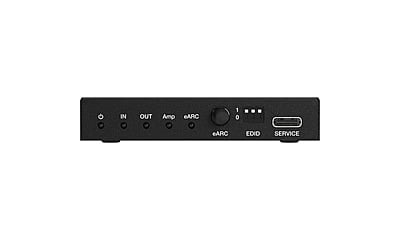

| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm] |
| Weight | 0.39 lbs [178g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 4.5W (Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
