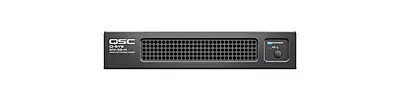

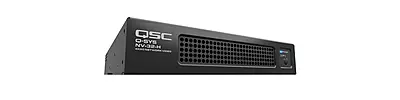

NV-32-H (Core Capable) - Q-Sys Network Video Endpoint
True Q-SYS processing and I/O capabilities
Complete audio processing for the Q-SYS Platform. Includes 32x32 network audio channels, eight software-based acoustic echo cancelation (AEC) channels and onboard audio via HDMI, USB and 3.5mm connections. Optional software feature licenses include a robust control engine, UCI creation and deployment, Dante audio channels and Q-SYS Shift™ encoding or decoding.
Integrated video capabilities
Core Mode enables an onboard 3x2 HDMI video switcher, allowing in-room users to share content from their laptops or other devices easily. The Core Mode Video Streaming feature license enables encoding or decoding via Q-SYS Shift™.
Integrated AV Bridging

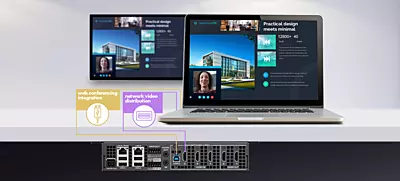

Seamlessly connect Q-SYS network camera and audio feeds via a driverless USB connection into all major UC&C conferencing applications, including Microsoft Teams, Zoom and Google Meet.
Peripheral Mode:
Native video distribution for the Q-SYS Platform:
Native HDMI audio and video distribution without additional control processors or complicated programming.
Optimized for the connected meeting space:
Q-SYS Shift® video codec dynamically adjusts network bandwidth based on video content, delivering the right balance of quality, latency and network efficiency for meeting room video applications.
Integrated AV Bridging:
Seamlessly connect Q-SYS network camera and audio feeds via a driverless USB connection into all major UC&C conferencing applications, including Microsoft Teams, Zoom and Google Meet.
| Channel Capacity (Core Mode only) | |
| Q-LAN / AES67 | 64 x 32 |
| Dante Channels | licensable up to 32 x 32 (none included) |
| AEC processors | 8 |
| VoIP instances | 1 |
| Audio recording / playback | 4 ch recording / 16 ch playback |
| Q-SYS NM-T1 capacity | 3 |
| Encoding or Decoding (Peripheral Mode only) | |
| Video compression | Q-SYS Shift™ compression codec |
| Bitrates | 10 Mbps - 800 Mbps |
| Content protection | HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders |
| Audio I/O | |
| HDMI inputs | 8-channel PCM audio, Q-SYS routable |
| HDMI outputs | 8-channel PCM audio, Q-SYS routable |
| Analog input | 3.5 mm unbalanced stereo mic/line input Q-SYS routable |
| Analog output | 3.5 mm unbalanced stereo line output Q-SYS routable |
| Video I/O | |
| HDMI 2.0 inputs | 3x HDMI capable of receiving source input video formats up to 4K60 4:4:4 |
| HDMI 2.0 outputs | 2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4 |
| Scaler | Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions |

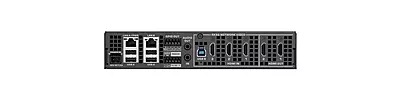

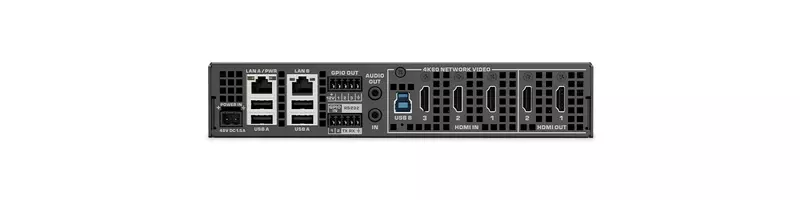

| Connectors | |
| RS-232 | Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable |
| GPIO | Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable |
| LAN A | Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power. |
| LAN B | Redundant connection for audio & control traffic (Core Mode only) |
| Audio input | Signal to Noise: 90 dBFS |
| THD+N: 0.009% @ 0 dB | |
| Audio output | Signal to Noise: 90 dBFS |
| THD+N: 0.0167% @ 0 dB | |
| Power | |
| Power over Ethernet specification/wattage | Conforms to IEEE 802.3bt Type 4 |
| Physical power supply info | 48 V DC Nominal, 1.5 A on 2-pin Euro connector |
| Environmental | |
| Ambient operating temperature range | 0-50° C |
| Humidity | 5 to 85% non-condensing |
| Storage temperature | -20 to 70° C |
| General | |
| Dimensions | 8.66 in x 11.28 in x 1.72 in |
| 220 mm x 286.6 mm x 43.6 mm | |
| Weight | Weight: 4.0 lb (1.81 kg) |
| Regulatory compliance | CE, FCC Part 15 Class B, RoHS |
| Mounting options | Rack-mountable, 1RU half-rack width |
| Surface-mountable, table or wall-mount | |
| All mounting hardware is included |
