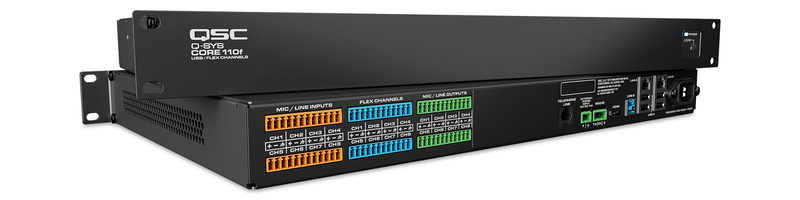

CORE 110f-v2 - Q-SYS network + analog I/O processor (v2)
Features & Benefits
- 128 networked audio channels (Q-LAN / AES67)
- 24 channels of analog I/O, including 8 configurable Flex channels
- 16x AEC processors
- Supports up to 4x Q-SYS NM-T1 network microphones
- Up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (16 x 16 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 4x VoIP instances
Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
Extend your network I/O connectivity with QIO Series: QIO Series lets you quickly add network I/O connectivity to your Q-SYS systems where it’s most convenient. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO). Learn more.
True IT Software Integration: The Q-SYS Operating System is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, as well as the latest software-based security for your AV system like cryptographically signed firmware updates, encrypted data transport and storage.
Suite of Software-Based Conferencing Technology applications: Built by Q-SYS from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing, gating automixers and role-based access controls.
Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
