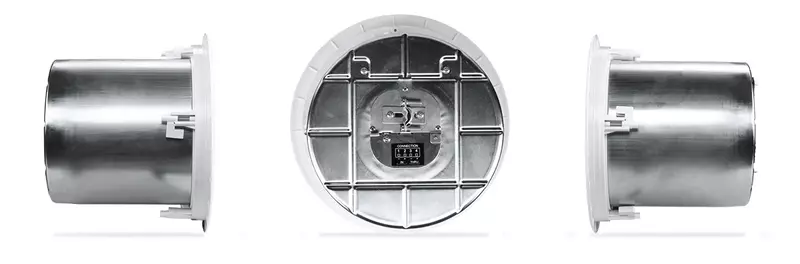

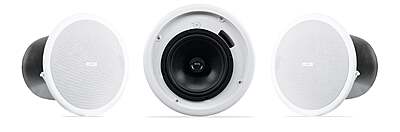

AC-C8T - 8-inch 2-way, 100 degree conical Ceiling Speaker
Features
High quality transducers provide exceptional clarity through the critical voice range.
Improved musicality often not seen in typical BGM class products.
Ported baffle for increased low frequency extension down to 52 Hz.
Low saturation 70/100V transformers with 8 ohm bypass.
4-pole Euroblock connector eases system wiring.
Intrinsic Correction™ voicings available via Q-SYS Platform.
White (RAL 9010).
Complete EASE, CF2, CAD, & BIM information available online.
Specifications | AC-C8T |
Effective frequency range | 52 Hz – 20 kHz |
Rated noise power / voltage | 80 watts / 25.3 volts (rms) |
Broad-band sensitivity | 89 dB SPL |
Coverage angle (-6 dB) | 100° (500 Hz to 5 kHz) |
Maximum continuous SPL | 108 dB |
Maximum peak SPL | 114 dB |
Rated impedance | 8 ohms |
Transformer taps: |
|
70 V: | 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass |
100V: | 60, 30, 15, 7.5 watts and 8-ohm bypass |
HF Transducer | 22 mm [.86-inch] silk dome tweeter, coaxially mounted |
LF Transducer | 210 mm [8-inch] Polypropylene cone with butyl rubber surround |
Input connector type | Euroblock connector with parallel output terminals |
Baffle material | Painted ABS polymer |
Grille material | Painted steel |
Back can material | Plated steel |
Testing | Listed UL1480, UL2043 safe for use in air handling space |
Net weight | 5.2 kg [11.5 lb] |
Product dimensions | Ø316 x 288 mm [Ø12.4 x 11.3-inch] |
Cut-out Dimensions | Ø285 mm [Ø11.2-inch] |
Ceiling Capture Thickness | 6 - 38 mm [0.25 - 1.5-inch] |
Shipping weight | 13.3 kg [29.3 lb] (pair packed) |
Shipping dimensions | 743 x 381 x 381 mm [29.3 x 15 x 15-inch] |
Included accessories | Rails & C-ring for ceiling tile installation |
Optional accessories | AC-MR8 mud ring for sheet rock installation |
