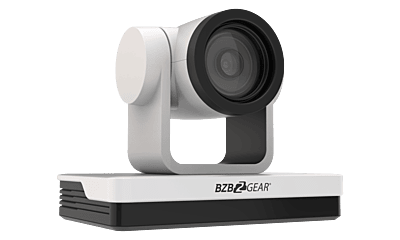

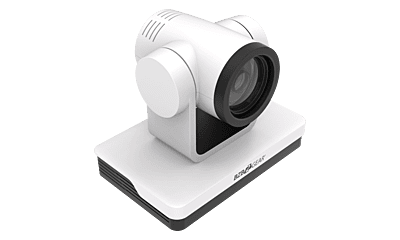

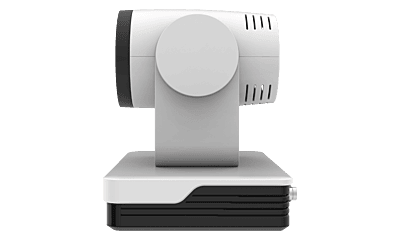

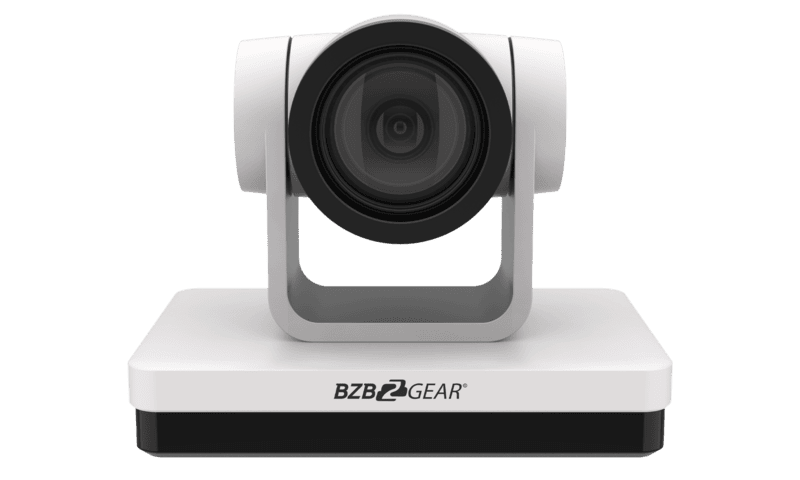

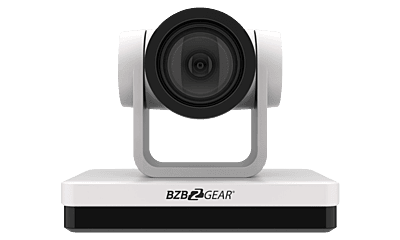

BG-UPTZ-30XHSU-W | Universal 1080P FHD PTZ 12X/20X/30X HDMI/SDI/USB 3.0/RS-232/485 Live Streaming Camera

The best-selling BG-UPTZ camera has been BZBGEAR’s most successful camera to date. With its crisp 1080p imaging, simultaneous USB 3.0, HDMI, 3G-SDI, and IP streaming video outputs all in a handsome yet subdued design, it is easy to see why this is the camera of choice for hospitals, universities, houses of worship, and performing arts centers worldwide.

Connectivity

The BG-UPTZ utilizes a 1/2.8” Sony CMOS sensor to capture images in resolutions as high as 1080p@60Hz. With 12X, 20X, and 30X zoom options, it’s an able performer in any size venue. The simultaneous HDMI, 3G-SDI, and USB 3.0 outputs ensure the BG-UPTZ can be integrated into any workflow.

Supporting ONVIF, RTSP, and RTMP video protocols, the BG-UPTZ is compatible with most video production software and is able to stream directly to streaming platforms like YouTube, Twitch, and Facebook. A 3.5mm input jack allows external microphones and audio systems to be embedded into the video stream.

Control

The BG-UPTZ features an onboard dial that allows users to lock the output resolution, eliminating potential resolution discrepancies before they happen. The camera can be controlled via IR remote, IP control (IP VISCA, ONVIF), and the browser interface. The RS232 and RS485 serial connections support VISCA, PELCO-D, and PELCO-P protocols. Up to 255 camera preset positions can be stored, ten of which are available via the IR remote control.

This camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

Features

• Zoom Available in 12x/20x/30x optical zoom
  +10x digital
• Control IP, IR, and cascadable RS232/485 (VICSA/Pelco) + 255 preset positions
• Multiple Video Outputs HDMI, 3G-SDI, USB 3.0, and IP-streaming working simultaneously
• Latest Streaming Tech Supports H.264/H.265 video compression and RTMP(S)
• Superb Auto Focus Auto focusing algorithms resulting in quick, accurate, and stable focus
• Power over Ethernet Delivers power directly over an ethernet cable

• 1/2.8" 2.07MP low-noise CMOS
• Quiet, high-quality step motor
• Pristine image quality
• FOV between 56° & 72.5° (dependent on zoom)
• Resolutions up to 1080p@60Hz
• Network protocols ONVIF, RTSP, RTMP / RTMP(S)
• 3.5mm stereo audio input
• Shutter speed 1/1~1/10,000s
• Available in white, silver, or black color
