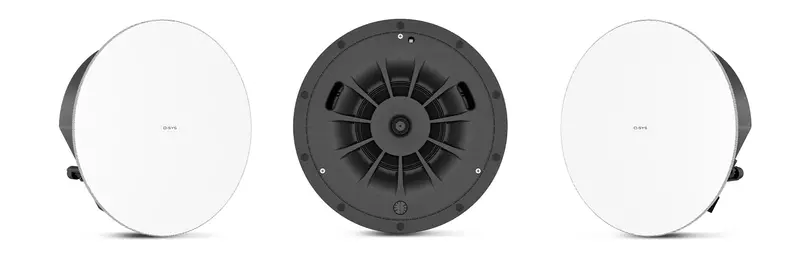

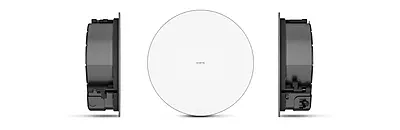

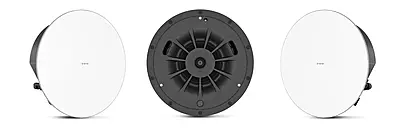

AD-C6T-LPZB-WH
Features
Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
Sleek zero bezel design for modern architectural needs
Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Low-saturation and low-loss 70/100V transformers with 16Ω bypass
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified
Available in signal white (RAL 9003), with black grille accessory sold separately
Complete EASE, CAD, & BIM information available online
SPECIFICATIONS | AD-C6T-LPZB |
Effective frequency range1 | 65 Hz – 20 kHz |
Rated noise power / voltage2 | 60 watts / 31 volts (rms) |
Sensitivity [dB]3 | 88 TBD |
Rated coverage (-6 dB)4 | 135° conical DMT™ |
Directivity factor (Q) | 6.5 |
Directivity index (DI) [dB] | 8 |
Maximum continuous SPL [dB]5 | 106 |
Maximum peak SPL [dB]5 | 112 |
Nominal impedance [ohms] | 16 |
Transformer taps / impedance | 16Ω (in bypass setting) |
LF transducer | 165 mm [6.5-inch] weather resistant paper cone woofer |
HF transducer | 19 mm [0.75-inch] aluminum dome tweeter |
Input connector type | Euroblock connector with parallel output |
Enclosure material | ABS baffle on powder coated steel back can |
Grille material | Powder coated steel |
Ingress protection | IP-34 |
Operating environment | Designed for indoor use |
Operating temperature range | -20 to 50° C [-4 to 122° F] |
Cutout dimension | Ø 305 mm (Ø 12 in) |
Net weight | 4.3 kg [9.5 lb] |
Product dimensions (Diameter x Height) | Ø 340 x 100 mm [Ø 13.37 x 3.95-inch.] |
Shipping weight | 12.6 kg [27.8 lb] (pair packed) |
Shipping dimensions (H x W x D) | 178 x 864 x 470 mm (7 x 34 x 18.5 in), pair packed |
Included accessories | C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
Optional accessories | AD-MR8 (pre-install mud ring), 305 mm cutout size |
Safety Agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
1 Half Space, -10dB from on-axis sensitivity
2IEC60268-5 50hz high passed noise at 2 Hrs, 16Ω
3 Free-field, on-axis, 2.83V, 1m
4-6 dB from on-axis, 500 Hz–5 kHz average
5Calculated from rated noise voltage and sensitivity
