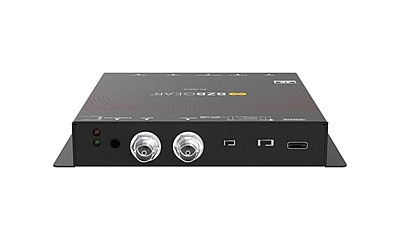

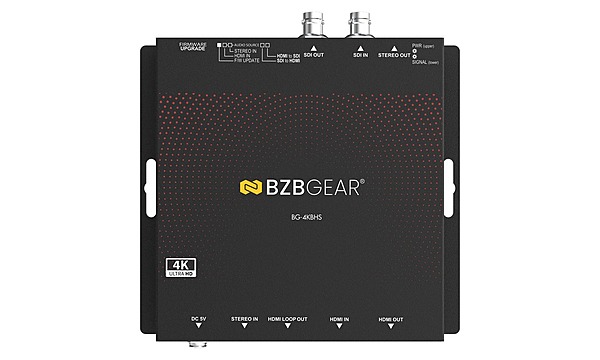

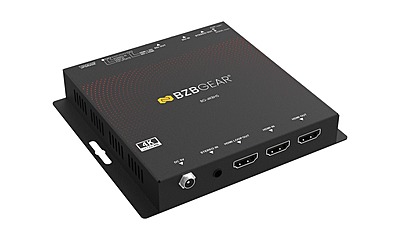

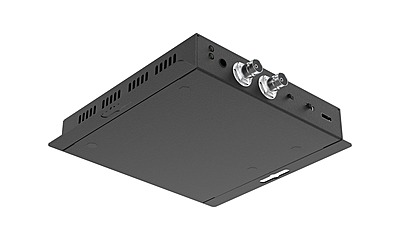

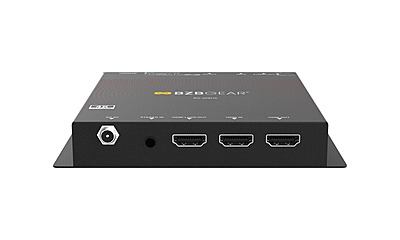

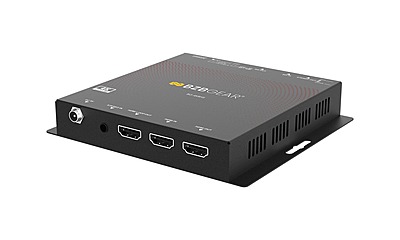

BG-4KBHS - 12G-HD-SDI Bi-Directional Converter with Audio embedding and extraction
Overview
The BG-4KBHS is a professional-grade 12G/6G/3G/HD-SDI and HDMI 2.0 bi-directional converter featuring integrated audio embedding and extraction. Designed for uncompromising signal quality and reliability, this converter enables seamless real-time conversion between HDMI and SDI formats without latency or signal loss. Supporting full digital conversion, it maintains uncompressed, lossless video and audio for pristine broadcast performance.
With support for up to 8 audio channels, including 7.1 and 5.1 surround sound, and a high-quality analog stereo embedder and extractor, the BG-4KBHS bridges professional SDI systems with consumer HDMI devices in a single, versatile solution. Its low-jitter SDI output, automatic signal detection, and broad video format support up to 4K@60Hz make it a reliable tool for broadcast studios, post-production, and AV integration environments demanding flexible and high-fidelity signal management.
Features
Supports HD & UHD Formats720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.97/24/25/29.97/30/50/59.94/60Hz, 4K2K@23.98/24/25/29.97/30/50/59.94/60Hz
High Bit Rate SupportHandles SDI bit rates of 270 Mbps up to 11.88 Gbps, including fractional rates for broadcast compatibility
Audio Channel SupportSupports up to 8 audio channels, including 7.1 and 5.1 surround sound
Analog Stereo Embedder & ExtractorProvides high-quality analog audio embedding and extraction for flexible audio routing
Real-Time Bi-Directional ConversionConverts HDMI to SDI and SDI to HDMI without latency or quality loss
Auto SDI DetectionAutomatically detects and switches between 12G, 6G, 3G, and HD-SDI signals
- Video & Audio Integrity: Maintains uncompressed, lossless digital video and audio throughout the conversion process
- Multi-Format Compatibility: Compatible with professional SDI equipment and consumer HDMI devices for versatile workflow integration
- Compact & Rack-Mountable Design: Optimized for studio and field applications requiring space-efficient hardware
- HDMI Support: Fully compatible with HDMI 2.0 and lower versions for flexible source integration
- Low-Jitter SDI Output: Ensures stable and reliable SDI signal transmission for professional video workflows
