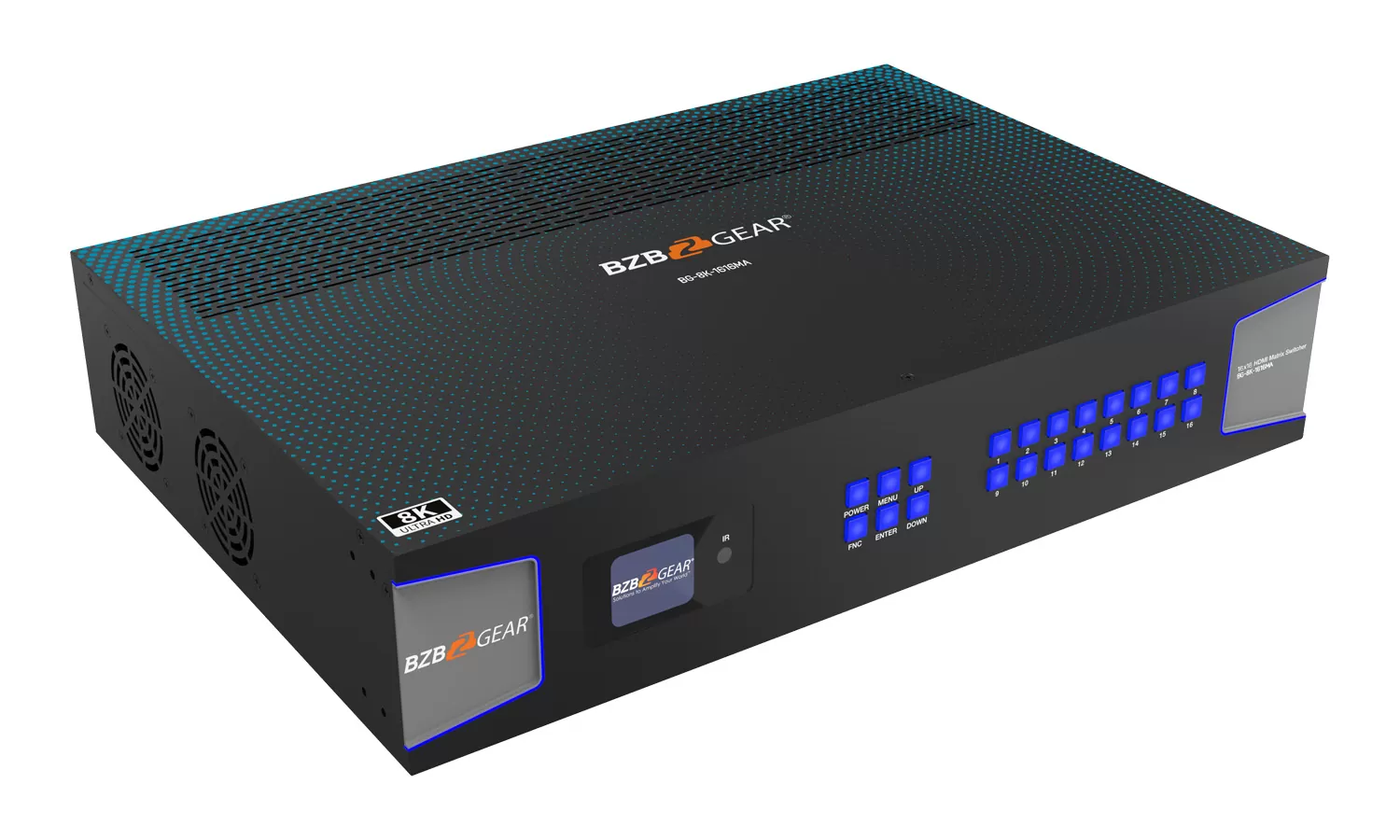

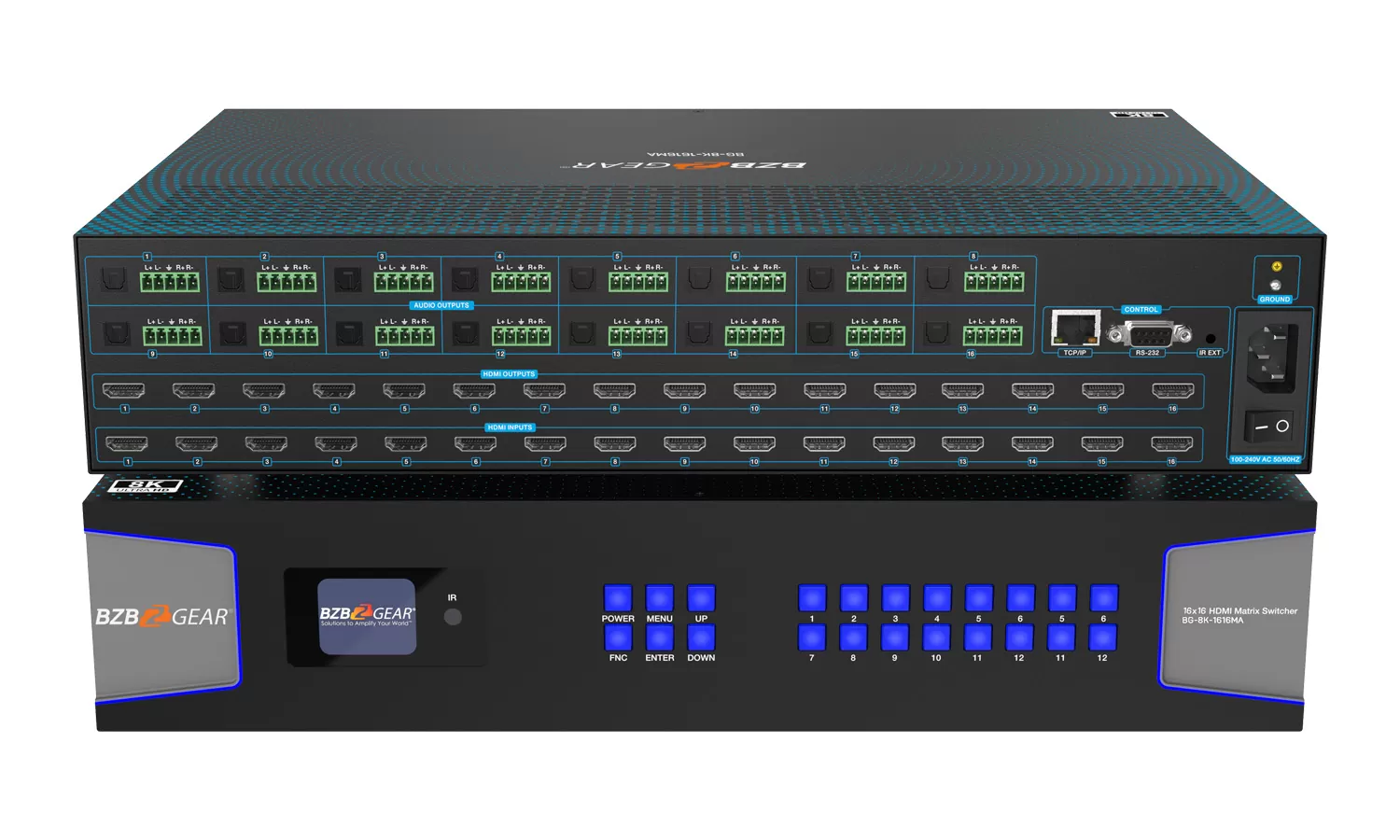

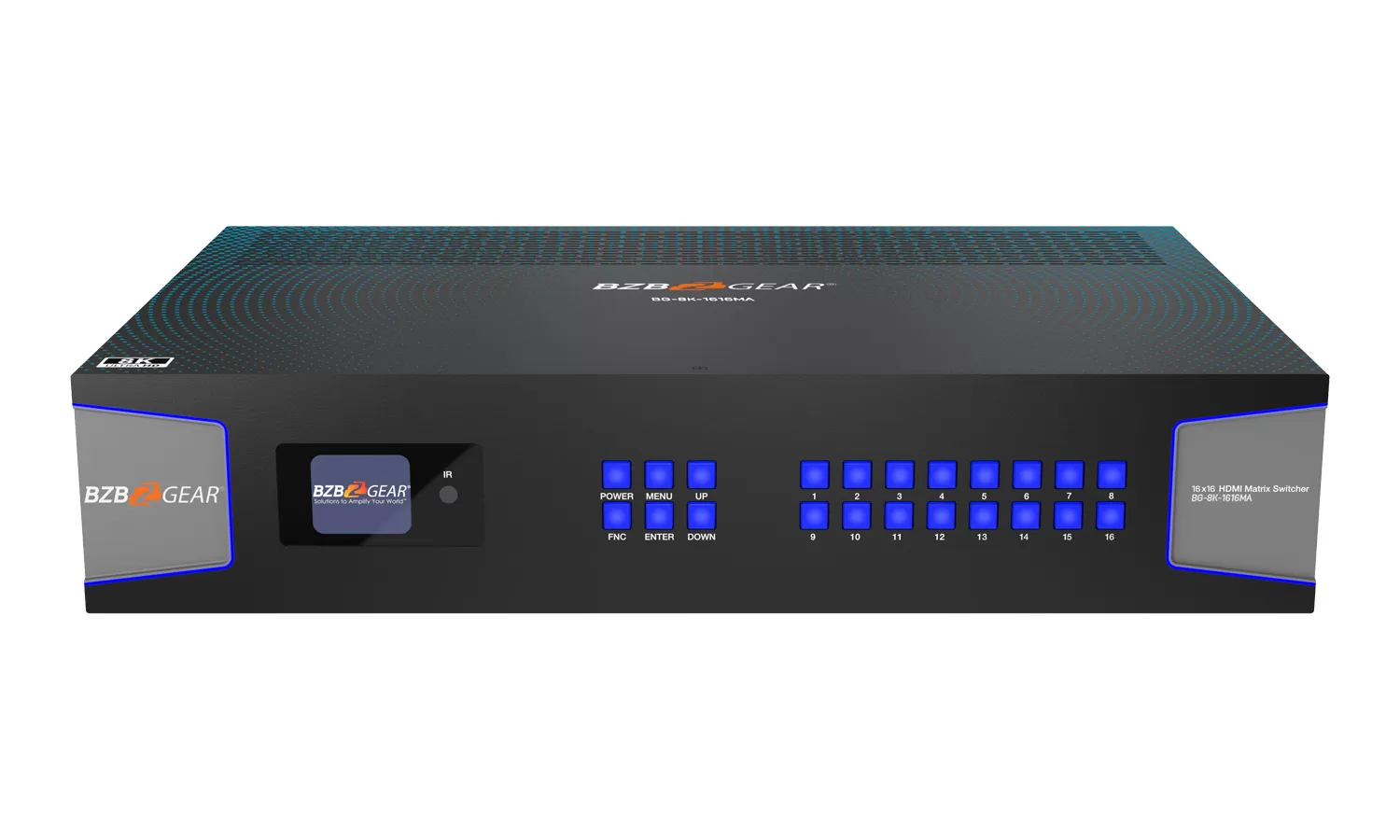

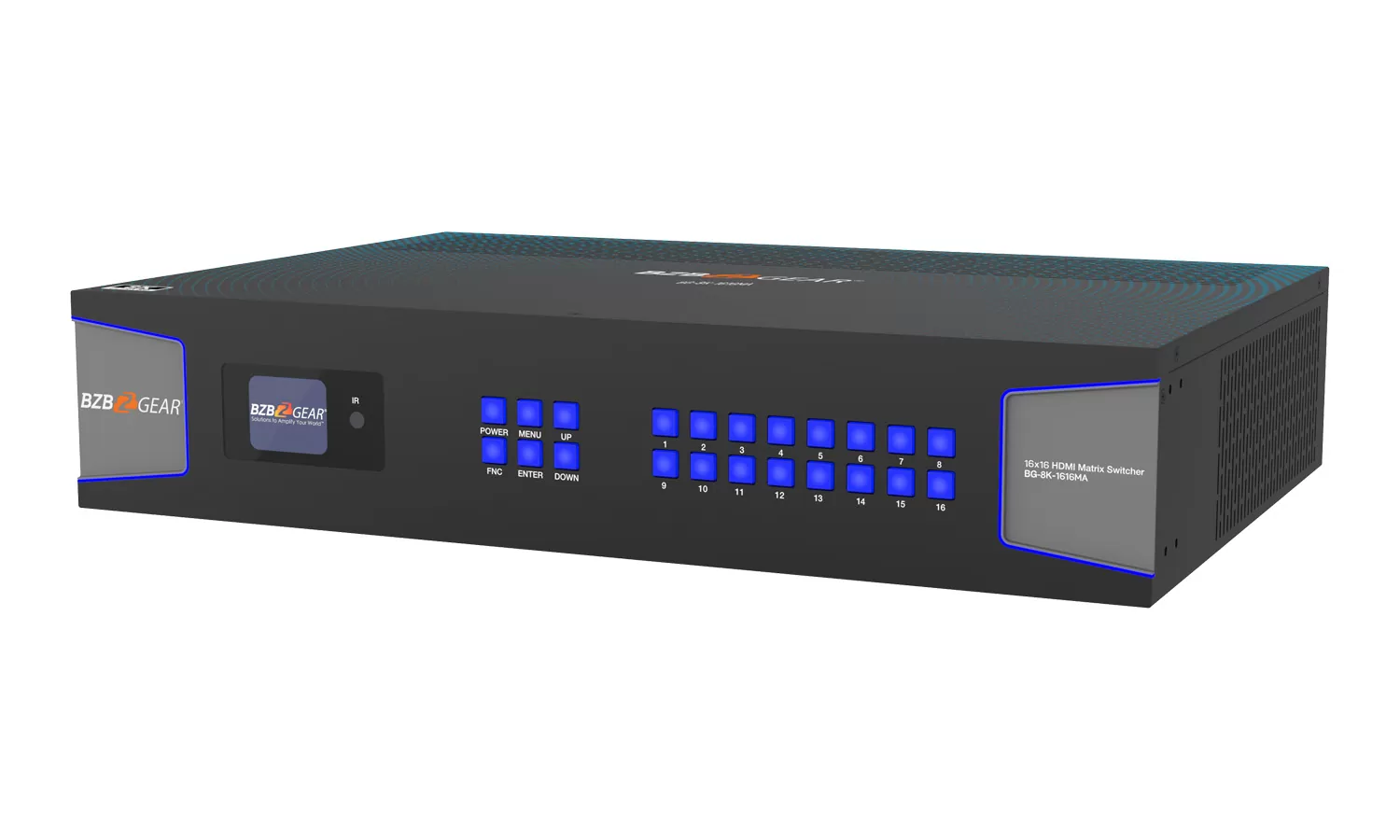

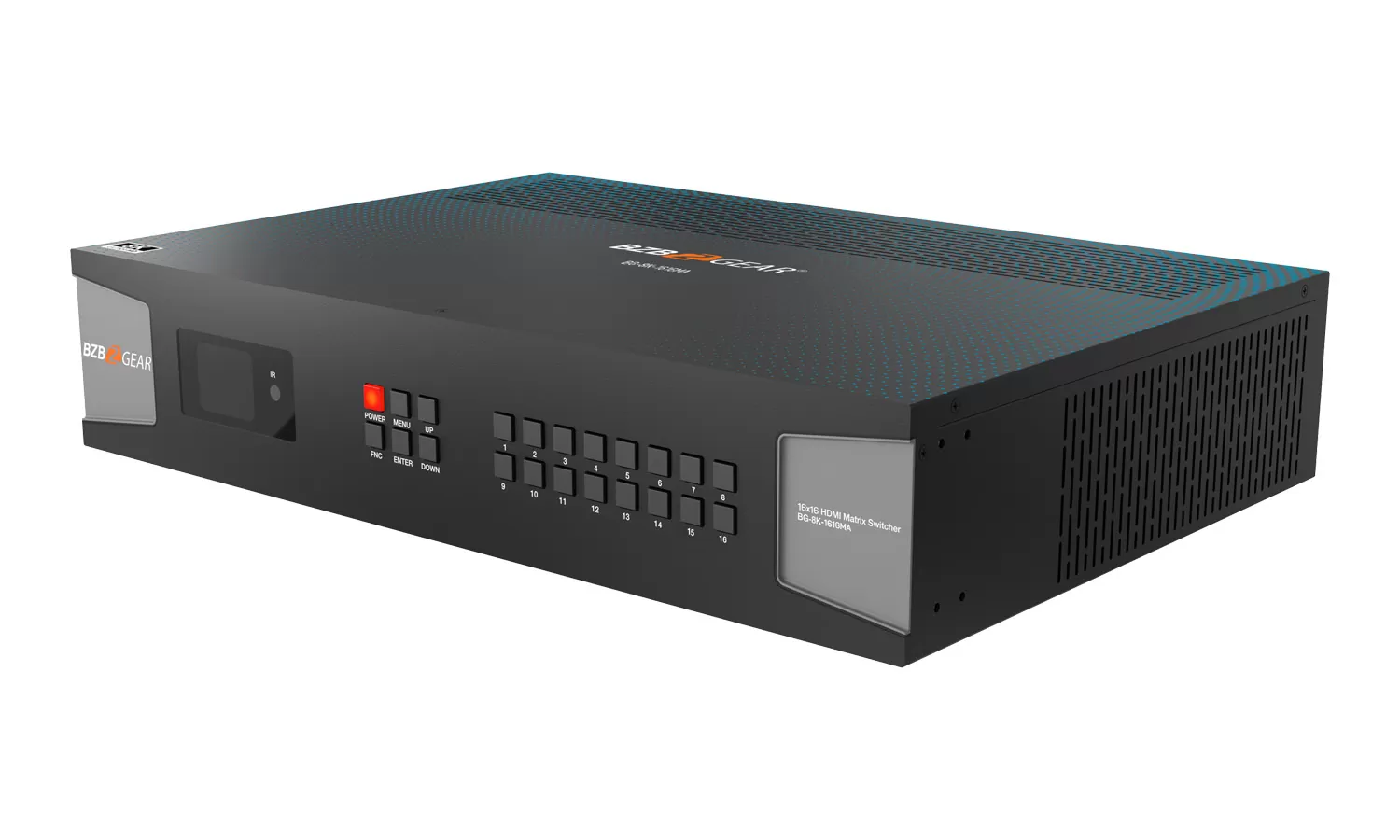

BG-8K-1616MA | 16x16 8K UHD HDMI 2.1 Matrix Switcher with Auto Downscalling/Audio De-embedder (8K60/4K120 4:4:4 and VRR/FVA/ALLM Support)
Overview
The BG-8K-1616MA 8K HDMI matrix switch is an excellent device for situations where you need to share up to sixteen HDMI sources with up to sixteen displays. It comes with sixteen HDMI 2.1a inputs and sixteen HDMI 2.1a outputs, allowing you to switch between multiple sources and display them on various screens at the same time, or select one source and display it on all screens simultaneously with the push of a button. The device supports 8K resolutions and various high-quality audio formats, ensuring professional-grade picture and audio quality.
Play Games at 4K@120Hz!
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-1616MA can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 16x16 matrix switcher's support for 4K at 120Hz can help you get the most out of your favorite games.
echnical | |
HDMI Compliance | HDMI 2.1 |
HDCP Compliance | HDCP 2.3 |
Video Bandwidth | 1200MHz/48Gbps |
Video Resolution | Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 |
Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
Color Depth | 8/10/12-bit |
HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
Audio Formats | HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS High Res, DTS-HD Master Audio, DSD Optical Outputs: LPCM 2.0, Dolby, DTS 5.1 Balanced Analog Audio Outputs: LPCM 2.0 |
ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
Connection | |
Input ports | 16x HDMI [Type A, 19-pin female] |

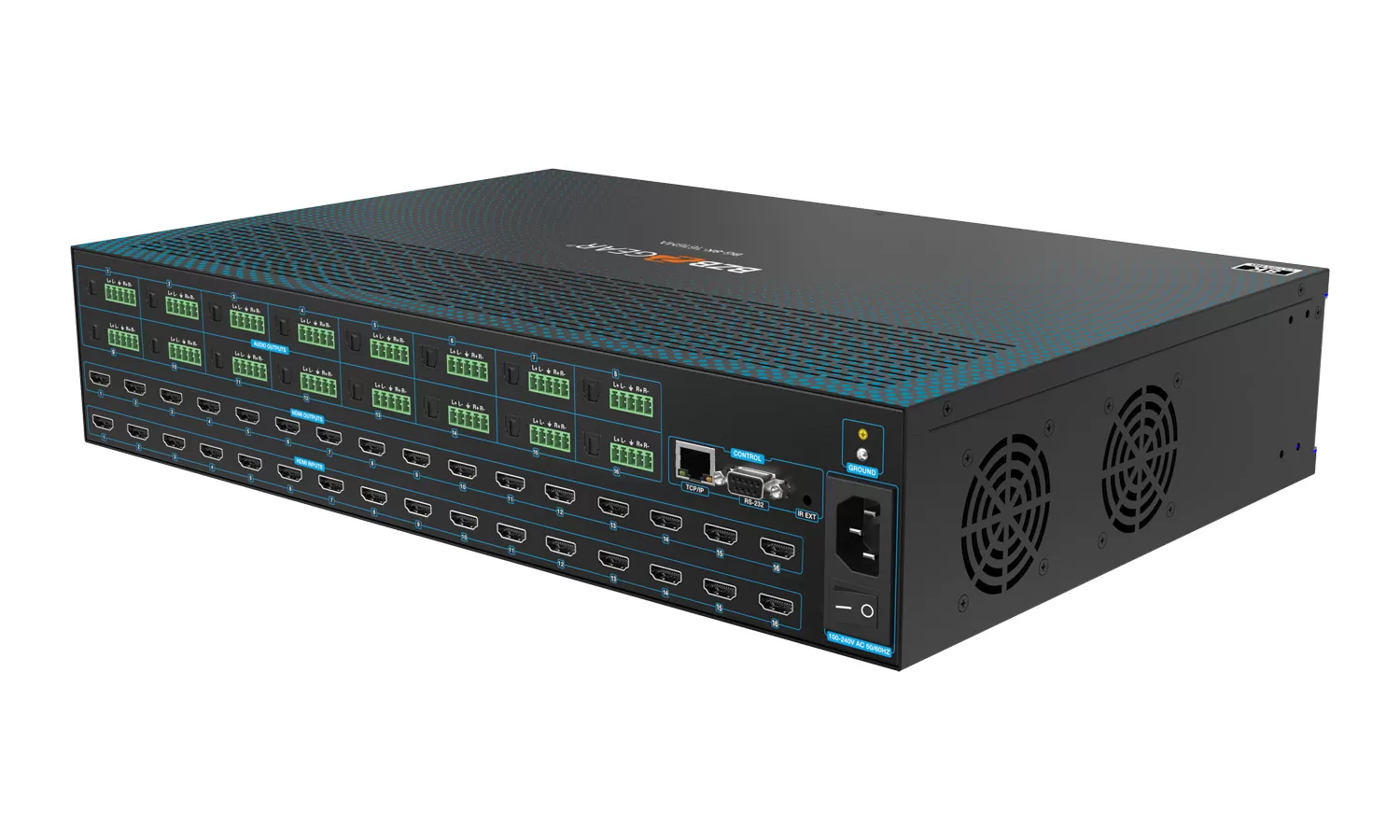

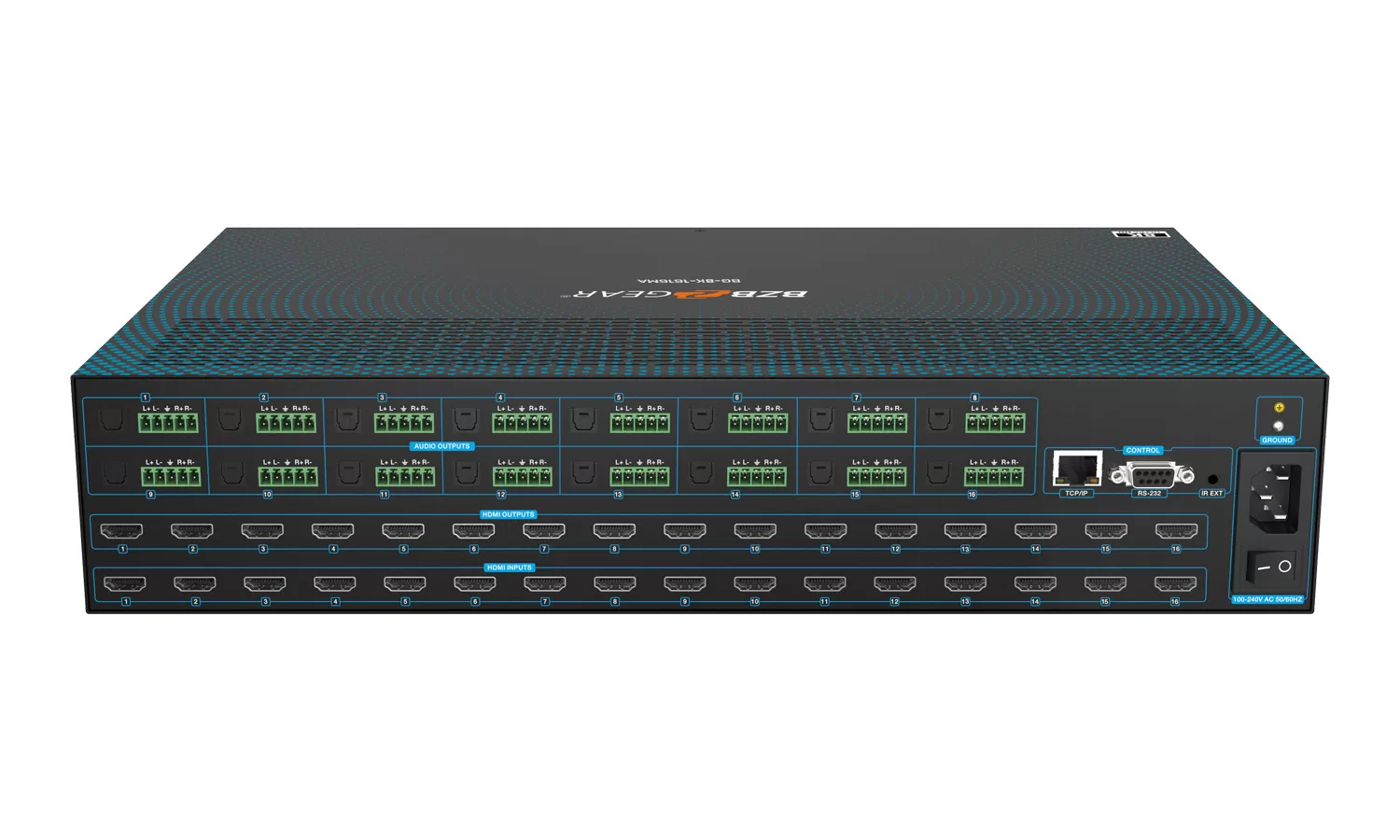

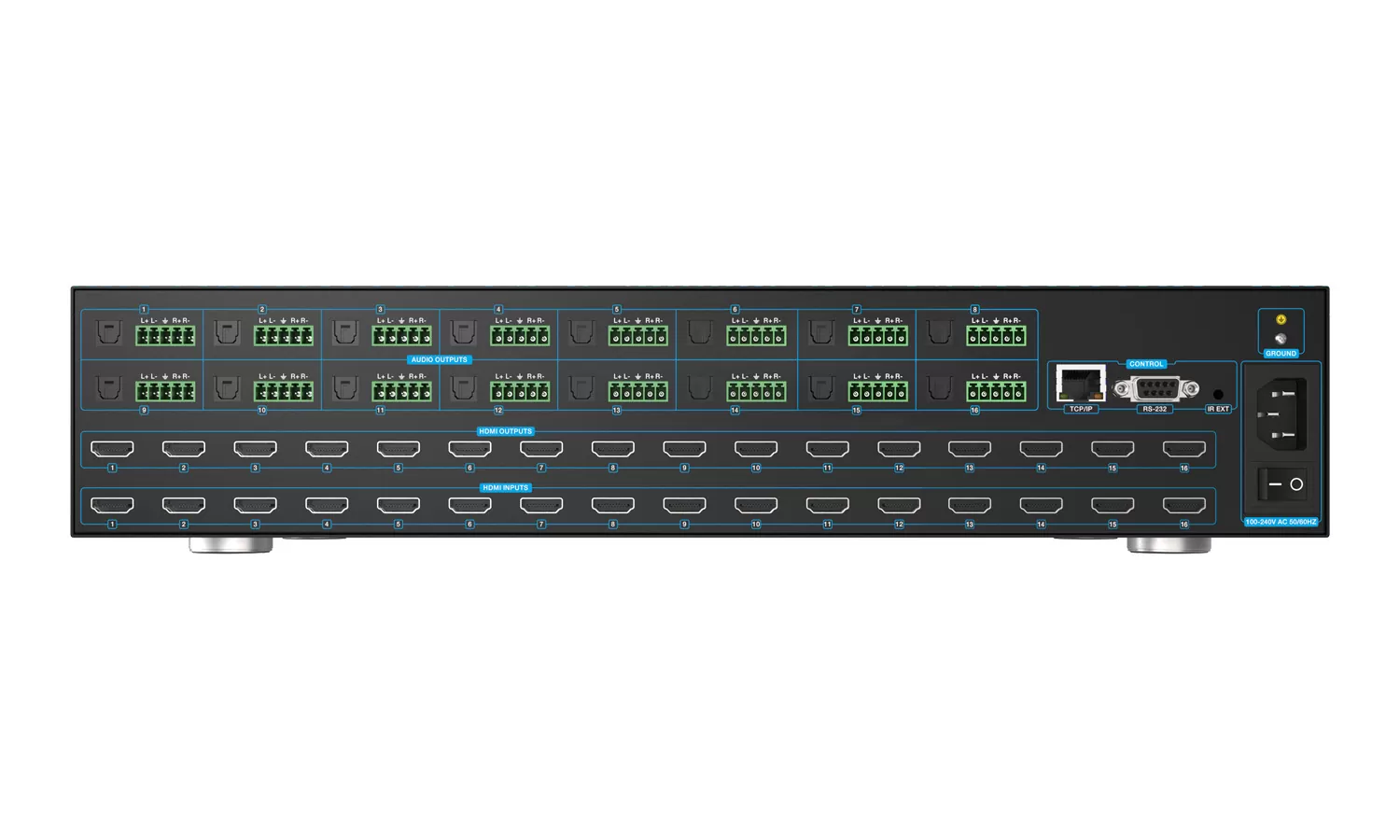

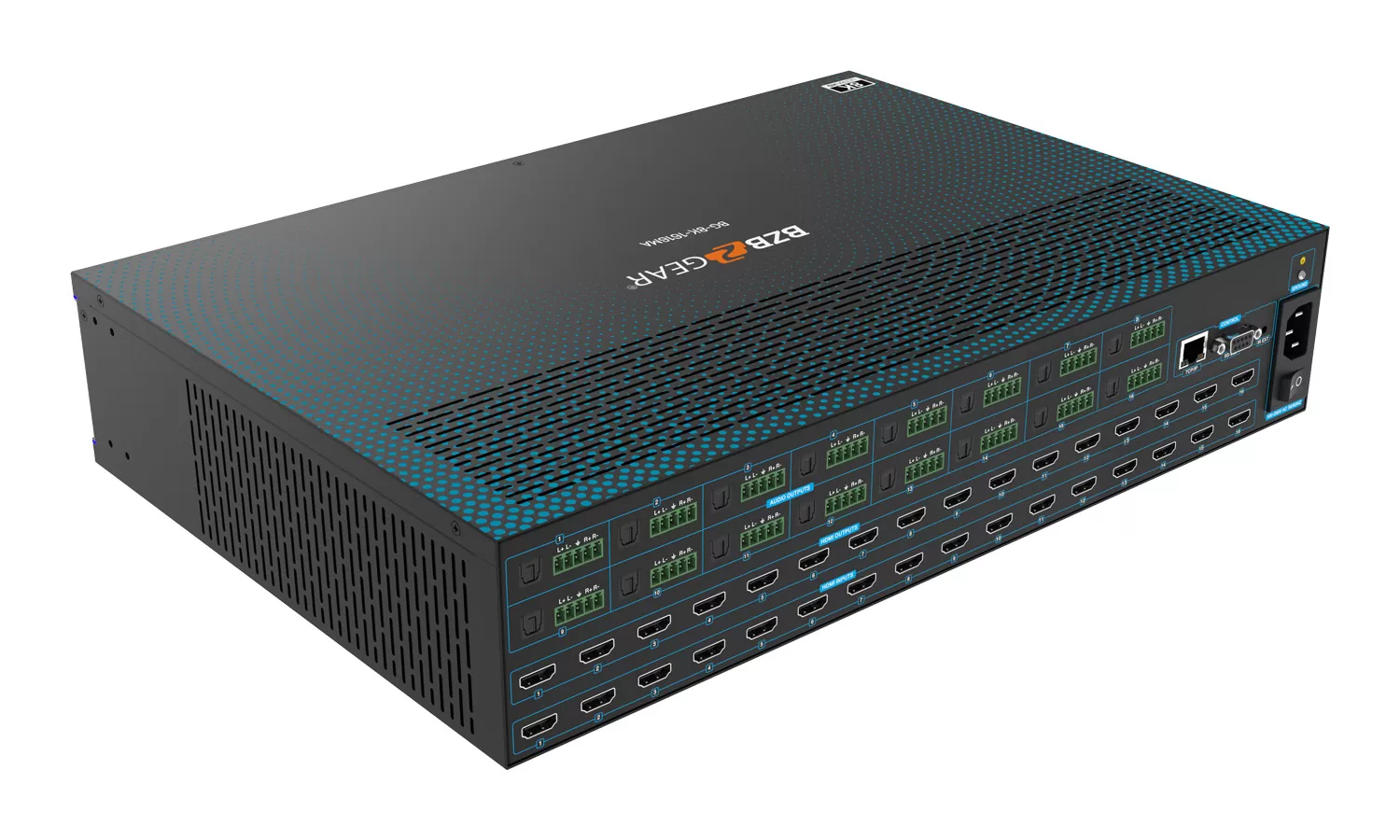

Output ports | 16x HDMI [Type A, 19-pin female] 16x S/PDIF Optical 16x Balanced Stereo Audio [3.81mm, 5-pin Phoenix Connector] |
Control ports | 1x TCP/IP [RJ45] 1x RS-232 [D-Sub 9] 1x IR EXT [3.5mm, Stereo Mini-jack] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Operating Temperature | 32 - 104°F / 0 - 40°C |
Storage Temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no-condensing) |
