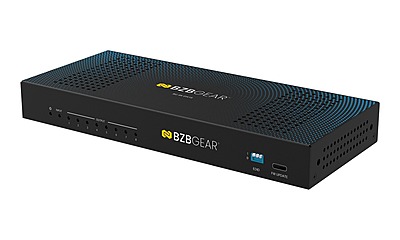

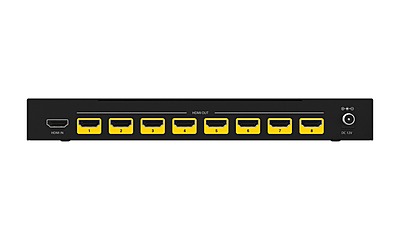

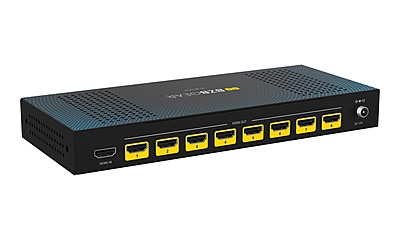

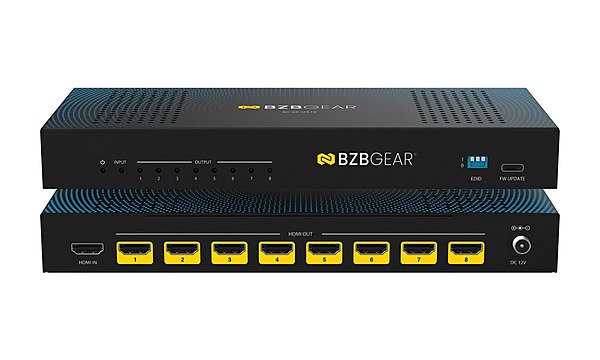

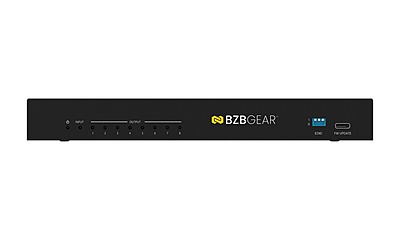

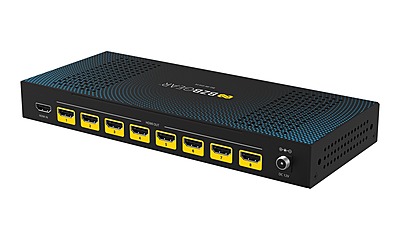

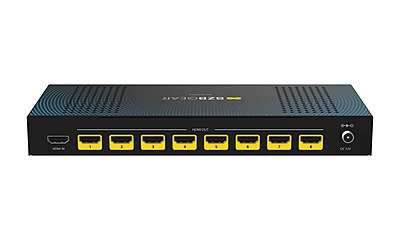

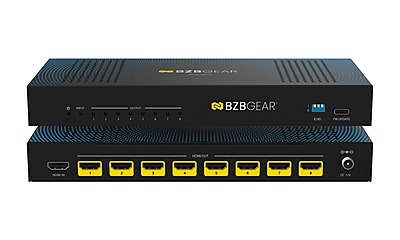

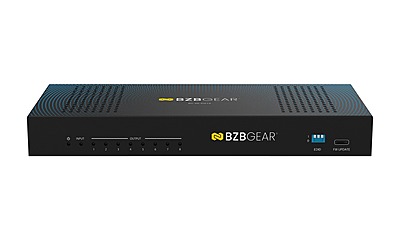

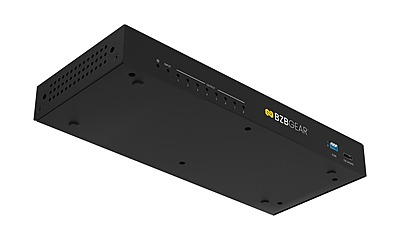

BG-8K-DA18 | 1x8 8K HDMI 2.1 Splitter 8K60/4K120
Overview
The BG-8K-DA18 is a high-performance 1x8 HDMI splitter designed to distribute a single HDMI source to up to eight displays simultaneously with uncompromised video and audio quality. Supporting resolutions up to 8K@60Hz (4:2:0 12-bit) and 4K@120Hz (4:4:4 12-bit), this splitter is fully compliant with HDMI 2.1 and HDCP 2.3 standards, delivering ultra-high-definition content with rich color depth and dynamic range.
Engineered for next-generation devices like Xbox Series X and PlayStation 5, the BG-8K-DA18 offers seamless playback at 4K@120Hz, making it ideal for gaming, home theater, and professional AV setups. With support for 48Gbps FRL, VRR, ALLM, QMS, and QFT, it ensures fluid motion and low latency. Advanced features such as EDID management, HDR-to-SDR conversion, and auto downscaling per output simplify integration across mixed-resolution displays.
Features
Ultra-High ResolutionsSupports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) per HDMI 2.1 specifications
Gaming and Motion EnhancementsSupports VRR, ALLM, QMS, QFT, and SBTM for smoother visuals and reduced latency
HDR Format CompatibilityPass-through support for HDR, HDR10, HDR10+, Dolby Vision, and HLG
Advanced Audio SupportCompatible with LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio formats
Per-Port DownscalingAutomatically downscales resolution on each output to match connected displays
HDR to SDR ConversionAutomatically converts HDR content to SDR on each output for non-HDR displays
- HDCP 2.3 Compliant: Ensures secure content transmission across all connected devices
- High-Bandwidth Support: Handles up to 48Gbps FRL and 18Gbps TMDS video bandwidth
- Comprehensive EDID Management: Enables precise control over display communication and compatibility
