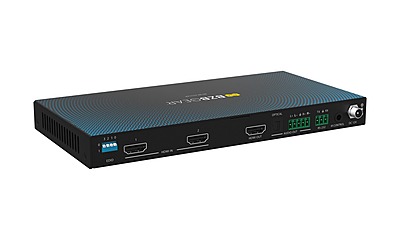

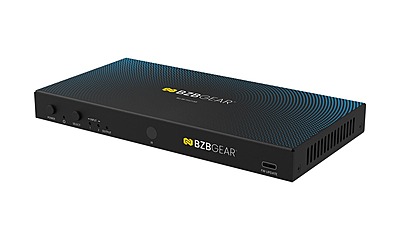

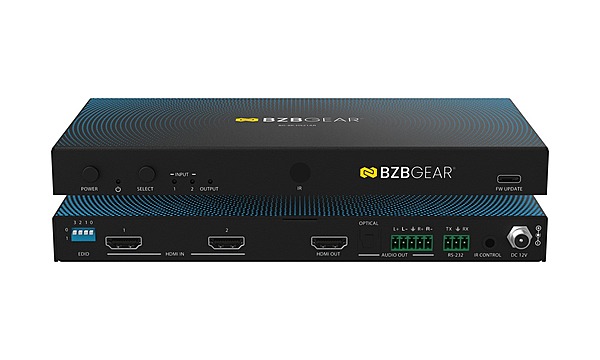

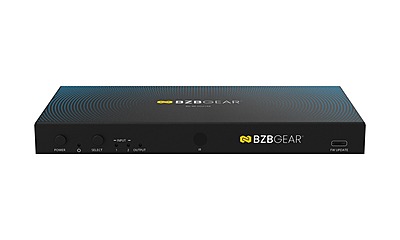

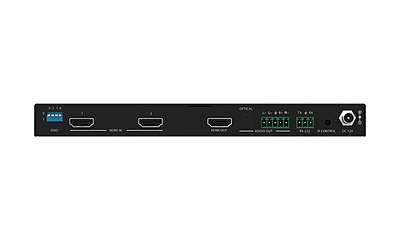

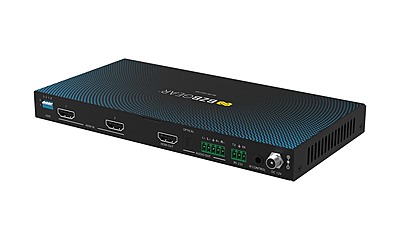

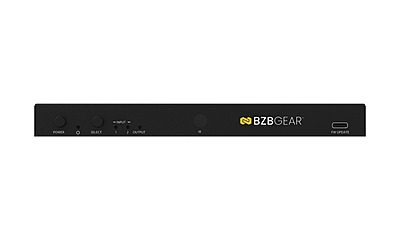

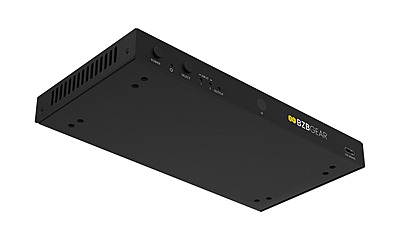

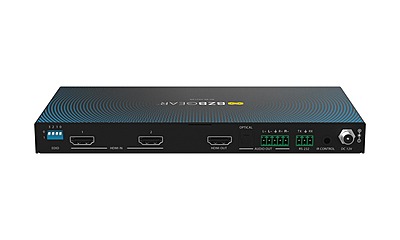

BG-8K-HS21AR | 2x1 8K UHD HDMI 2.1 Switcher 8K60/4K120
Overview
The BG-8K-HS21AR is a high-performance 2×1 HDMI switcher designed to seamlessly switch between two 8K HDMI sources and deliver crystal-clear video to a single 8K display. Supporting resolutions up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, and 4K@120Hz 4:4:4 12-bit, this device ensures stunning visual quality in compliance with the HDMI 2.1 and HDCP 2.3 standards. Full compatibility with HDR10, HDR10+, Dolby Vision, and ALLM/VRR pass-through guarantees exceptional color performance and dynamic range for a premium viewing experience.
Beyond video switching, the BG-8K-HS21AR features digital and analog audio de-embedding, offering analog audio output with gain control. A built-in HDMI signal generator simplifies troubleshooting and diagnostics, while advanced EDID management and integrated signal equalization ensure stable and reliable signal transmission. Users can operate the device through front panel buttons, an IR remote, or RS-232 API commands, with auto or manual switching modes for added flexibility.
Features
- 8K & 4K120 SupportUp to 8K@60Hz YCbCr 4:2:0 12-bit, 8K@30Hz RGB/YCbCr 4:4:4 12-bit, and 4K@120Hz RGB/YCbCr 4:4:4 12-bit
- HDMI Audio FormatsLPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS 96/24, DTS High-Resolution Audio, DTS-HD Master Audio, and DSD
- Flexible Switching ModesSupports both automatic and manual input switching
- Multiple Control OptionsControl via front panel buttons, IR remote, and RS-232 API commands
- Versatile Audio De-EmbeddingExtracts both digital and analog audio with analog output featuring adjustable gain control
- HDR Pass-ThroughCompatible with HDR, HDR10, HDR10+, Dolby Vision, ALLM (Auto Low Latency Mode), and VRR (Variable Refresh Rate)
- HDCP 2.3 Compliant: Ensures secure transmission of protected content
- Enhanced Signal Integrity: Equipped with built-in equalization, retiming, and signal driving capabilities
- Advanced EDID Management: Offers flexible EDID handling for optimal device compatibility
- Compact and Install-Friendly Design: Designed for easy integration into a variety of professional AV environments
