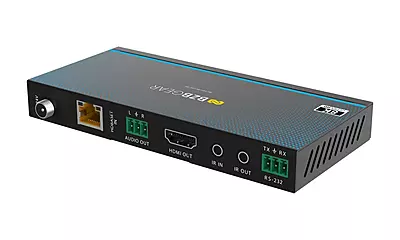

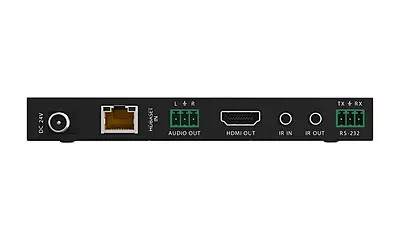

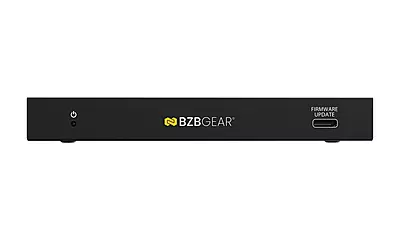

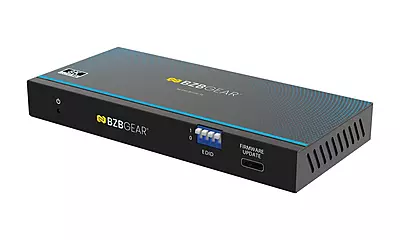

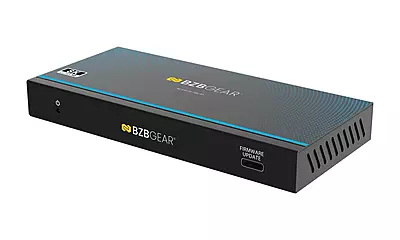

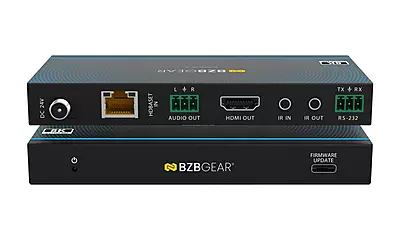

BG-EXH-8K150C | 8K UHD HDMI HDBaseT Long Range Extender with IR/RS232

Features

•
  8K & 4K Long-Distance Transmission
  Transmits 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) signals up to 90m (295ft), 4K@60Hz up to 120m (394ft), and 1080p up to 150m (492ft) via CAT cable for reliable, long-range performance
•
  HDMI 2.1 & HDCP 2.3 Compliance
  Fully compliant with the latest HDMI and content protection standards, ensuring secure and consistent transmission across all compatible devices

•
  Ultra-High Bandwidth Support
  Delivers up to 40Gbps FRL and 18Gbps TMDS, supporting next-generation 8K and high-frame-rate 4K video without signal loss or latency
•
  Comprehensive Control Integration
  Supports bi-directional IR, RS-232, and CEC pass-through, enabling full device control and automation through a single cable connection
•
  Advanced Audio & HDR Support
  Handles top-tier audio formats like Dolby Atmos, DTS-HD Master Audio, and TrueHD, plus HDR formats including HDR10, HDR10+, Dolby Vision, and HLG for vivid, lifelike visuals
•
  Power over Cable (PoC)
  Simplifies installation by providing bi-directional PoC, allowing both units to be powered through one connection, reducing setup time and power supply requirements

• Broad Resolution Compatibility: Supports video resolutions from VGA to 8K@30Hz, covering both legacy and cutting-edge displays
• HDMI Re-clocking: Improves signal stability, resolves HDCP issues, and ensures consistent performance over long distances
• Audio De-embedding: Extracts analog audio output on both the transmitter and receiver for flexible audio routing
• Gaming Optimization: Supports VRR, FVA, and ALLM for ultra-smooth, tear-free gameplay experiences
• Professional-Grade Reliability: Designed for use in professional AV installations, conference rooms, control systems, and high-end entertainment setups
• User-Friendly Setup: Plug-and-play functionality with intuitive connection indicators ensures easy installation and maintenance
