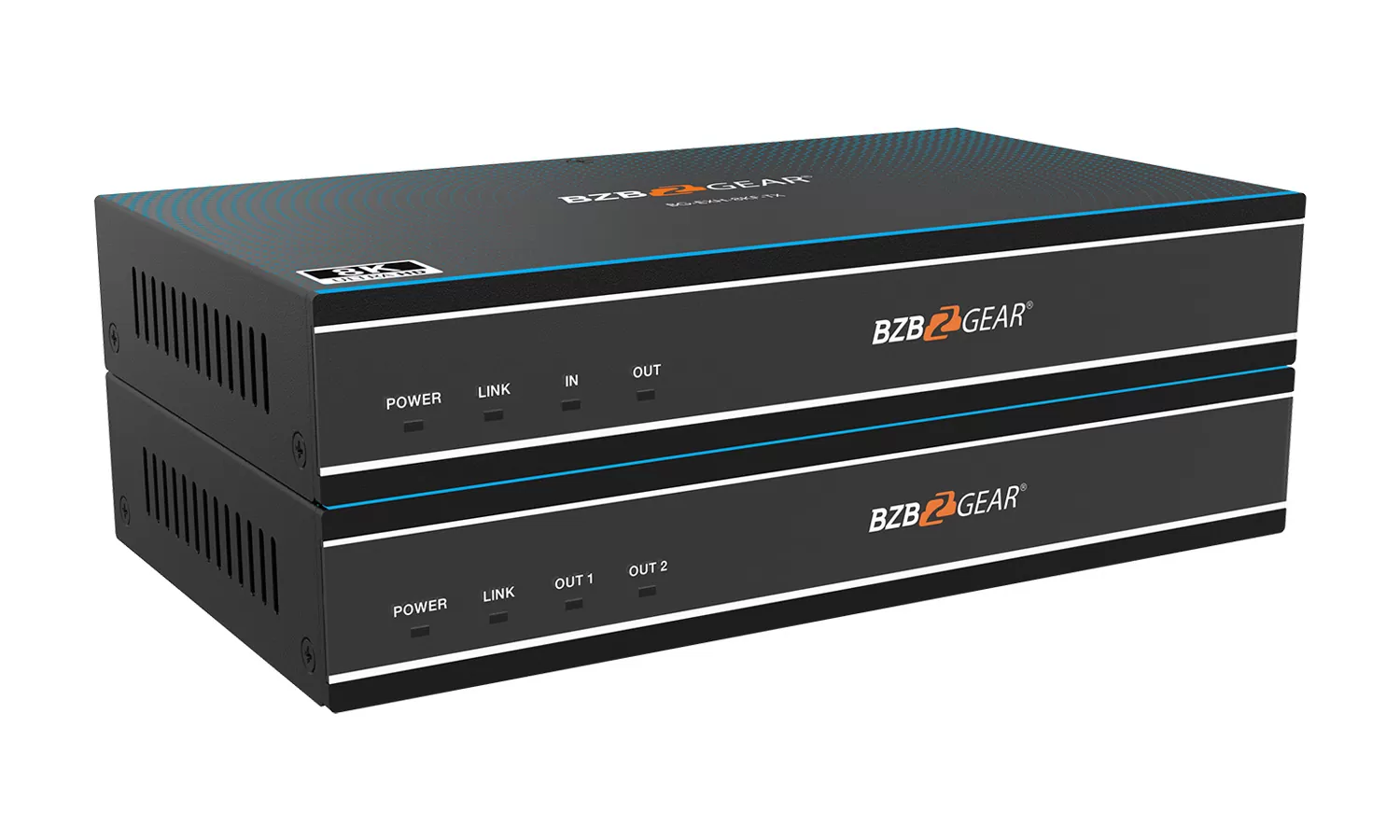

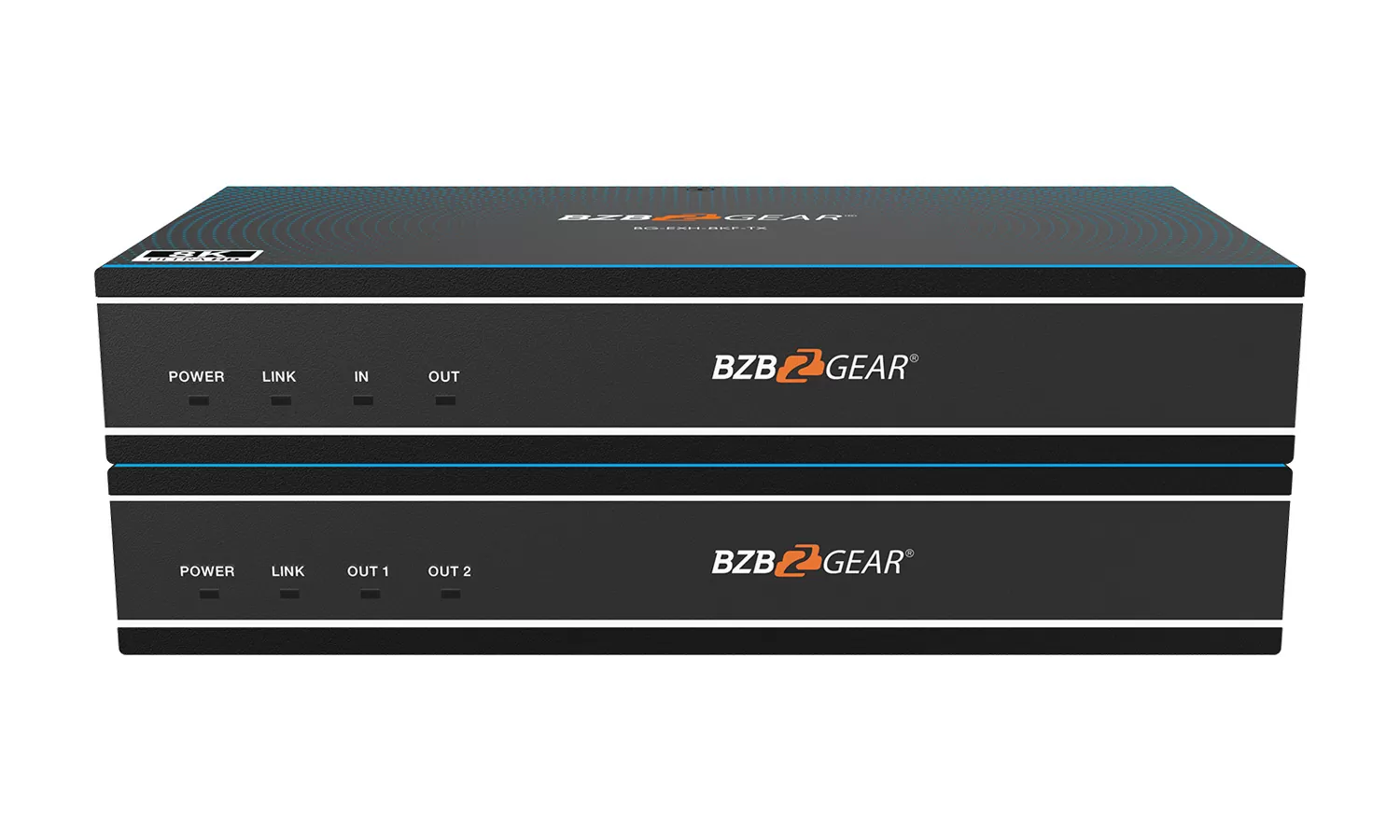

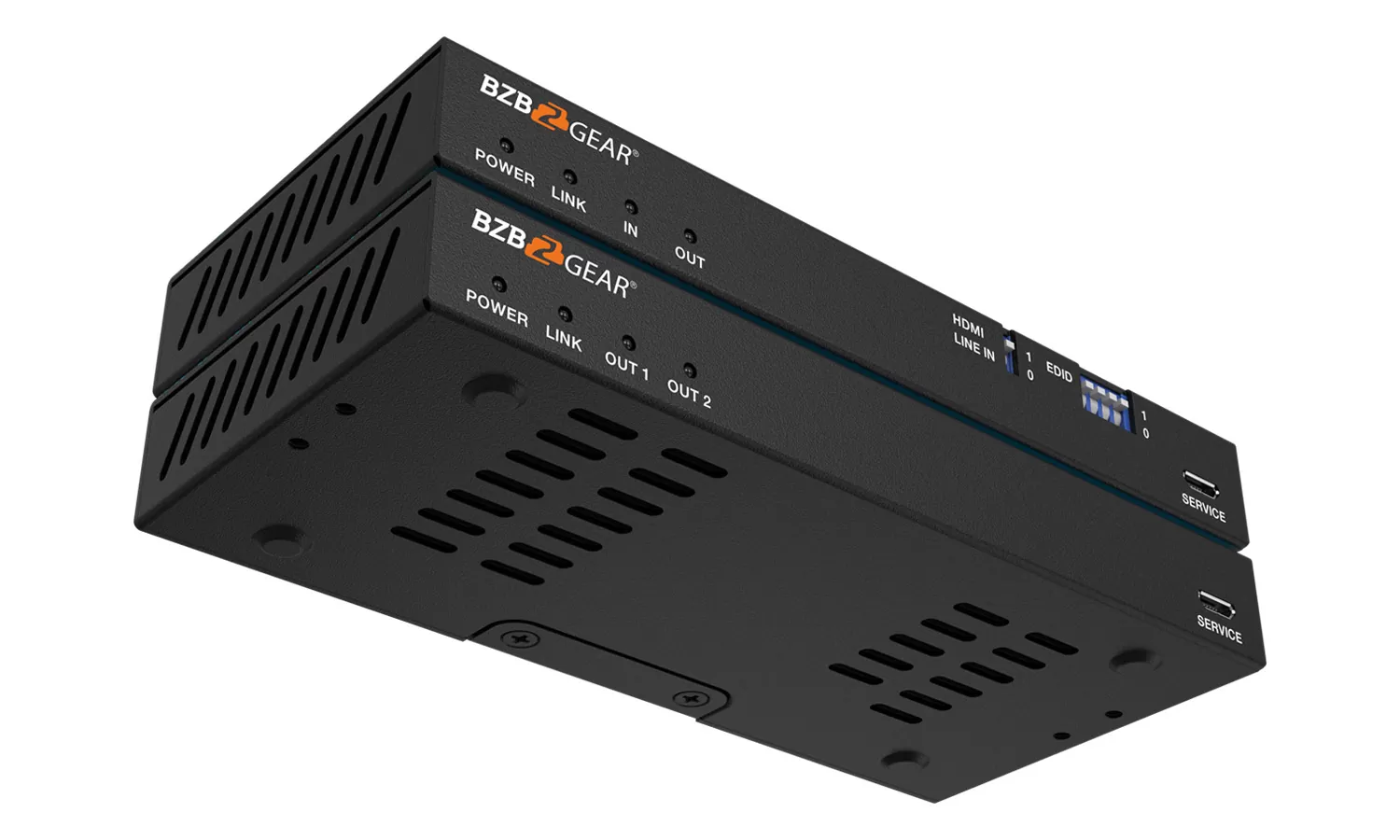

BG-EXH-8KF | 8K UHD HDMI 2.1 Over Fiber Extender - 8K60/4K120Hz with IR/RS-232/EDID Manager
Introducing the BG-EXH-8KF, a cutting-edge HDMI over Fiber extender that redefines your audiovisual experience. This advanced extender is HDMI 2.1 and HDCP 2.3 compliant, ensuring seamless connectivity and support for the latest technologies.
The BG-EXH-8KF HDMI over Fiber extender is a cutting-edge solution that caters to gamers, home theater enthusiasts, and professional integrators alike. With support for advanced gaming features like VRR, ALLM, QMS, QFT, and SBTM, gamers can enjoy a seamless and immersive experience. Home theater enthusiasts benefit from unparalleled video quality, including 8K@60 4:2:0 12bit and 4K@120Hz 4:4:4 12bit video transmission, along with comprehensive HDR support for vivid visuals.
Professional integrators appreciate its flexibility with compatibility across multimode fiber grades, auto-downscaling features, and versatile audio format support. Designed for hassle-free installation, the extender allows HDMI signal extension up to 300 meters, ensuring uncompromised quality and reliability.
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit | |||
| Color Space | RGB 4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| Color Depth | 8/10/12-bit | |||
| Audio Formats | HDMI IN/OUT: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X; AUDIO BREAKOUT: L/R OUT: PCM 2.0CH | |||
| Optical Fiber Transmission Distance | OM2: 40m/131ft OM3: 200m/656ft OM4: 300m/985ft (over 850nm OM2/3/4 multi-mode fiber optic cable) | |||
| IR Level | IR IN: 12V; Level: 3.2.04.00219 IR OUT: 5V; Level: 3.2.04.00093 | |||
| IR Frequency | Wideband 20K-60KHz | |||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) | |||
| Connection | ||||

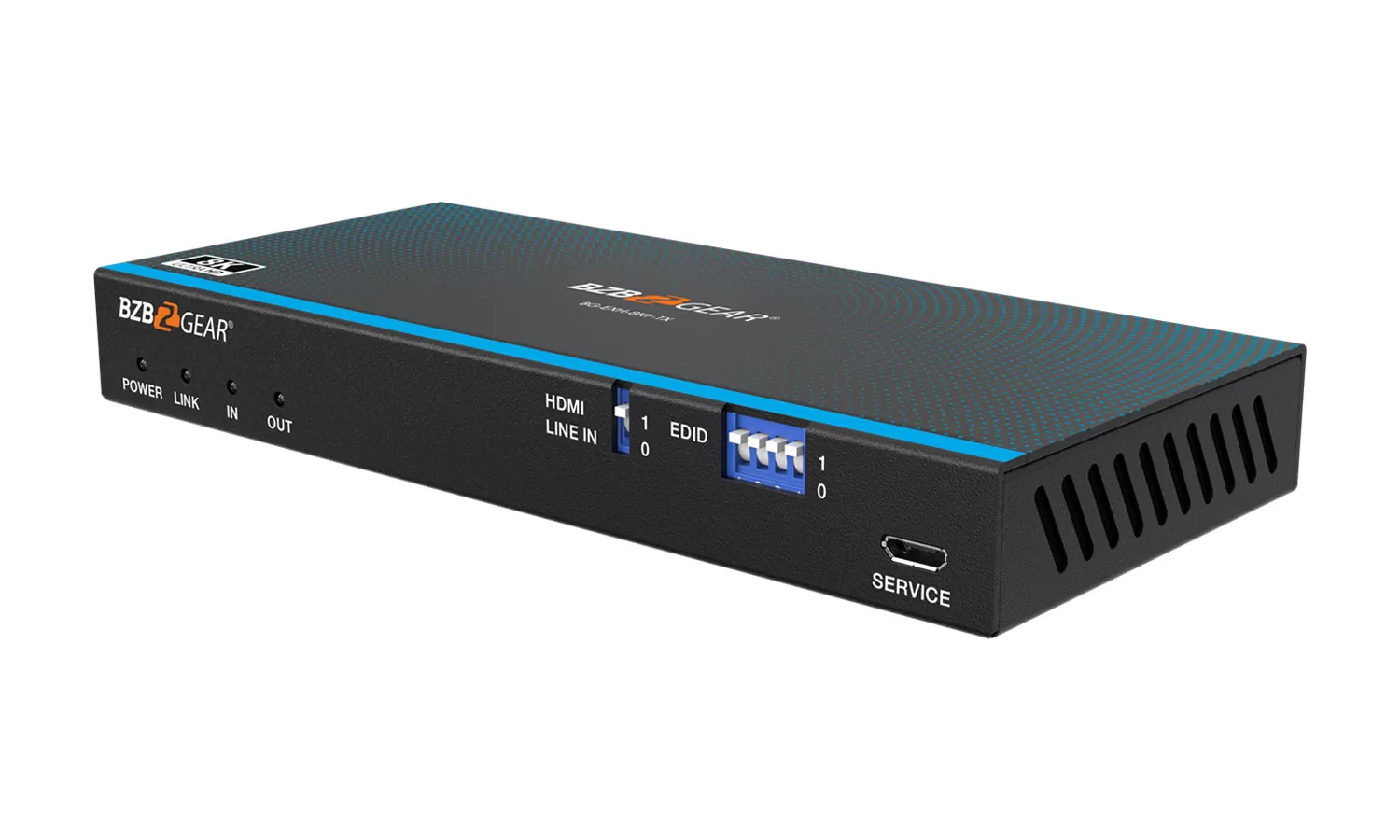

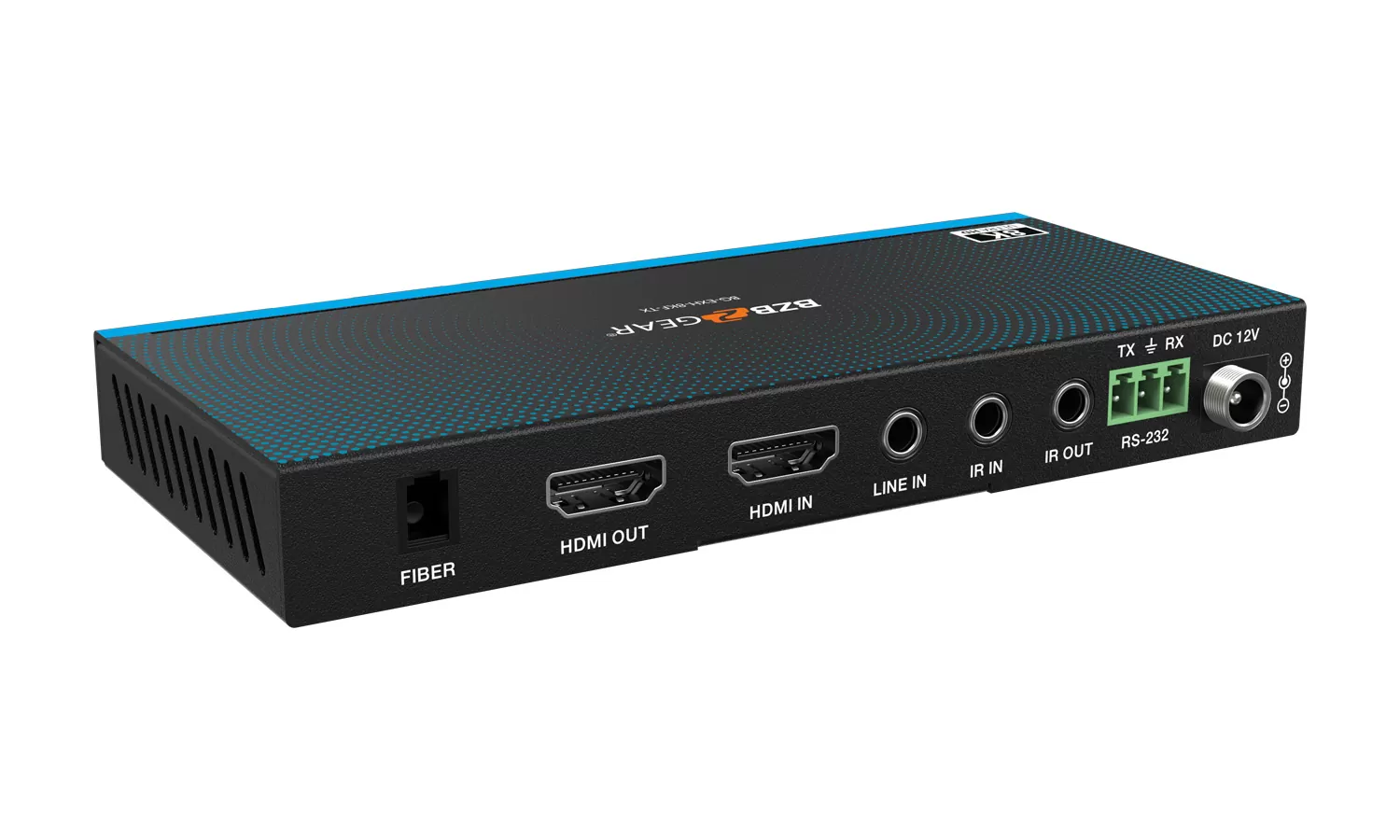

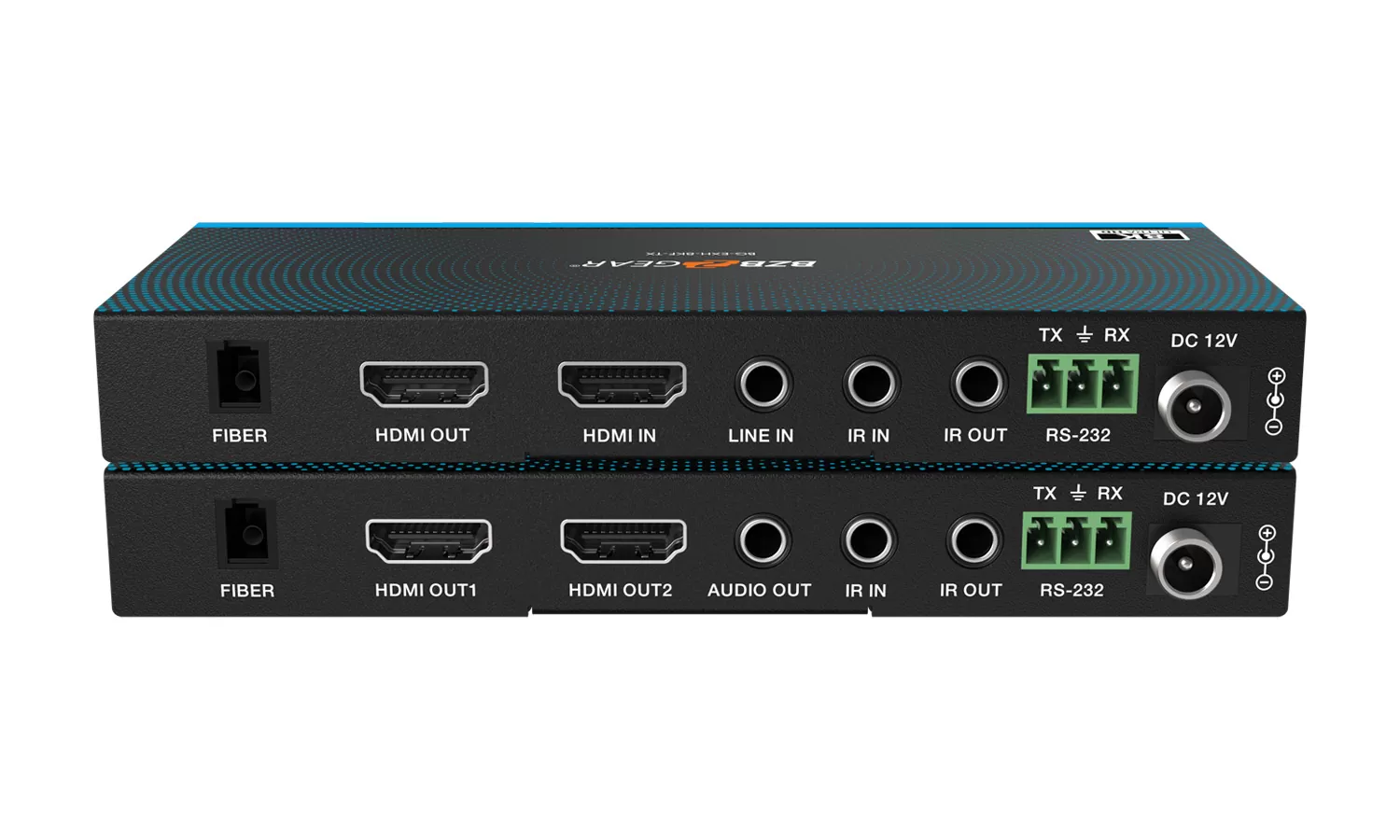

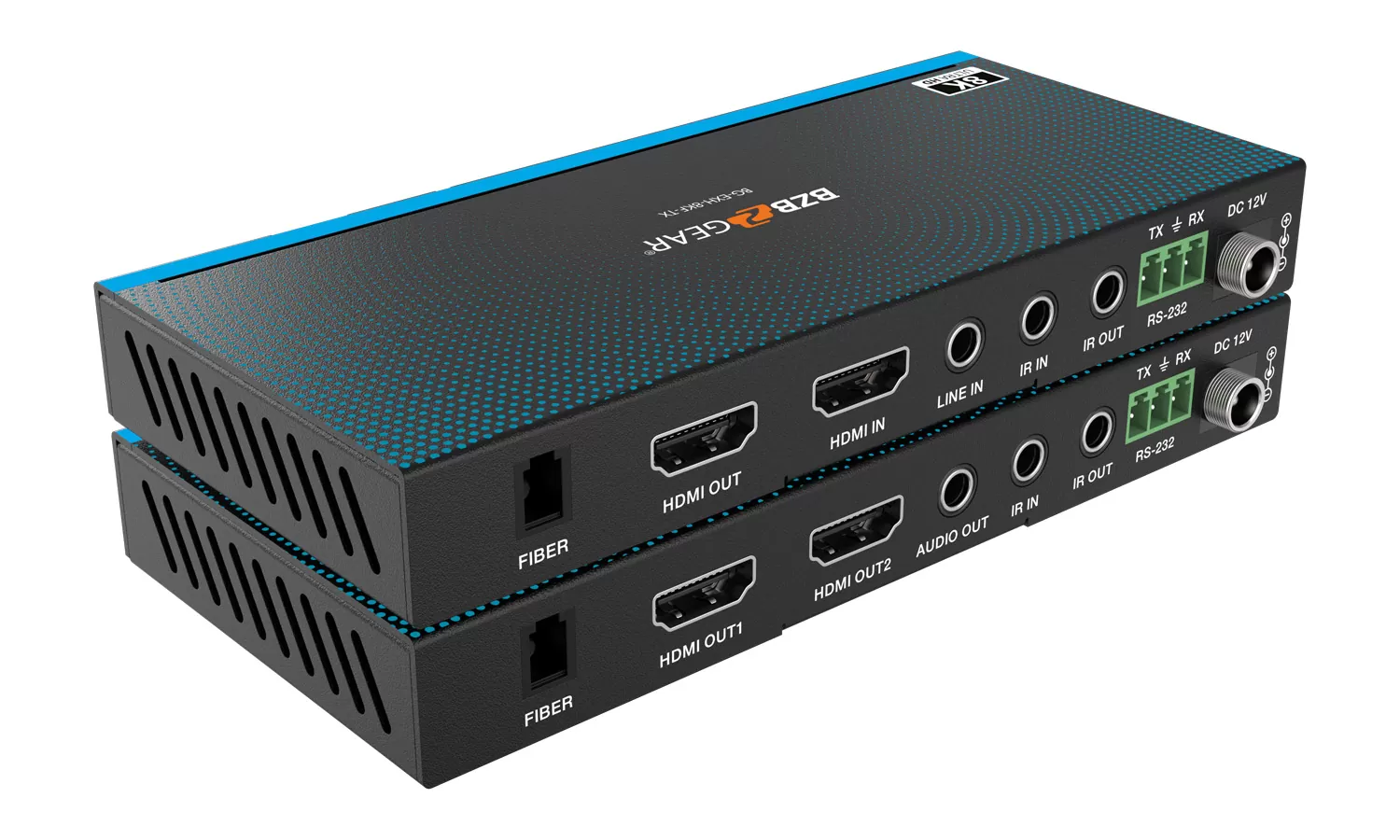

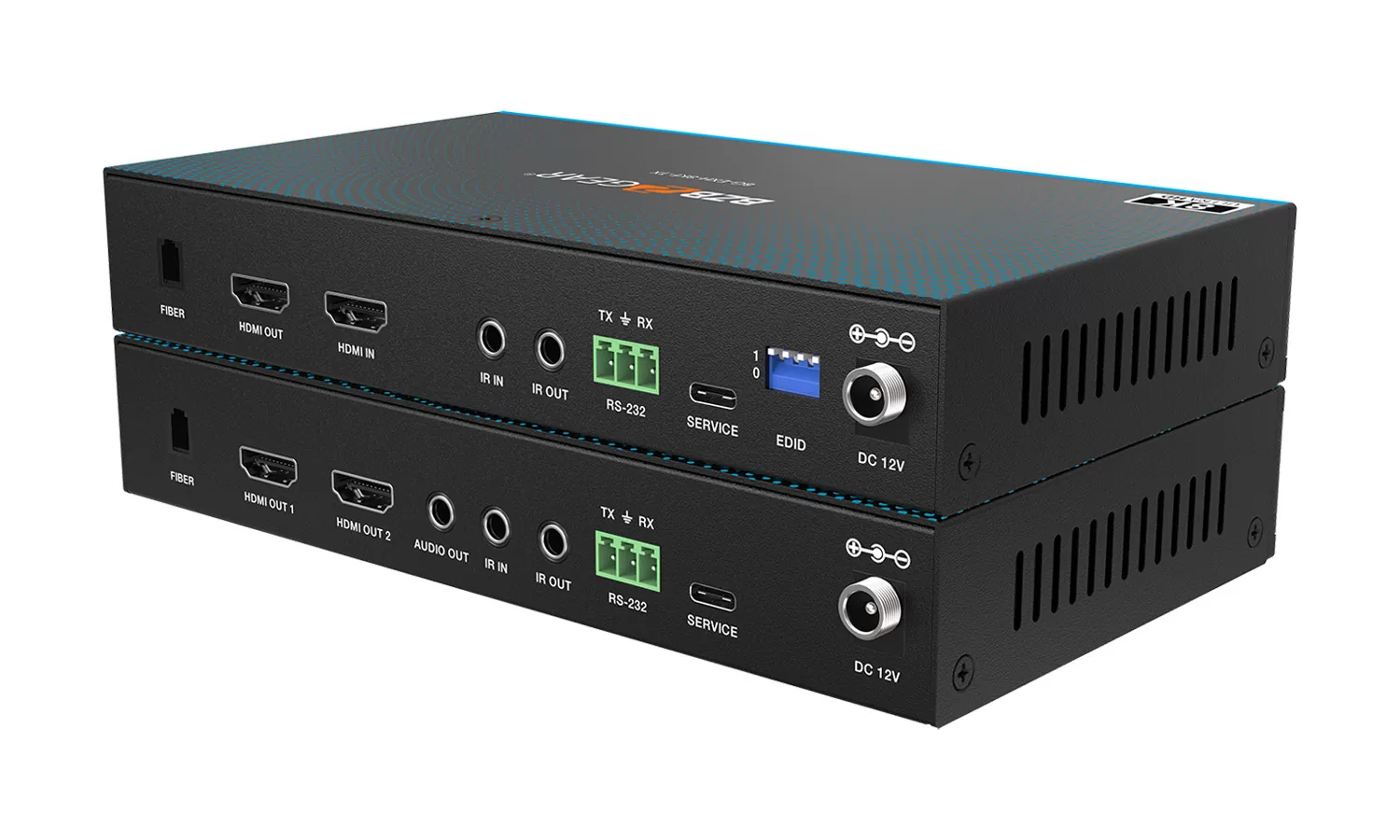

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] 1x IR IN [3.5mm audio jack] Output: 1x HDMI OUT [Type A, 19-pin female] 1x IR OUT [3.5mm audio jack] 1x FIBER [LC] Control: 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C, update port] | |||

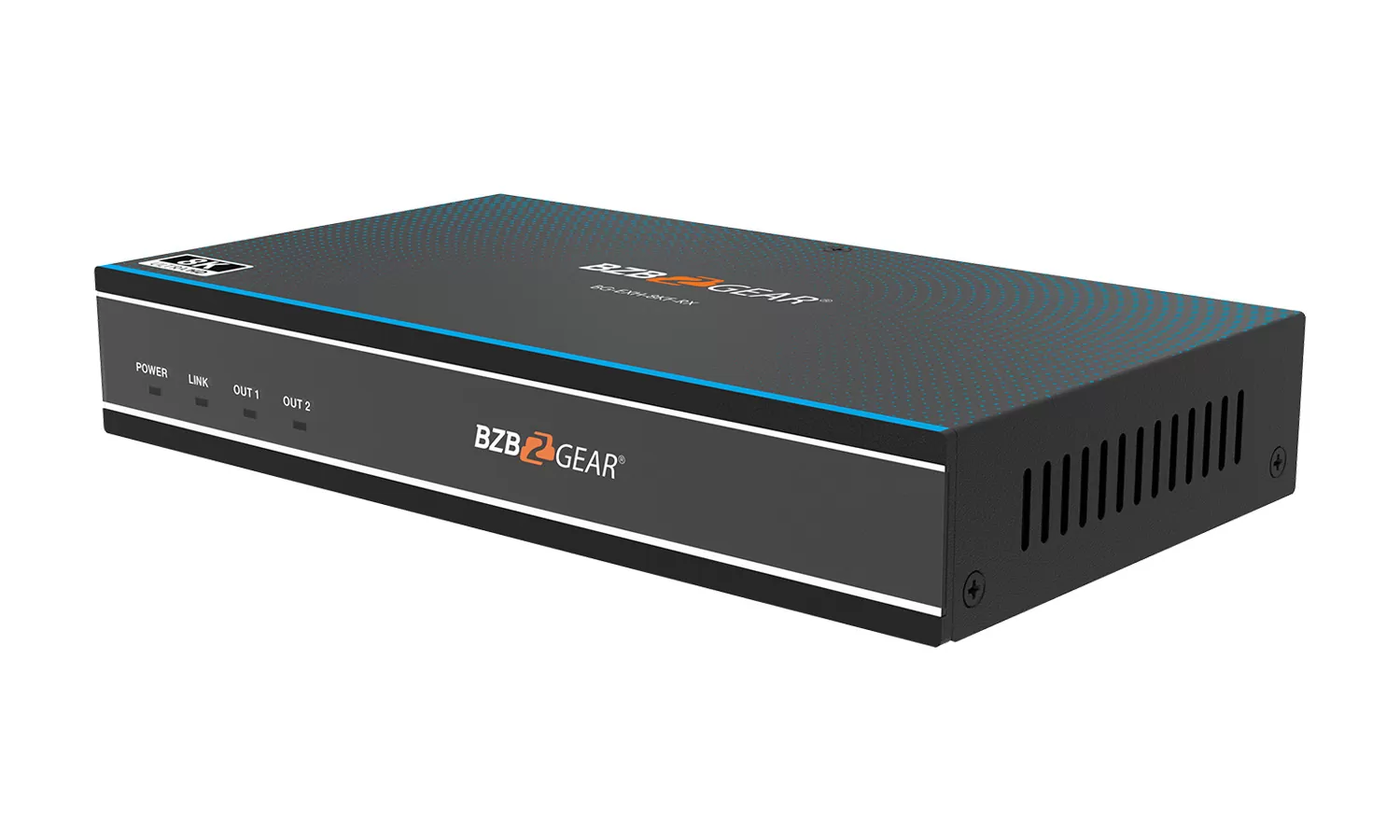

| Receiver | Input: 1x FIBER [LC] 1x IR IN [3.5mm audio jack] Output: 2x HDMI OUT [Type A, 19-pin female] 1x IR OUT [3.5mm audio jack] 1x AUDIO OUT [3.5mm audio jack] Control: 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C, update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions (W x D x H) | Transmitter / Receiver: 6.9in x 3.9in x 1.2in [175mm x 100mm x 30mm] | |||
| Weight | Transmitter: 1.09 lbs [496g]; Receiver: 1.08 lbs [492g] | |||
| Power Supply | Input: AC 100~240V 50/60Hz; Output: DC 12V/1A | |||
| Power Consumption | Transmitter: 6.7W (Max); Receiver: 4.5W (Max) | |||
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI in / out) | 3m/10ft (Ultra HDMI 2.1) | 8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High-Speed HDMI” cables is highly recommended. |
