BG-EXHD-50UWP-W | 4K UHD 18Gbps HDMI/MDP Wall Plate Transmitter/Receiver Kit up to 164ft
Overview

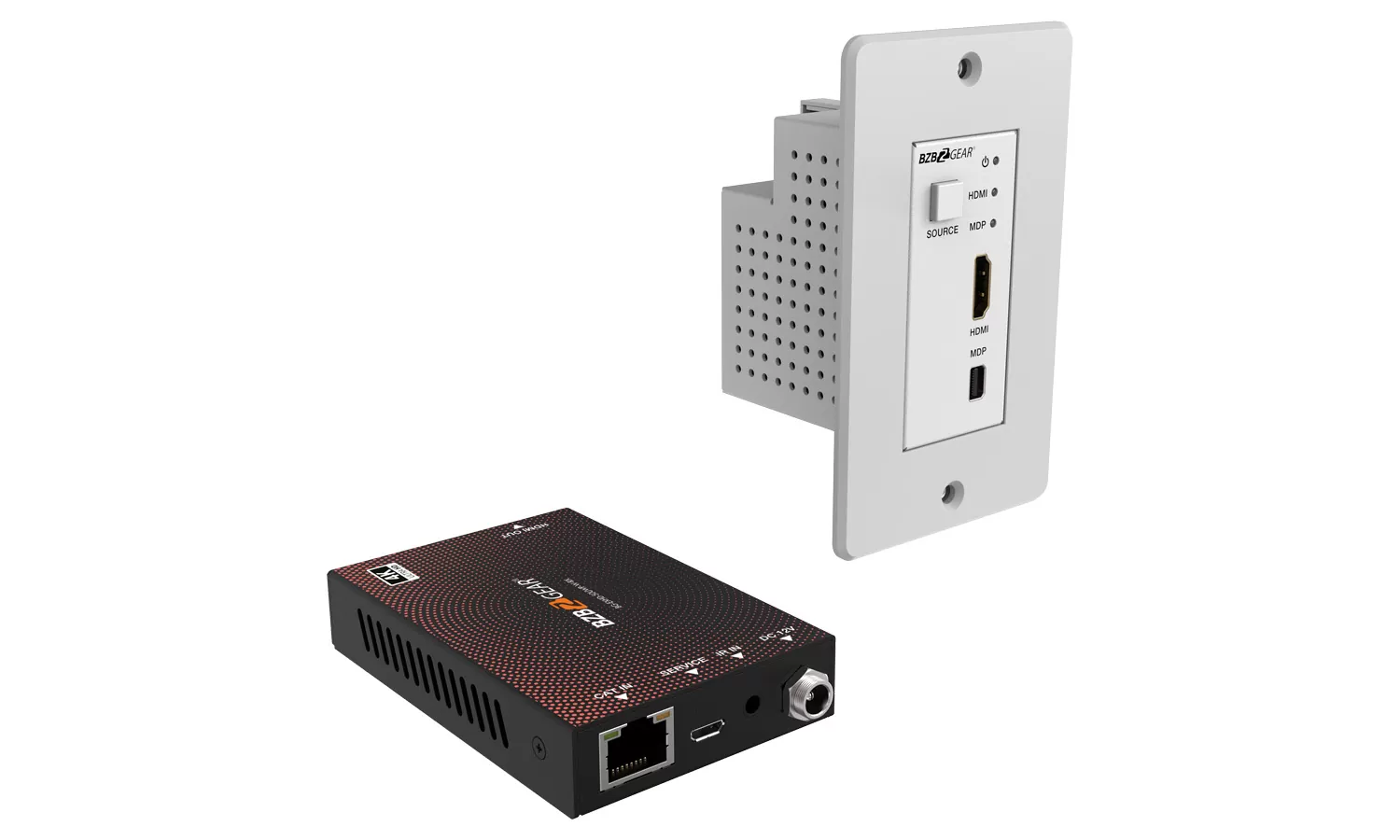

Introducing the BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a cutting-edge solution engineered to enhance your audiovisual experience to new heights. This all-encompassing kit features a sophisticated MDP/HDMI Wall Plate Transmitter paired with a CAT6 to HDMI Receiver, meticulously crafted to deliver unrivaled performance and effortless integration.

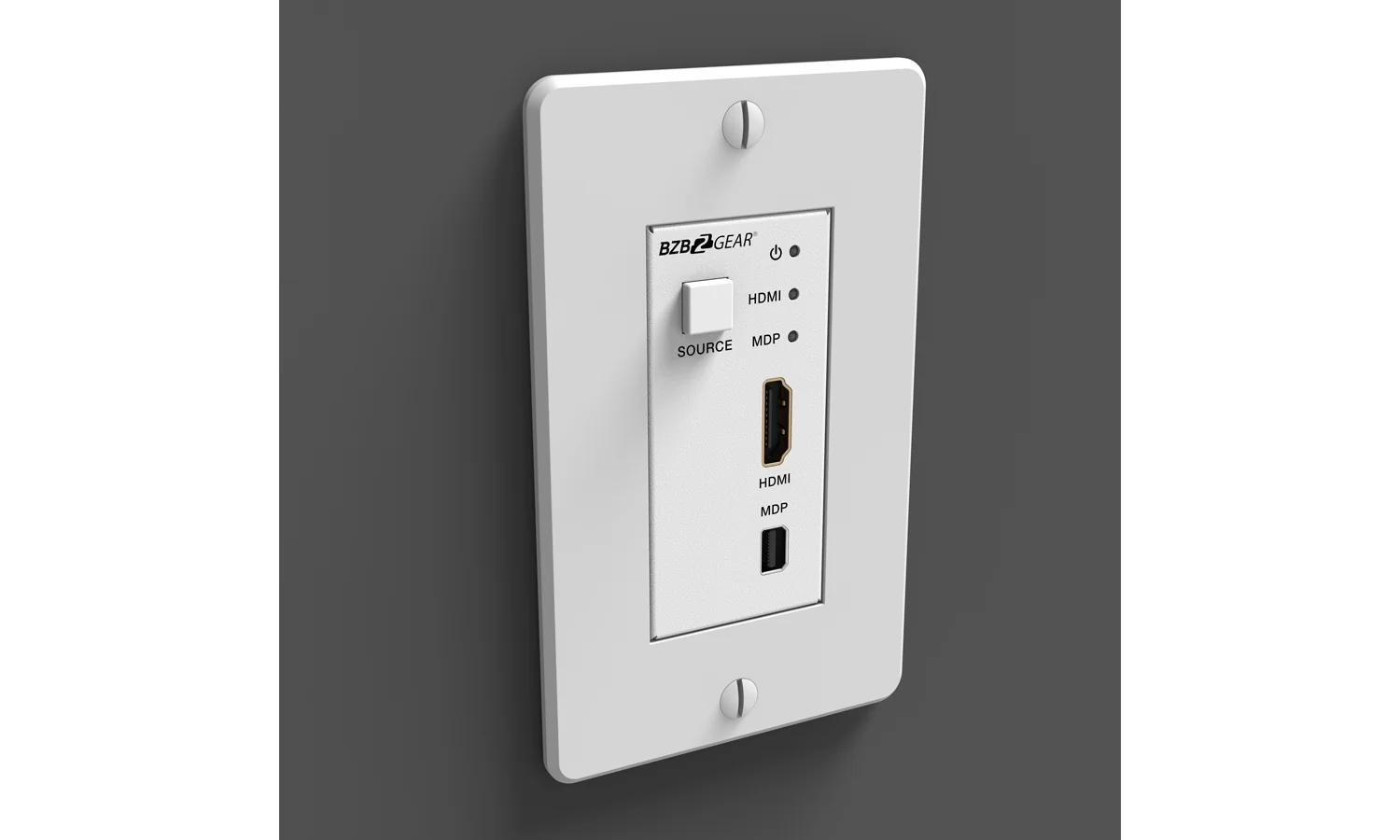

Experience seamless connectivity and pristine image quality with the advanced MDP/HDMI Wall Plate Transmitter. Equipped with HDMI and DisplayPort inputs, this transmitter ensures compatibility with a wide range of devices, while its sleek US one-gang enclosure seamlessly blends into any decor.

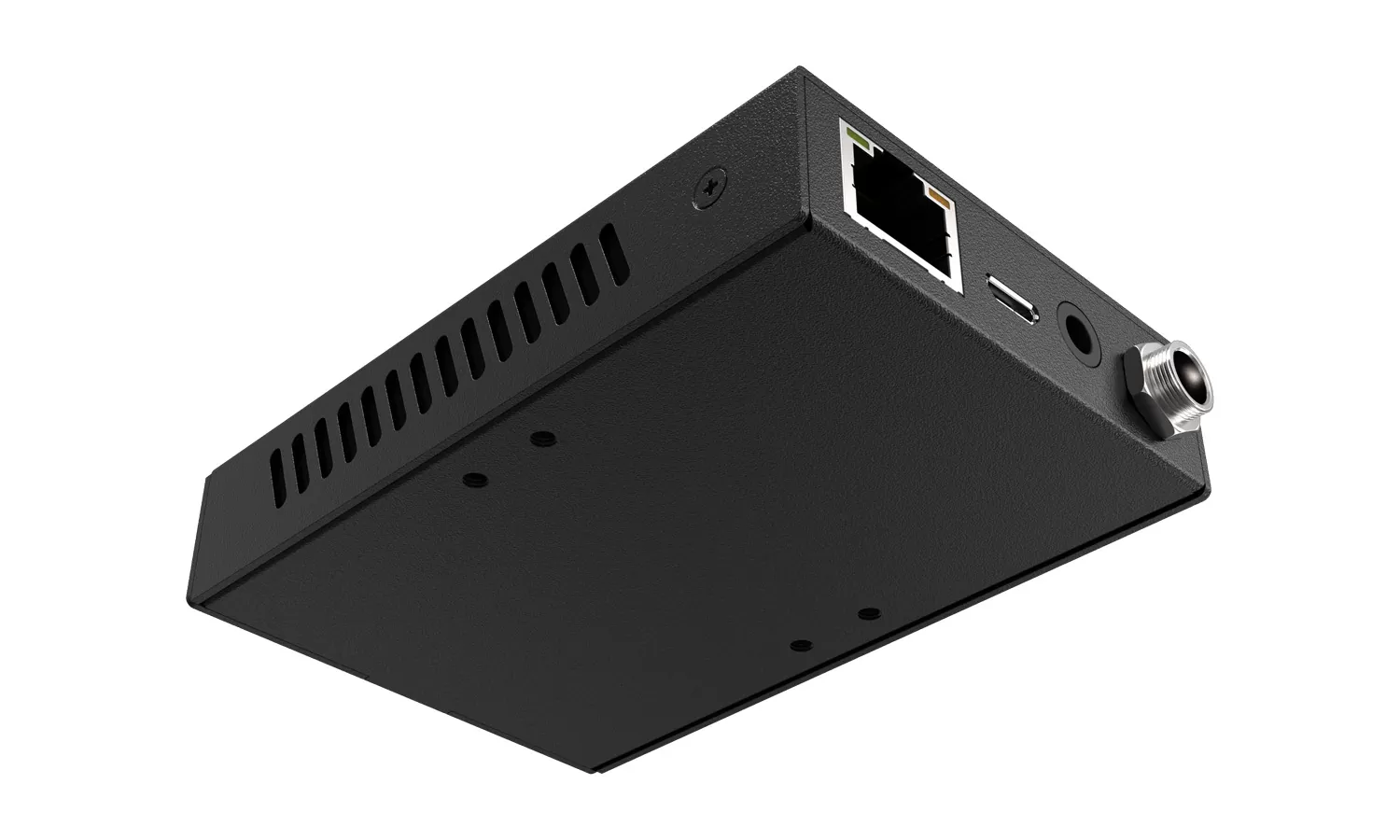

Extend your viewing experience with the CAT6 to HDMI Receiver, delivering high-definition content to your display device with uncompromising clarity and reliability. With support for resolutions up to 4K/UHD@60Hz 4:4:4 and a transmission distance of up to 164ft / 50m, this receiver offers unparalleled flexibility in installation.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a |
| Video Bandwidth | DP: 5.4 Gbps HDMI: 18 Gbps |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
| HDR | Support |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

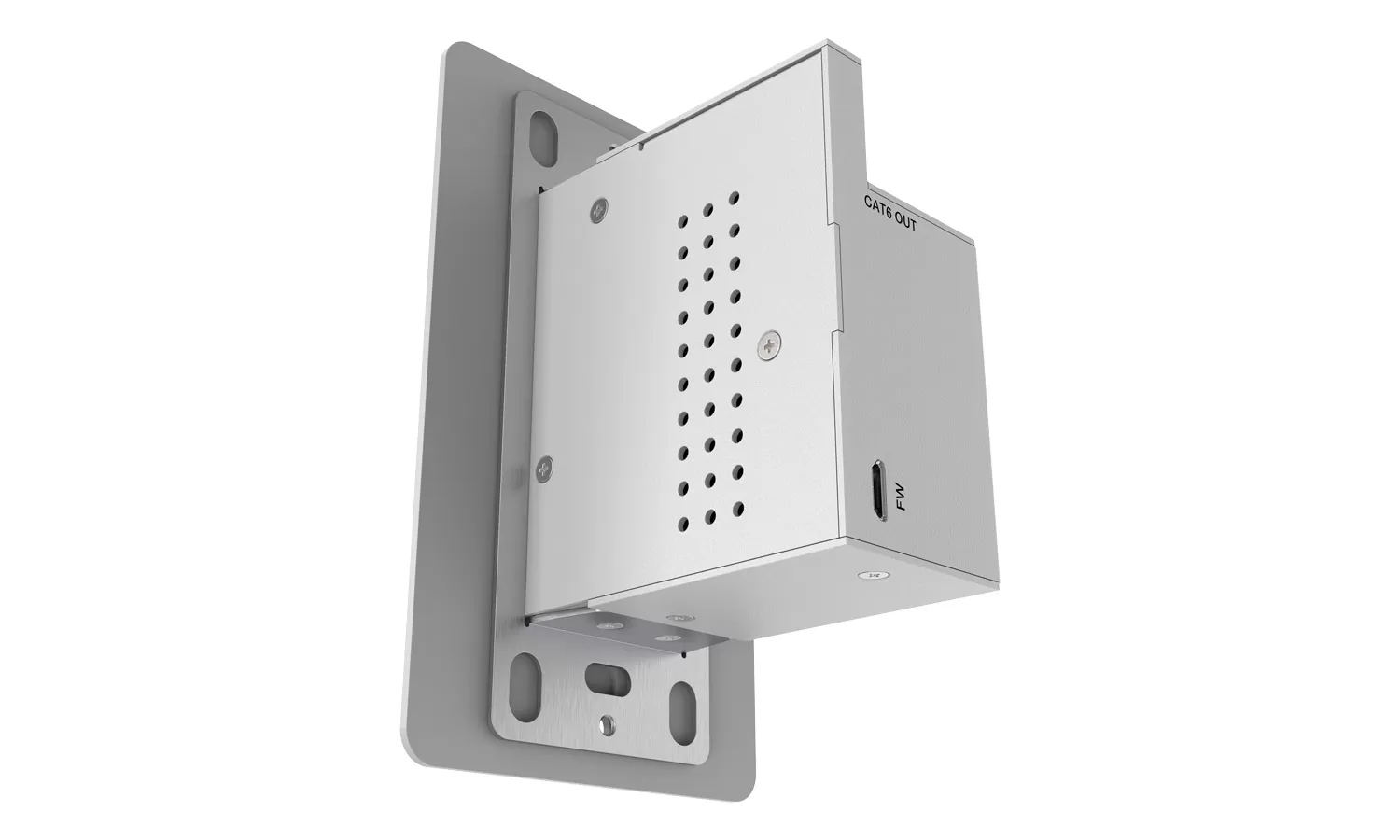

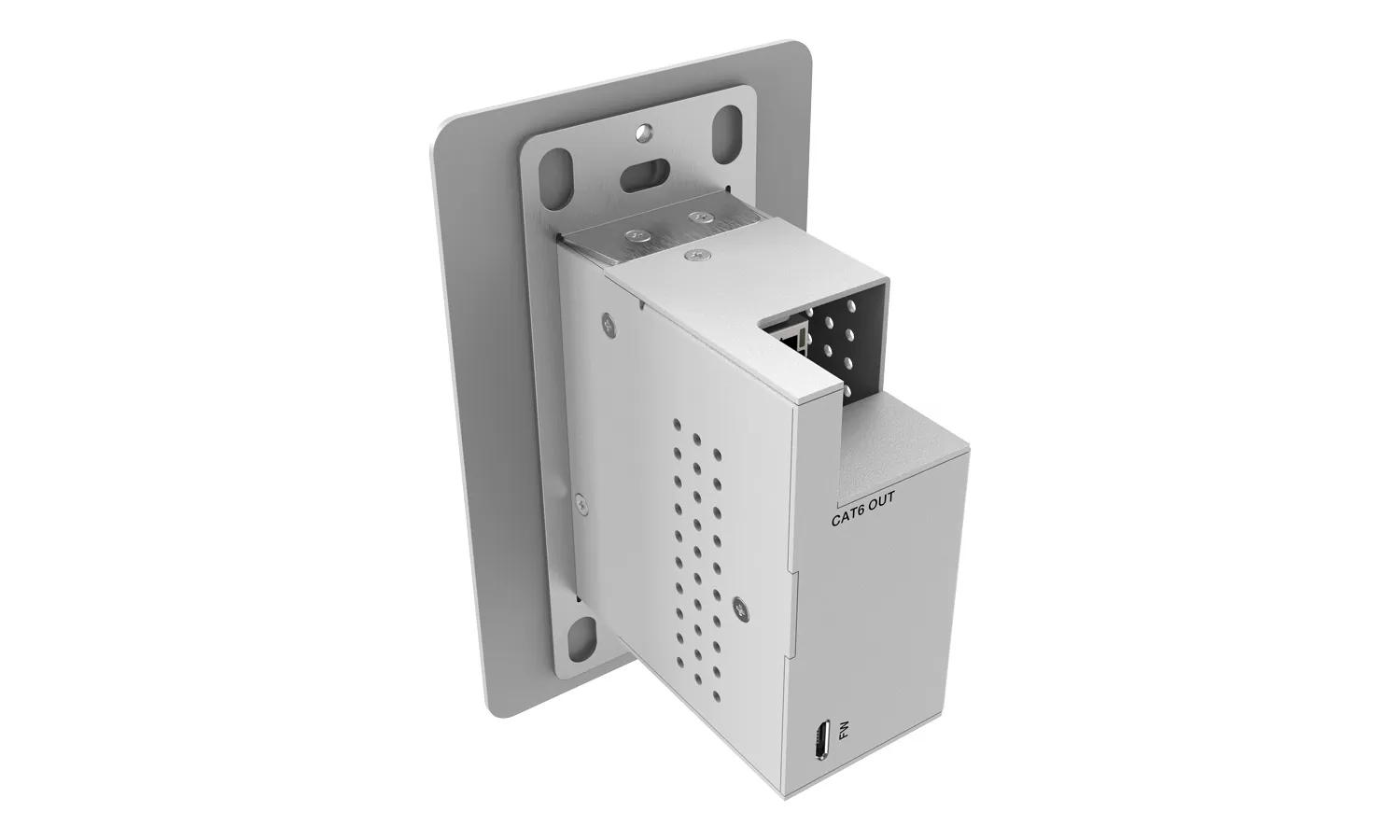

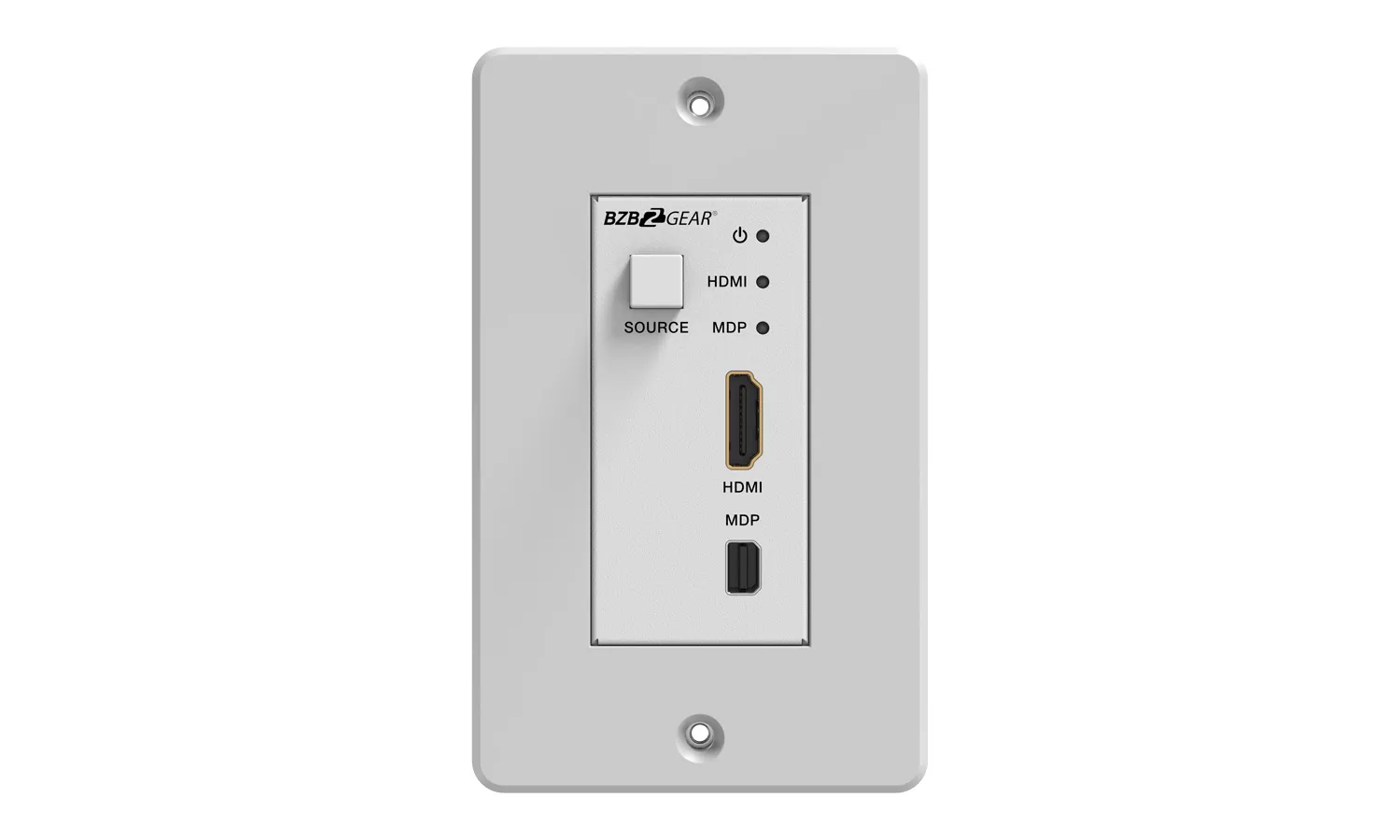

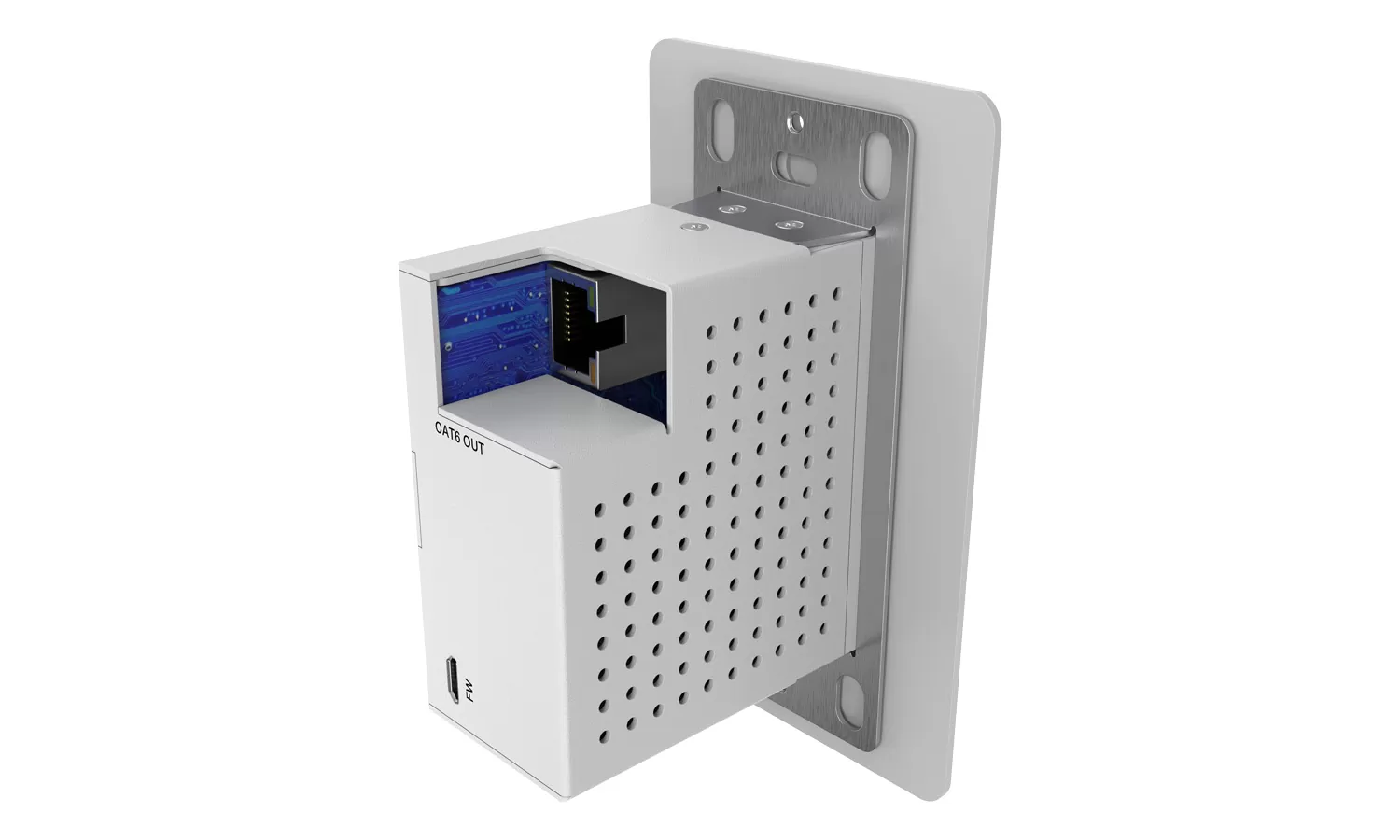

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x mini DP [20-pin female] Output: 1x CAT6 OUT [RJ45, 8-pin female] Control: 1x FW [Micro USB, Update port] |

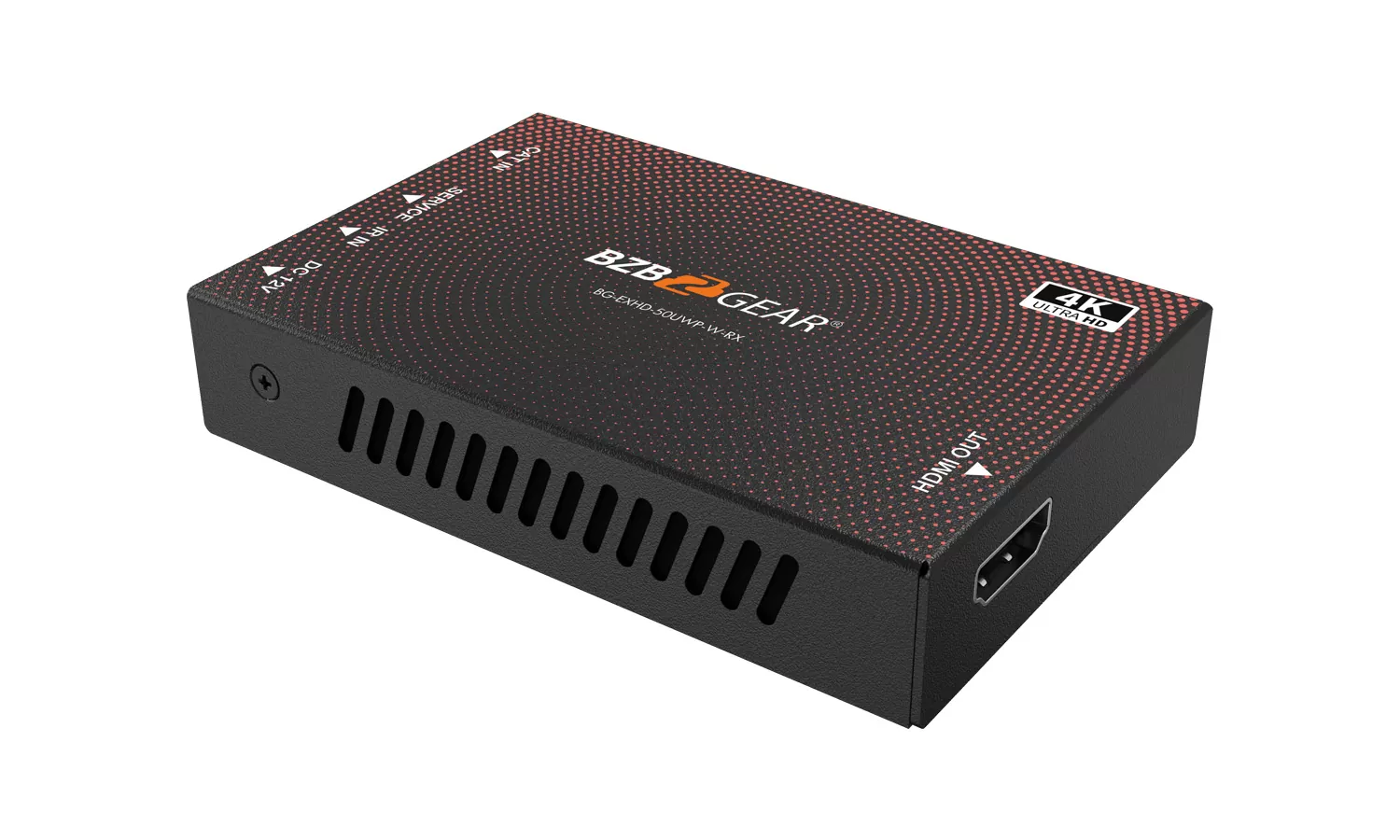

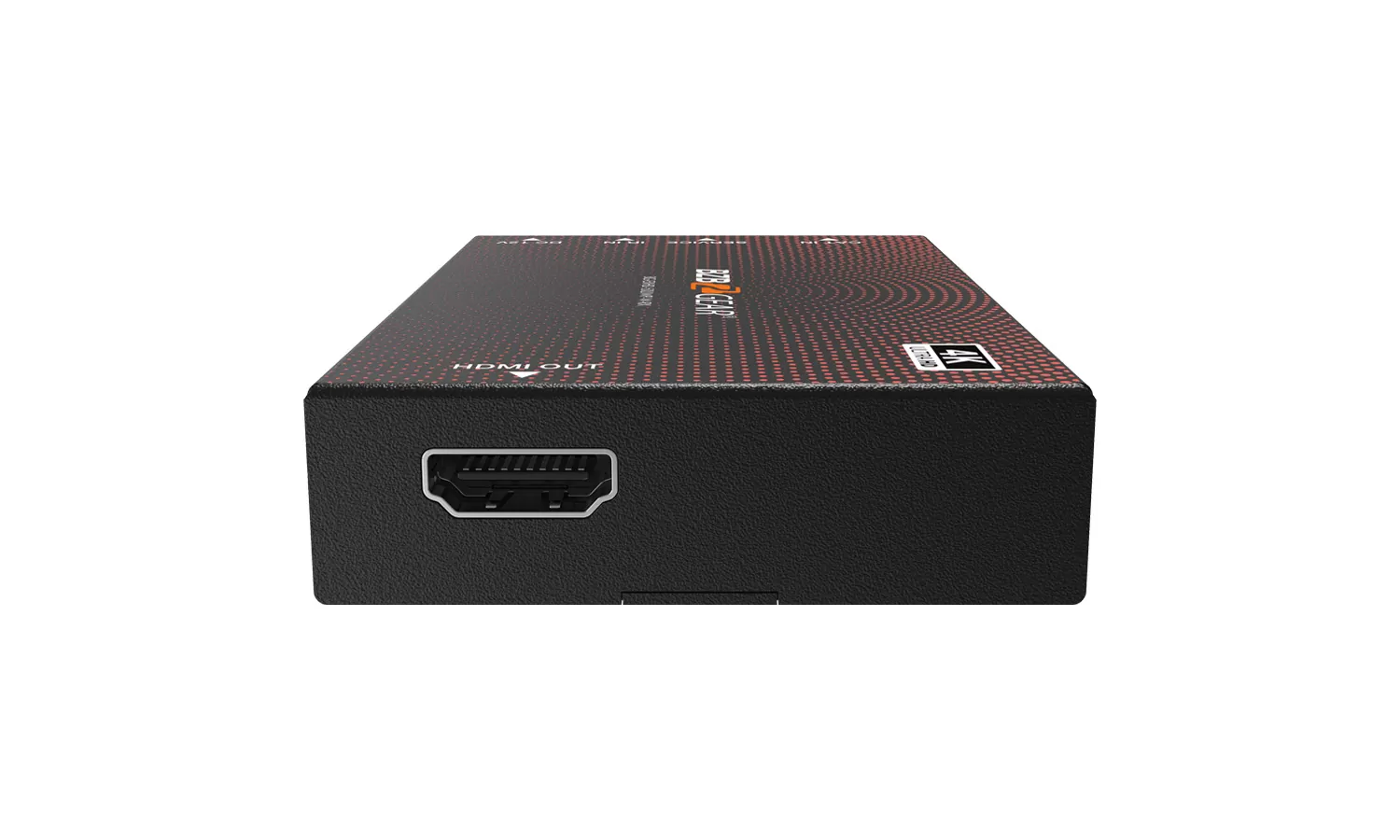

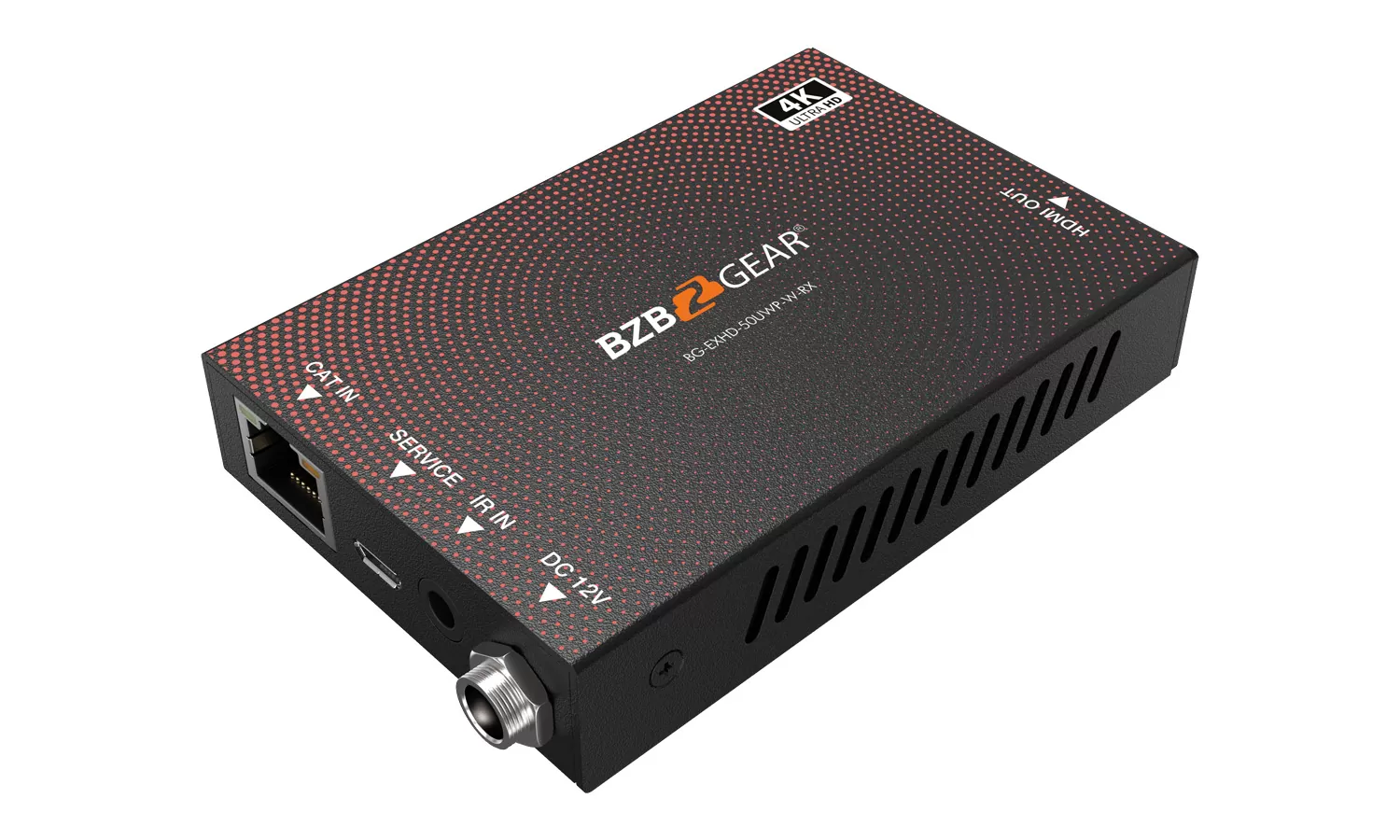

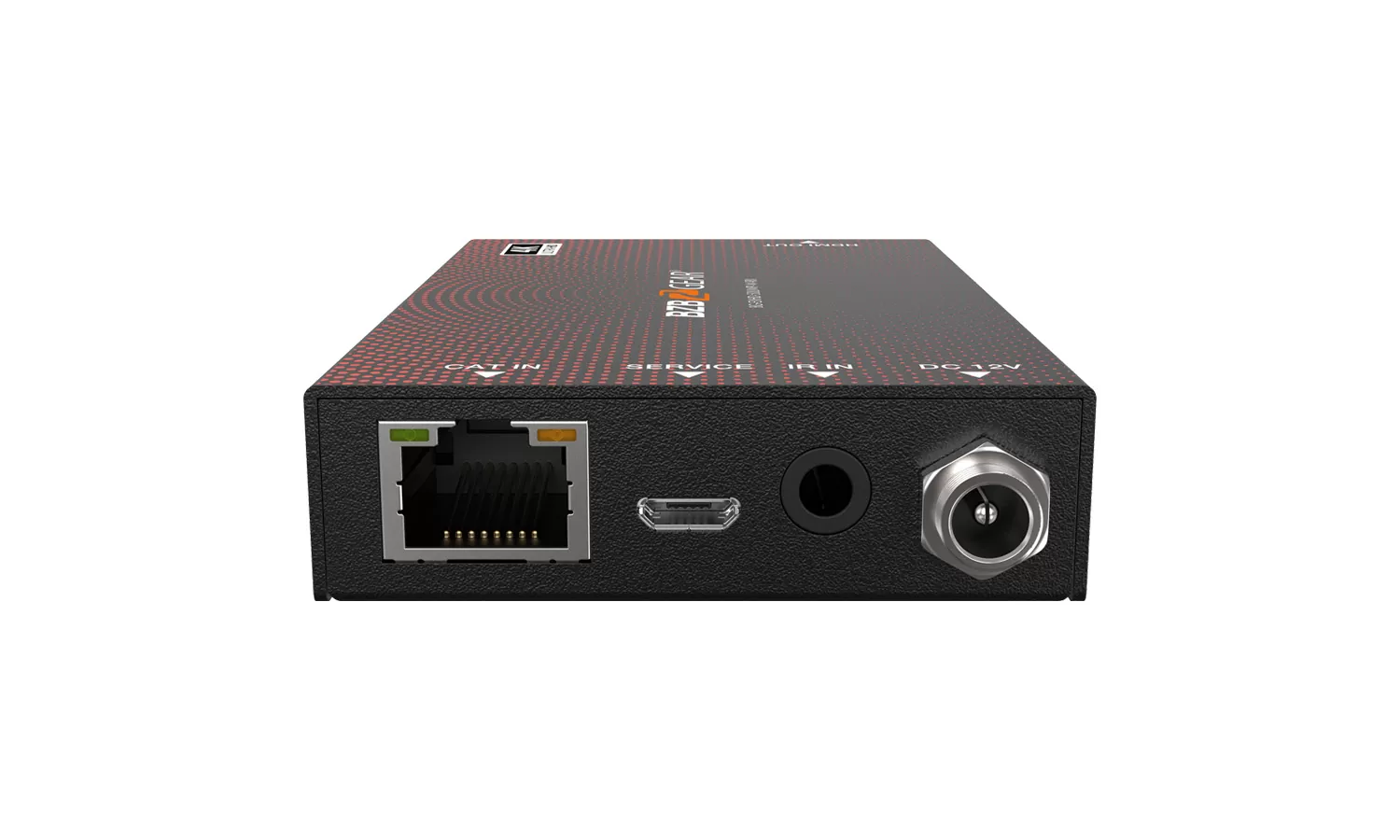

| Receiver | Input: 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] Controls: 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |

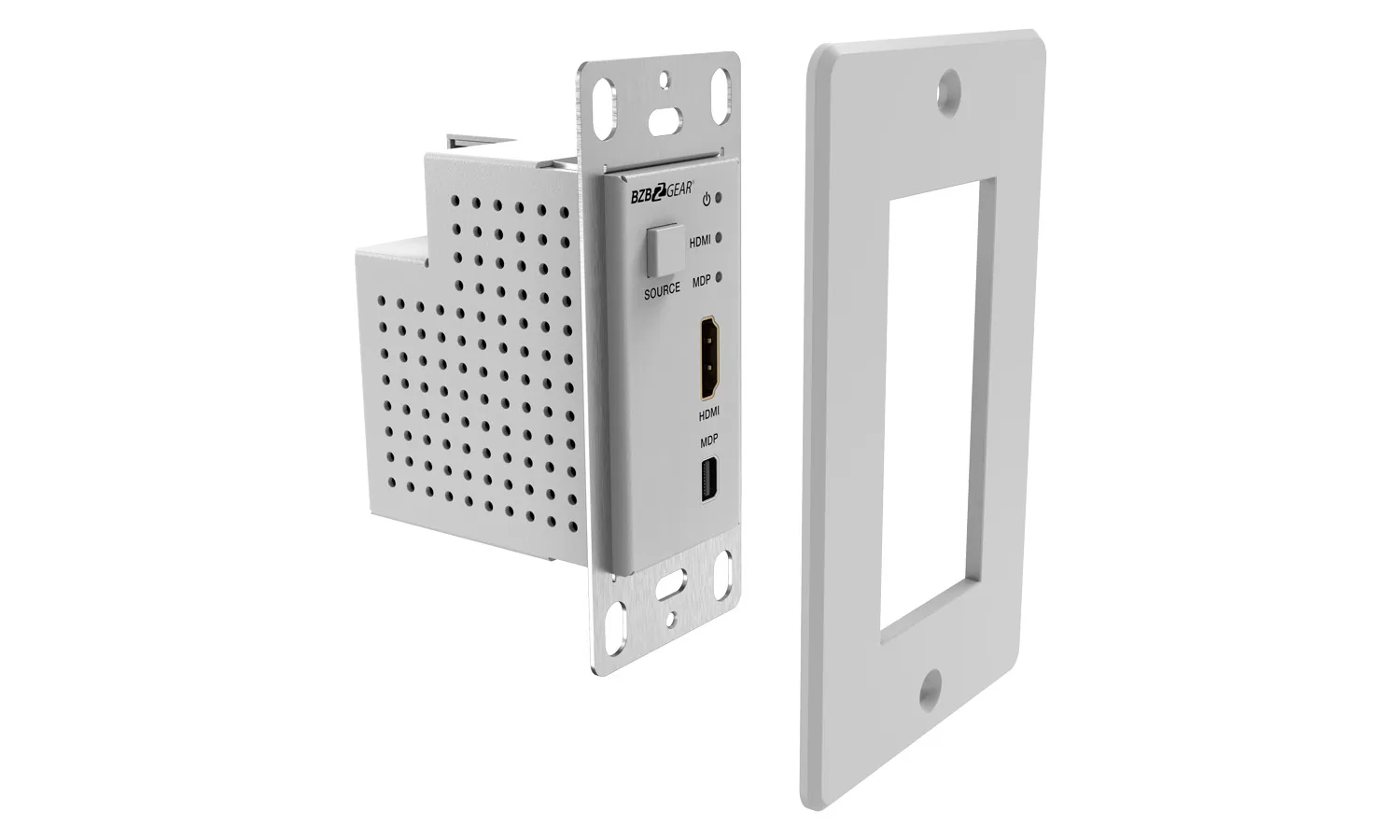

| Dimensions (W x D x H) | Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm] Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm] Receiver: 3.5in x 2.4in x 0.71in [88mm x 61mm x 18mm] |
| Weight | Wall plate: 0.39 lbs [175g], Receiver: 0.34 lbs [155g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 2.2W (Max), Receiver: 3.72W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
