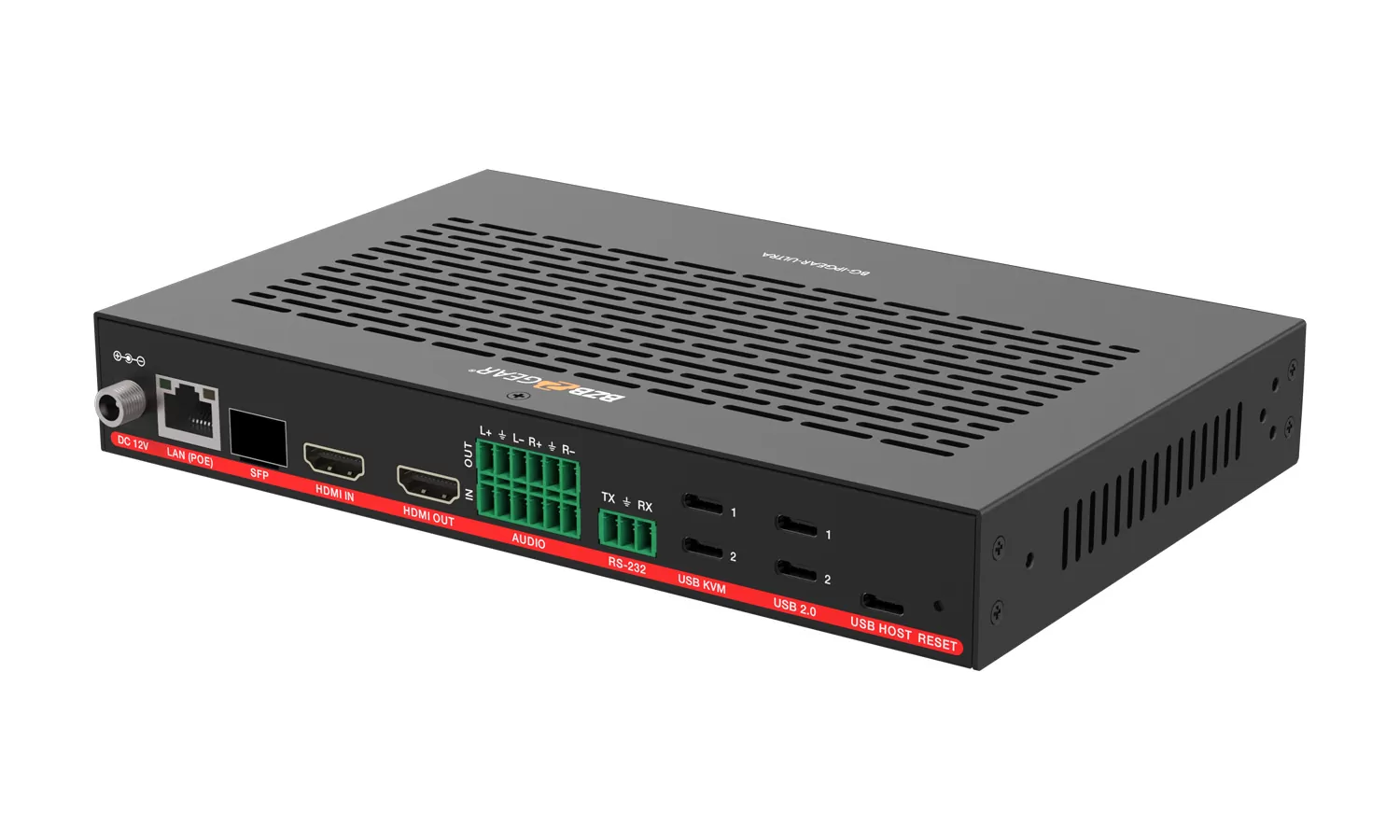

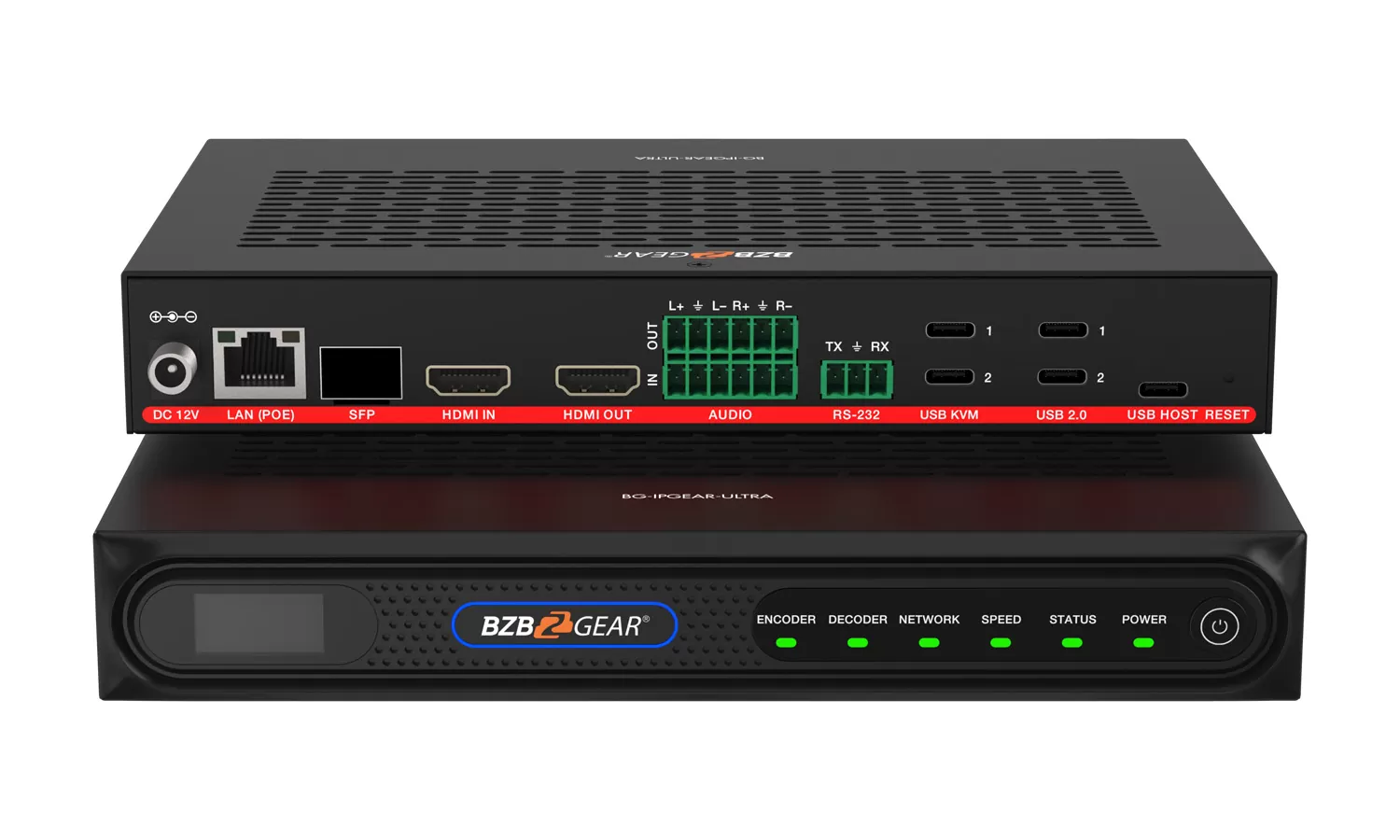

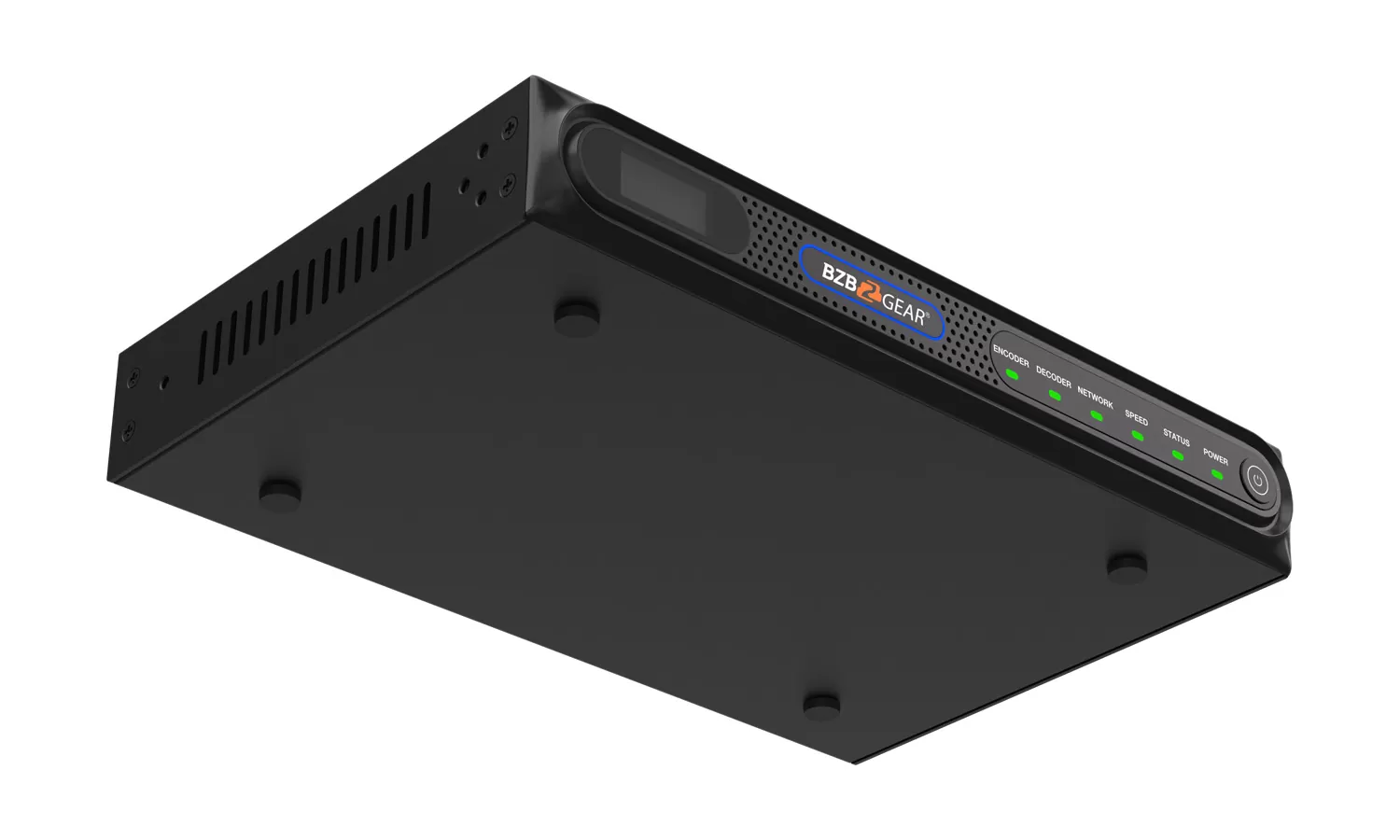

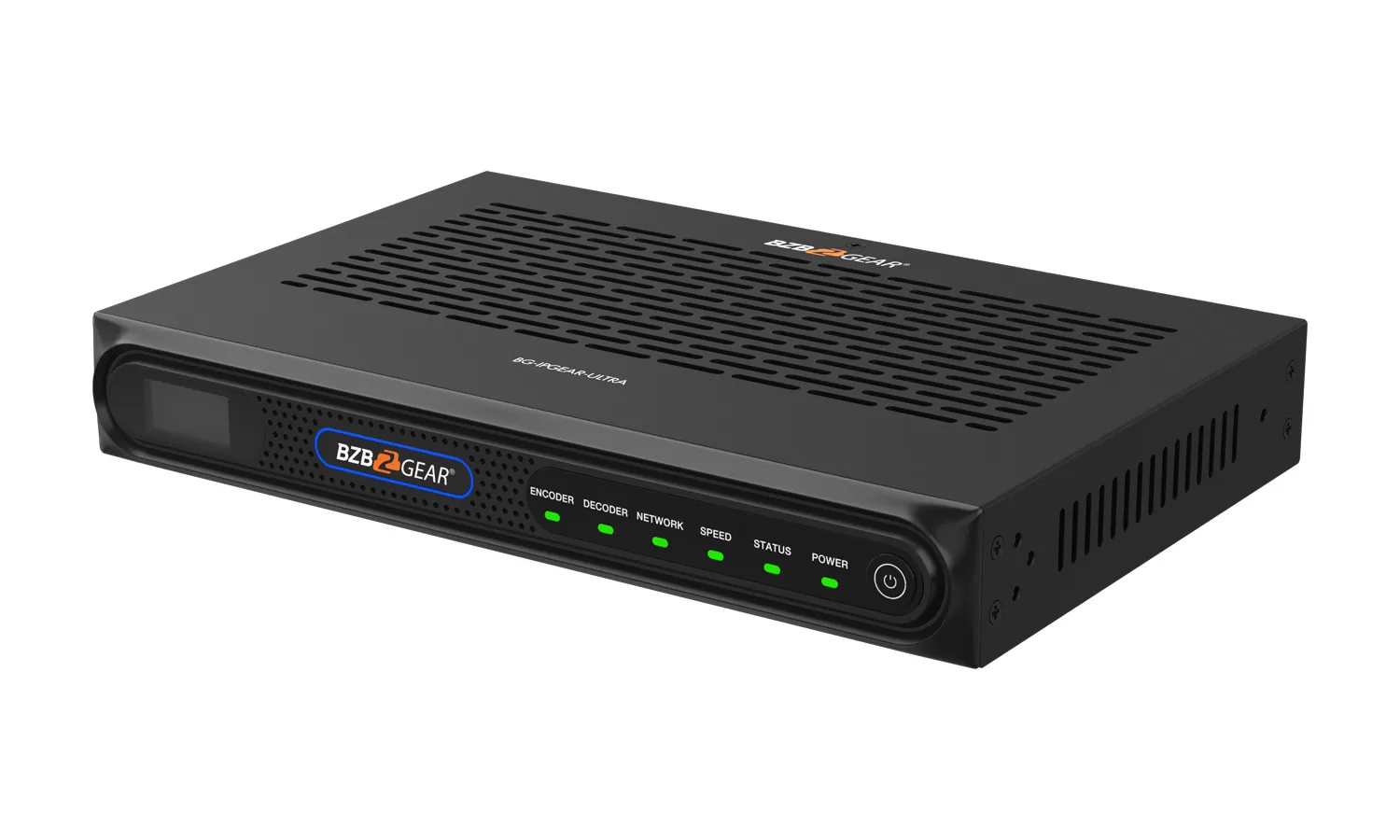

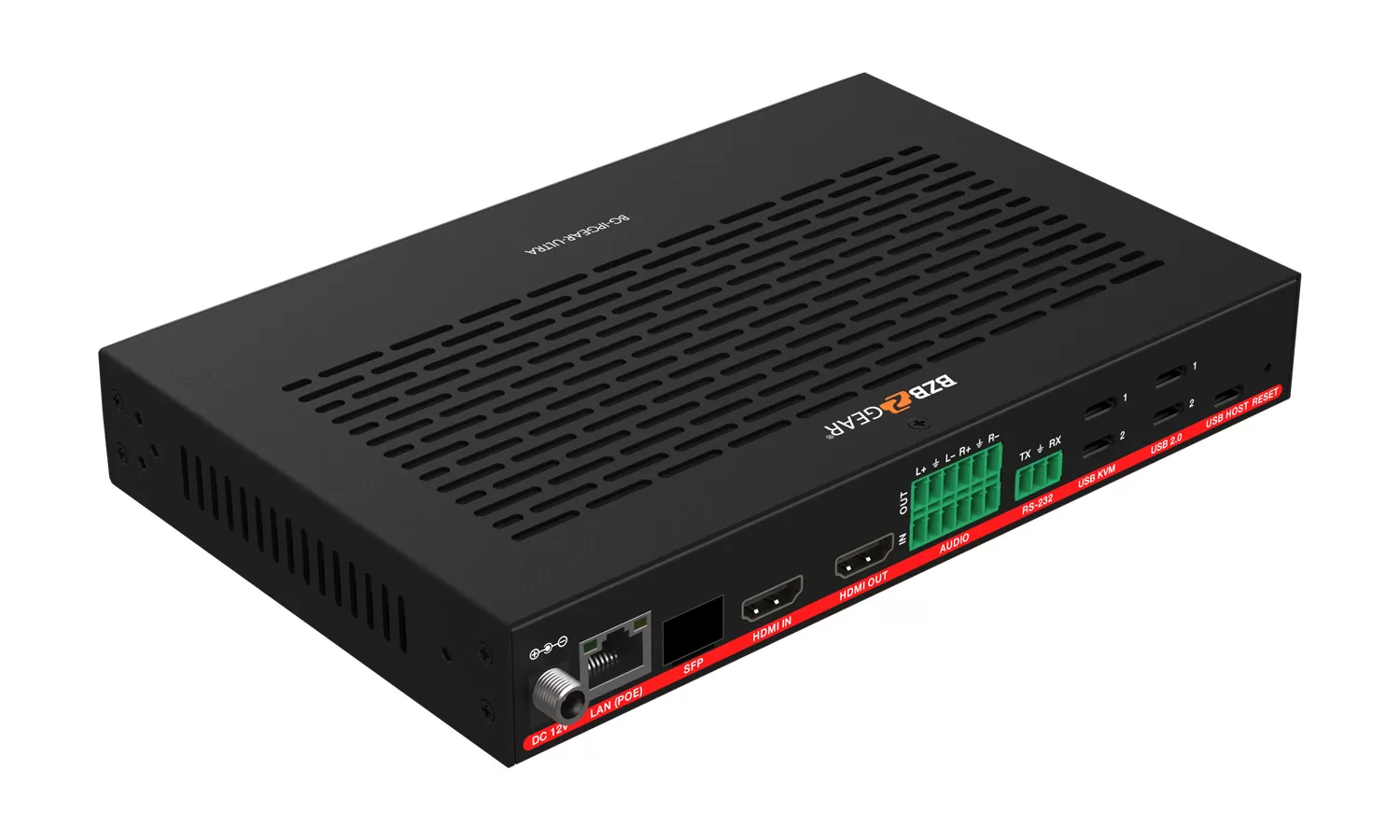

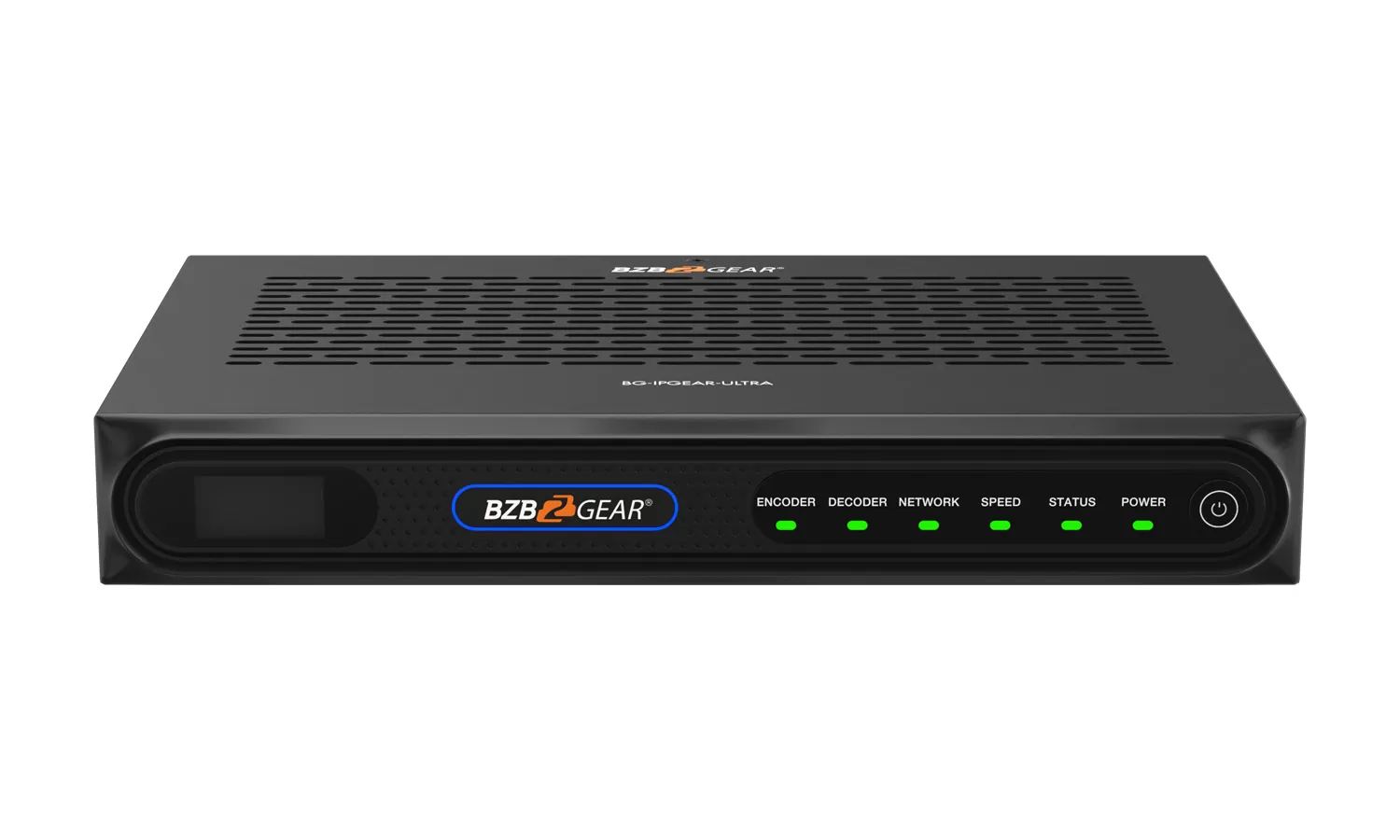

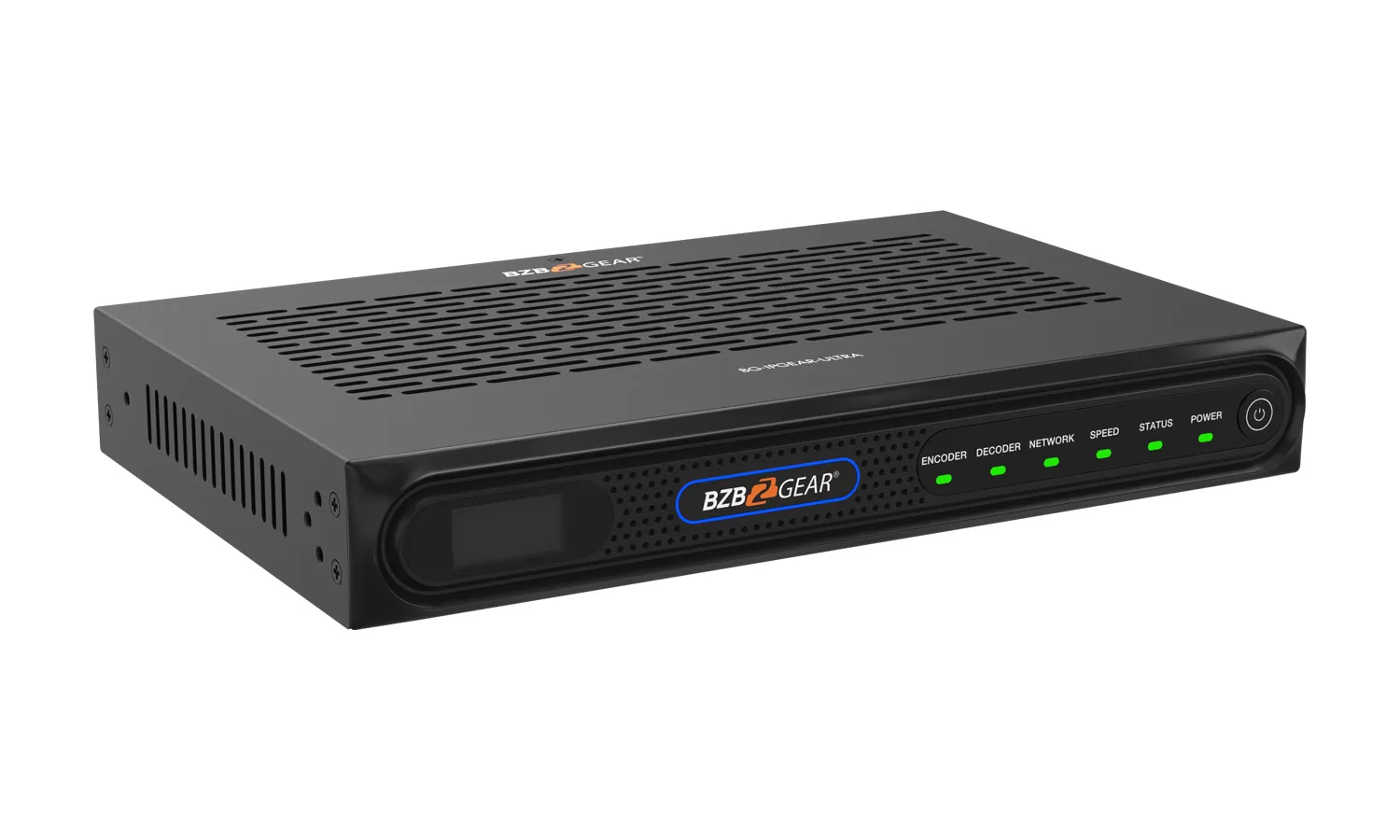

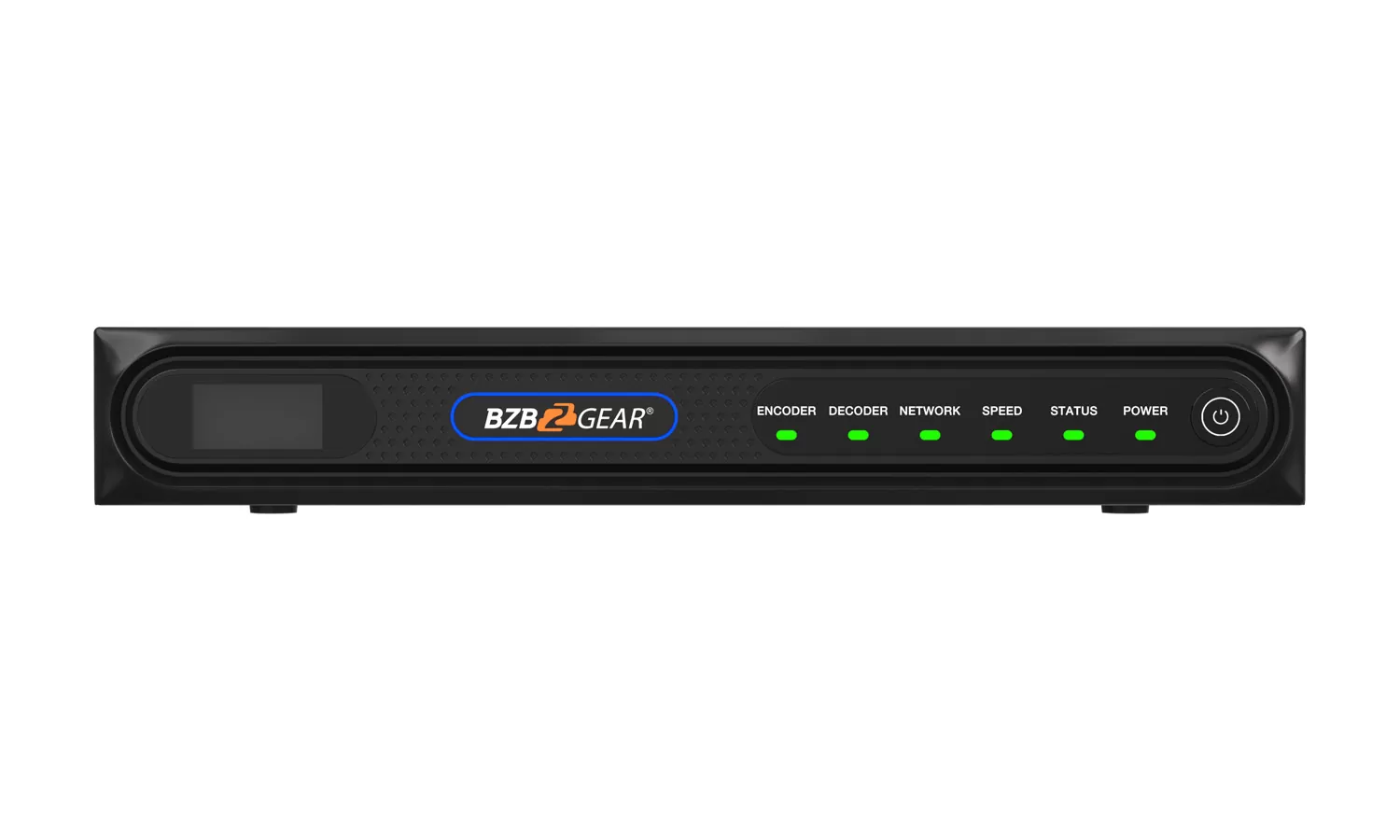

BG-IPGEAR-ULTRA | 4K UHD HDMI 2.0 Over IP Multicast Transceiver with Seamless Matrix Switching/Video Wall/MultiView/KVM/USB 2.0/POE Support
Introducing the BG-IPGEAR-ULTRA 4K60Hz advanced AVoIP kit. Key features of the BG-IPGEAR-ULTRA series include HDMI 2.0b and HDCP 2.2 compliance, support for video resolutions up to 4K60Hz (4:4:4), and a video bandwidth of 18Gbps. Audio formats support LPCM 2.0CH at 48kHz. The integrated design of the encoder and decoder supports both fiber and copper connections, with a window roaming function that allows a decoder unit to process up to 16 signals for arbitrary windowing, roaming, overlaying, and splicing. The system supports KVM seat management, universal H.264/265 protocol, high-definition background images, multi-screen splicing, scrolling subtitles, character overlay, point-to-point signal extension, signal distribution, multicast mode, matrix, and video wall functions over a 1G Network Switch.
It also features integrated central control over RS-232, APP control on portable devices, user rights management, flexible control via KVM, APP, and Control Server, and standard POE support (802.3af Class 3, PD mode). The encoder supports HDMI local loop-out and audio embedding and de-embedding functions, along with comprehensive visual interaction modes, signal source, large screen status, scene preview, and environmental visualization control.

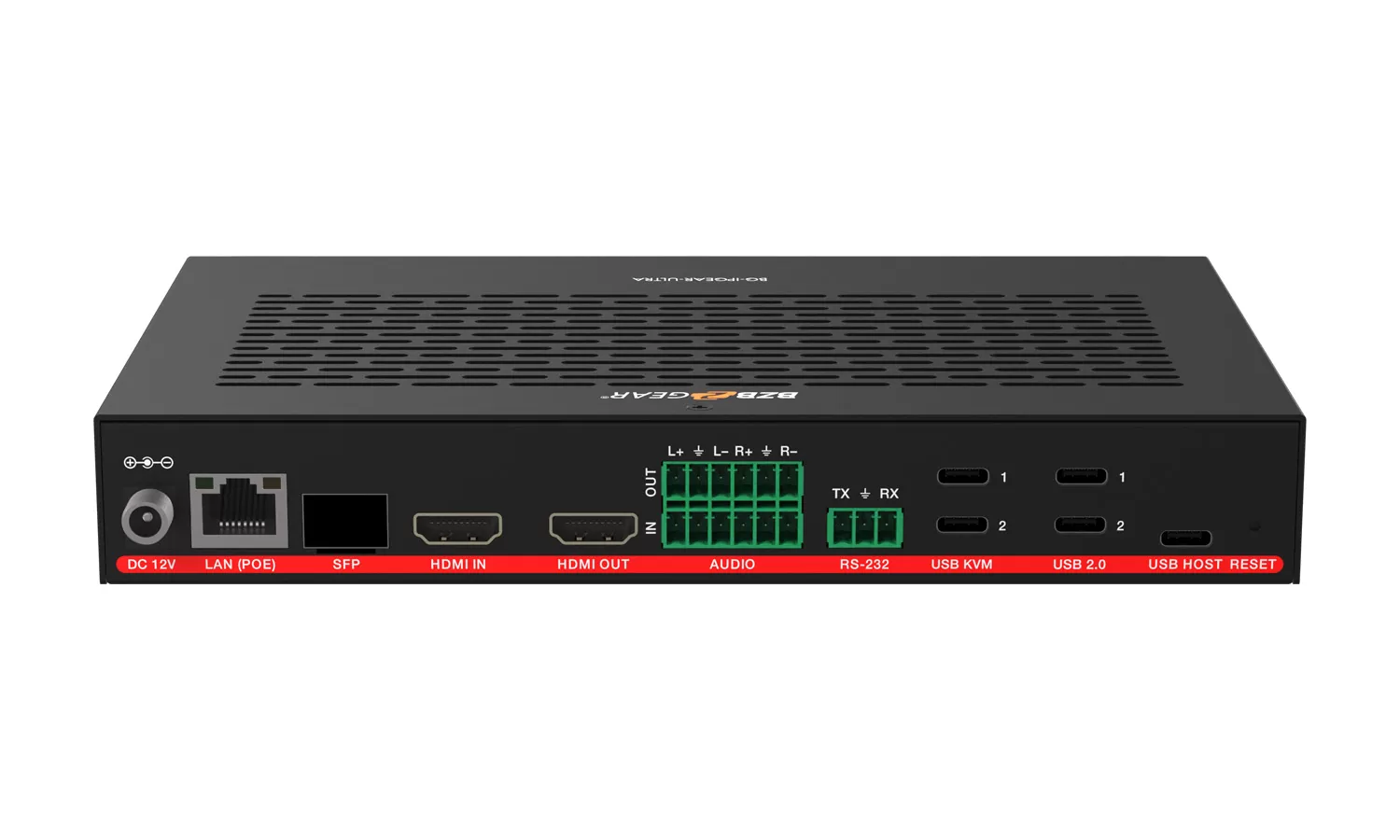

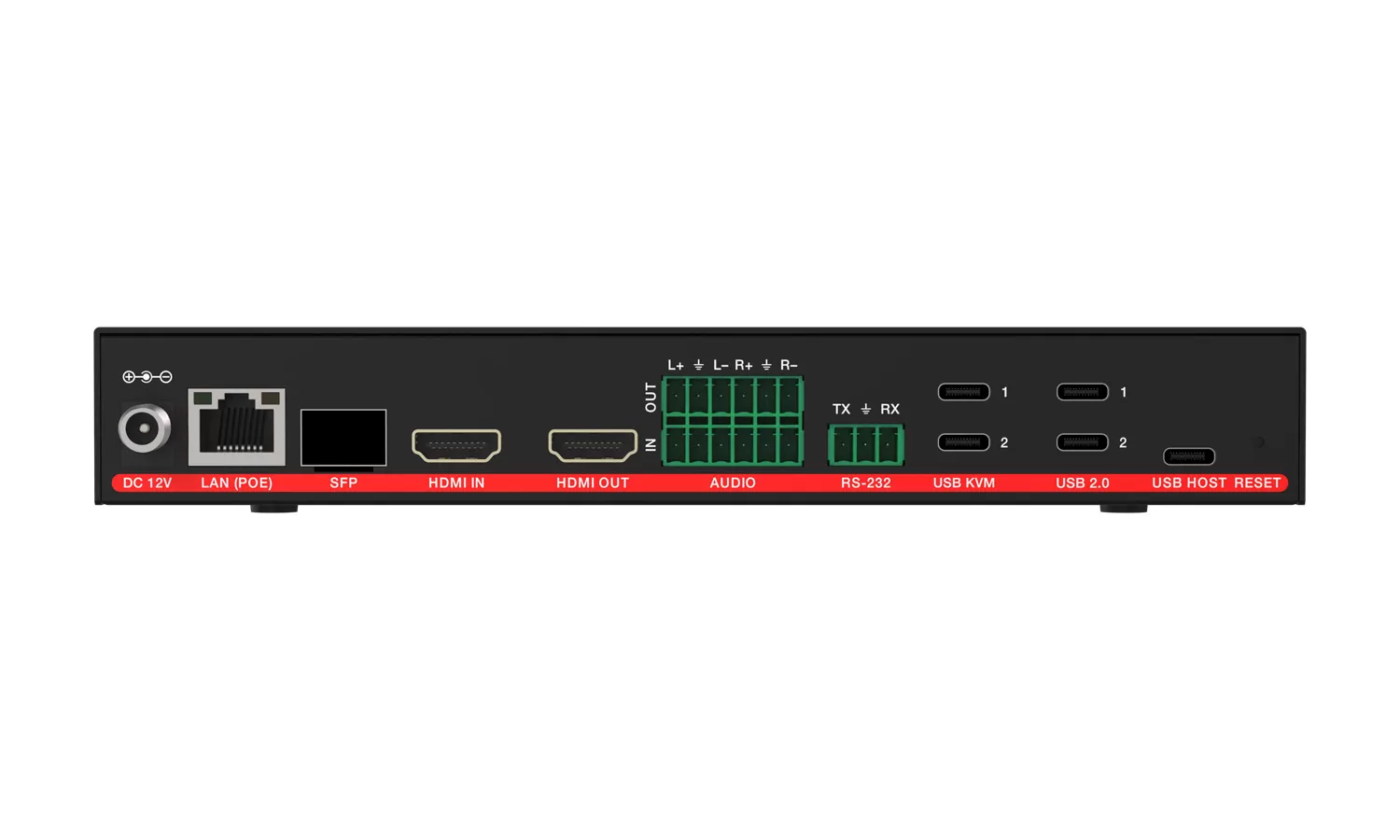

(Note: The decoder supports custom resolution output.)Color SpaceRGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0Color Depth8/10/12bitEncoding Sampling Rate48KHzHDMI Audio FormatsLPCM 2.0CH, 16bit, 48kAnalog Audio FormatsLeft and right stereo analog audioESD ProtectionHuman-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)ConnectionInput1x HDMI IN [Type A, 19-pin female]
2x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface]Output1x HDMI OUT [Type A,19-pin female]
2x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface]Control1x LAN (POE) [RJ45, supporting POE]
1x RS-232 [3-pin phoenix connector]
1x USB HOST [Type B, 4-pin female]
2x USB DEVICE [Type A, 4-pin female]
1 x SFP [Fiber slot]MechanicalHousingMetal EnclosureColorBlackDimensions (W x D x H)8in x 5.2in x 1.2in [204mm x 131.5mm x 30mm]Weight1.7 lbs [760g]Power SupplyInput: AC 100 - 240V 50/60Hz
Output: DC 12V/2.5A
(US/EU standards, CE/FCC/UL certified)Power ConsumptionEncoder: 10.22W; Decoder: 7.04WOperating Temperature0°C ~ 40°C / 32°F ~ 104°FStorage Temperature-20°C ~ 60°C / -4°F ~ 140°FRelative Humidity20~90% RH (non-condensing)
