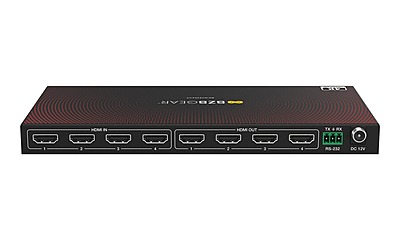

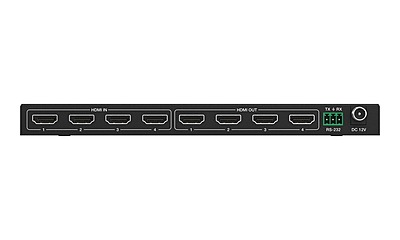

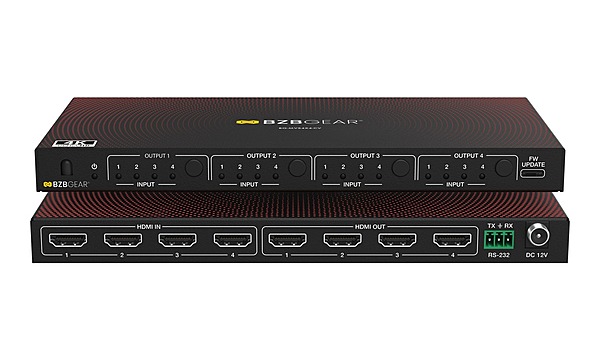

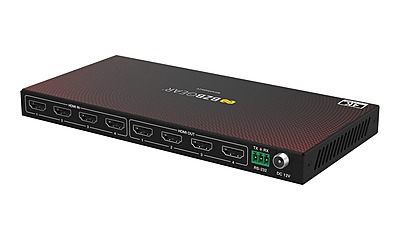

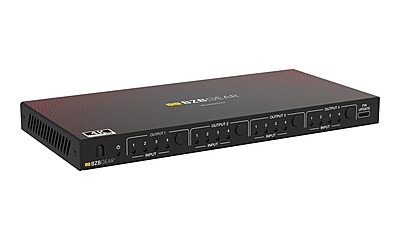

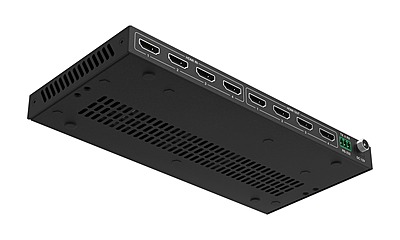

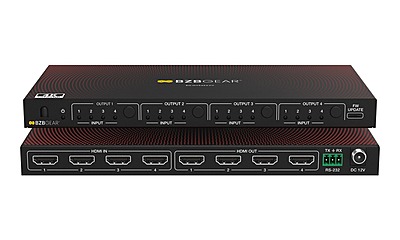

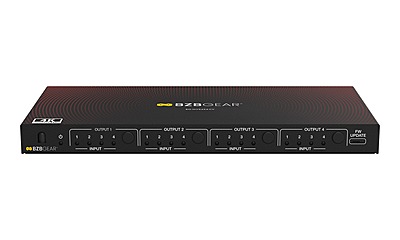

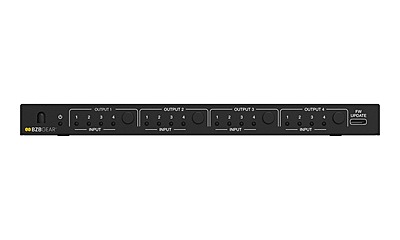

BG-MVS4x4-CV | 4K HDMI Matrix Switcher and Video Wall Processor
Overview
The BG-MVS4X4-CV is a versatile 4x4 seamless HDMI matrix switcher that doubles as a powerful video wall processor, offering flexible video routing and advanced display configurations. In matrix switcher mode, any of the four HDMI inputs can be routed to any of the four HDMI outputs with zero switching delay or image loss. In video wall mode, the unit can split a single HDMI source across 2 to 4 screens, supporting configurations such as 2×2, 4×1, or 1×4 to create an engaging large-format display.
Engineered for high-performance AV applications, the BG-MVS4X4-CV supports input resolutions up to 4K@30Hz and features seamless switching technology for smooth transitions. HDMI output resolutions can be upscaled or downscaled to 720p, 1080p, 1920×1200, or 4K@30Hz, ensuring compatibility with a wide range of display devices. Audio support includes LPCM, Dolby Digital, Dolby Digital Plus, and DTS formats.
Control is simple and flexible via front panel buttons, IR remote, or RS-232 commands. With HDCP 1.4 compliance, 10.2Gbps video bandwidth, and a compact design for easy installation, this multifunctional switcher is ideal for video conferencing, digital signage, live events, classrooms, and control rooms.
Features
Flexible Output ScalingOutput resolutions can be upscaled or downscaled to 1080p, 720p, 1920x1200, or 4K@30Hz
4x4 Matrix ModeSeamless switching of any input to any output
Video Wall ModeSupports configurations such as 2x2, 4x1, 1x4, and more
Seamless SwitchingInstant transitions with no delay or image loss
Audio Format SupportCompatible with LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), and DTS
Versatile Control OptionsManage via front panel buttons, IR remote, or RS-232 commands
- HDCP Compliance: Fully compliant with HDCP 1.4 for secure content transmission
- High Bandwidth Support: Handles video bandwidth up to 10.2Gbps
- Advanced Video Wall Features: Includes image mirroring for flexible display setups
- Input Resolution: Supports HDMI input resolutions up to 4K@30Hz
- Compact Form Factor: Space-saving design for easy integration into any AV environment
