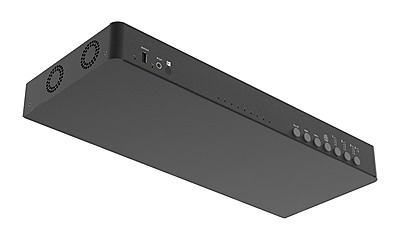

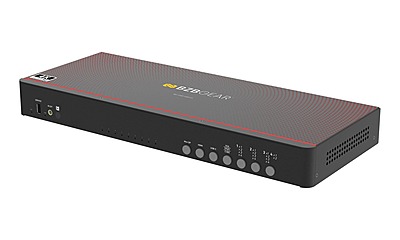

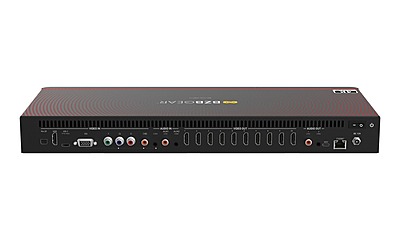

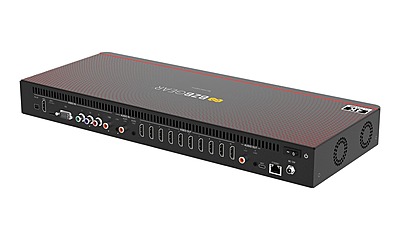

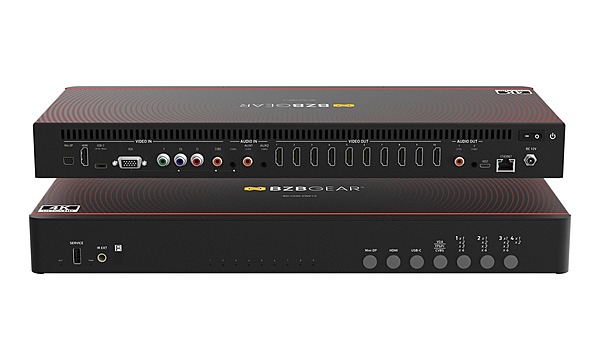

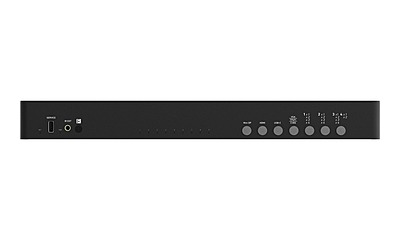

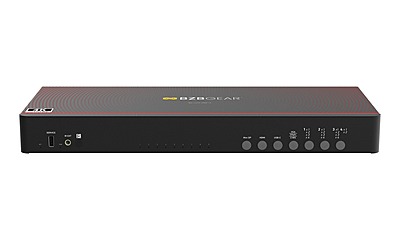

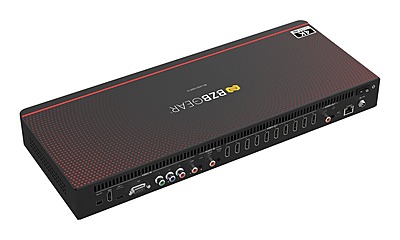

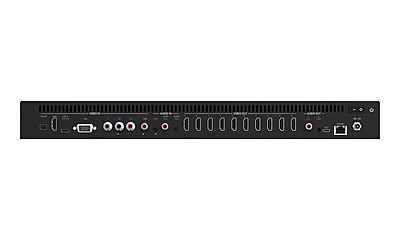

BG-UHD-VWP19 | 4K 1x9 HDMI Video Wall Processor with Seamless Switching/Scaling
Overview
The BG-UHD-VWP19 is a professional-grade multi-format video wall processor engineered for maximum versatility and performance in large-scale display environments. Designed to handle a broad range of input sources - including HDMI, DisplayPort 1.4, USB-C, VGA, YPbPr, and CVBS - it supports ultra-high-definition video up to 4K2K@60Hz (YUV 4:4:4). With nine HDMI outputs for display configurations and an additional HDMI loop-out, it enables both direct source monitoring and dynamic multi-screen layouts for digital signage, broadcast, and control room applications.
Built for flexibility, this processor allows users to resize, rotate, and position content across multiple displays to form complex video wall arrangements such as 3x3 layouts in full 4K resolution. With onboard memory for storing display presets and multiple control options - including front-panel buttons, IR remote, and PC software - the BG-UHD-VWP19 provides an intuitive and powerful platform for real-time video wall management in professional AV installations.
Features
Multi-Format Input SupportAccepts HDMI, DisplayPort, USB-C, VGA, YPbPr, and CVBS signals for flexible source compatibility
Nine HDMI Outputs with Loop-ThroughDelivers nine HDMI outputs for video walls plus one HDMI bypass output from the selected input
4K UHDHandles resolutions up to 3840x2160/4096x2160 @60Hz (YUV 4:4:4, progressive) for exceptional image quality
3x3 Video Wall SupportDisplays a full 4K60 source across nine displays with independent scaling and positioning per output
Advanced Image ControlResize, zoom, and position functions available on every output for precise display customization
Flexible Control OptionsOperate via front-panel keys, IR remote, or software for convenient configuration and management
- VGA input supports resolutions up to 1920x1080p60 (TV) and UXGA 1600x1200 (PC)
- YPbPr input up to 1920x1080p; CVBS input up to SECAM
- User-selectable HDMI output resolutions from 720x480 to 3840x2160
- Input rotation support up to 1080p60 resolution
- Stores multiple display layouts and configurations in onboard flash memory
- Fully compliant with HDCP, DisplayPort 1.4, and HDMI 2.0a standards
- Firmware upgradeable for future functionality enhancements
- Individual propagation delay adjustment per display for fine-tuned synchronization
- Frame tearing prevention ensures seamless playback across all screens
