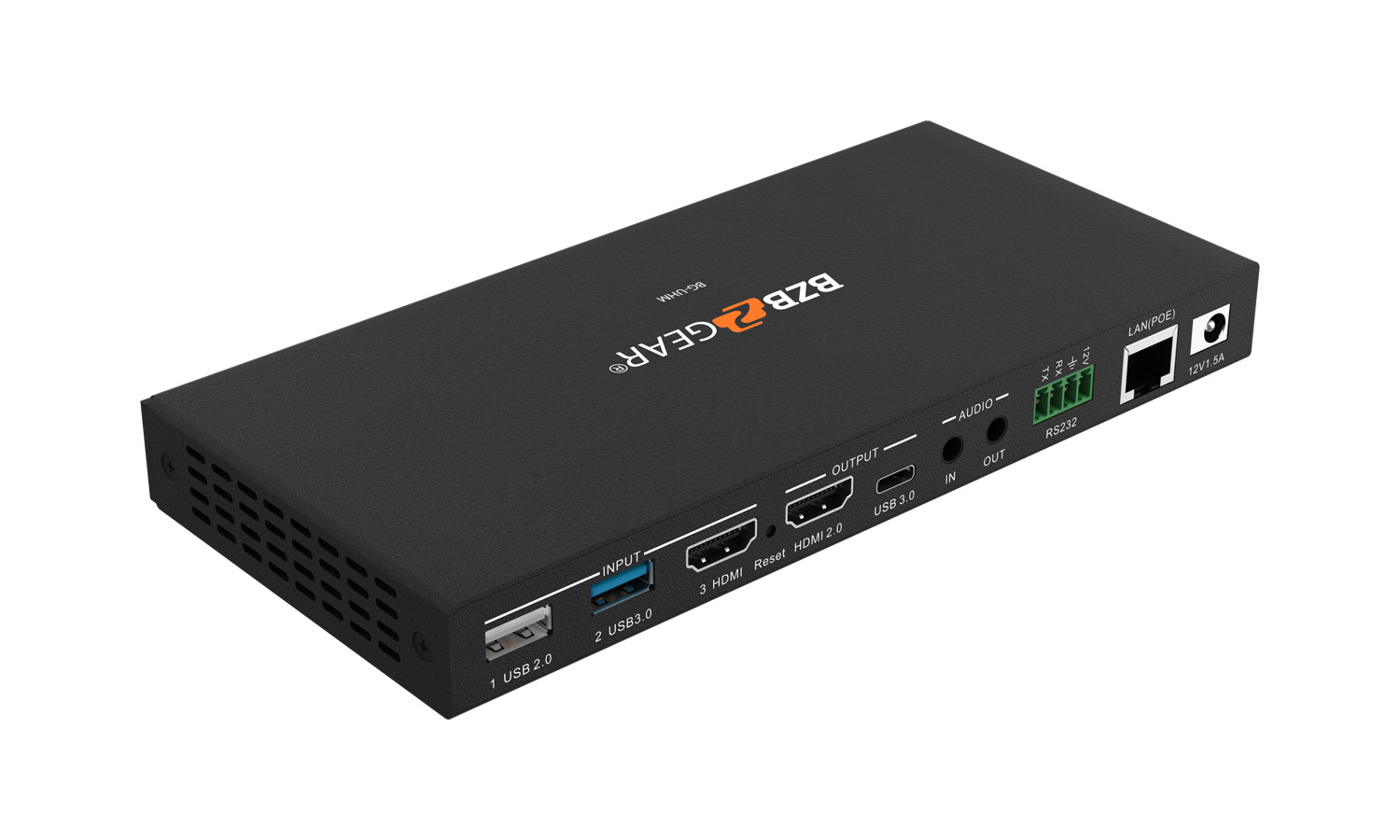

BG-UHM | USB/HDMI Video Selector and Mixer
Overview (! Pre-Order - Shipping Q2 2025)
The BG-UHM USB/HDMI Video Selector and Mixer is a versatile and feature-rich solution designed to meet the demands of modern video production environments. Engineered for seamless integration, this compact device allows users to connect, switch, and mix multiple video sources effortlessly, offering unparalleled flexibility and functionality in a single unit.
The BG-UHM supports up to three video sources, including USB 3.0, USB 2.0, and HDMI inputs, enabling users to integrate diverse devices like webcams, laptops, and document cameras. With its customizable video mixing options, the BG-UHM delivers professional-quality results, allowing users to create unique layouts such as Picture-in-Picture (PiP), side-by-side, and big and small overlays. These layouts can be easily configured through a user-friendly web interface, making the device suitable for both novice and experienced users.
Features

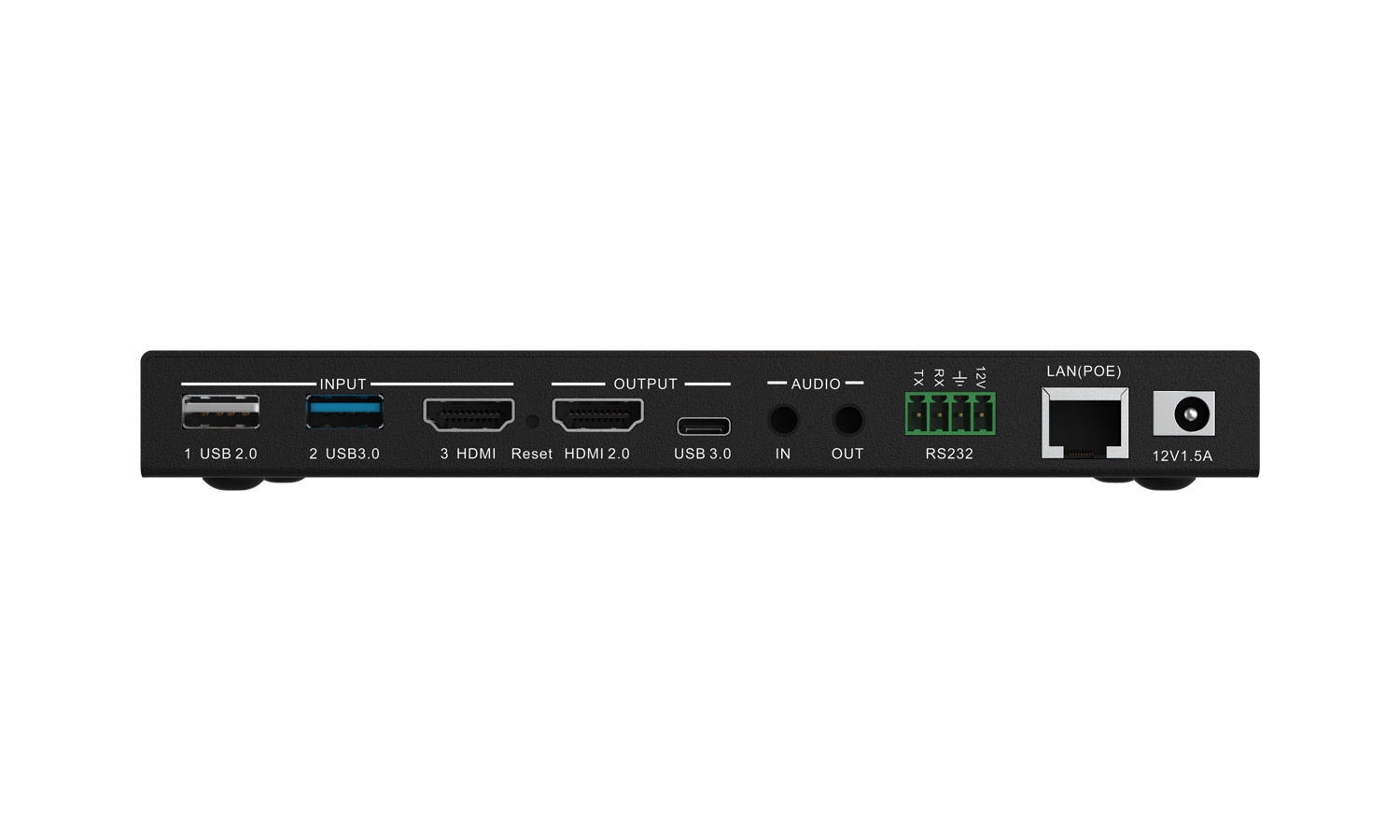

Multi-Source Connectivity1x USB 3.0, 1x USB 2.0, 1x HDMI 1.4
Customizable Video MixingBlend up to two input sources into a single output with layouts such as Picture-in-Picture (PiP), side-by-side, and overlay options. Layouts are fully configurable via the intuitive web interface
Output Flexibility1x HDMI 2.0 output, 1x USB-C (UVC/UAC) output
Audio ManagementIntegrated audio mixing with inputs via HDMI, USB, and analog jacks. Mute video/audio streams as needed for precise control over live broadcasts
Advanced Control OptionsManage the device via LAN, RS-232, or the web-based GUI for ultimate flexibility
PoE SupportPower the device via PoE (802.3af), reducing cable clutter and simplifying installation
