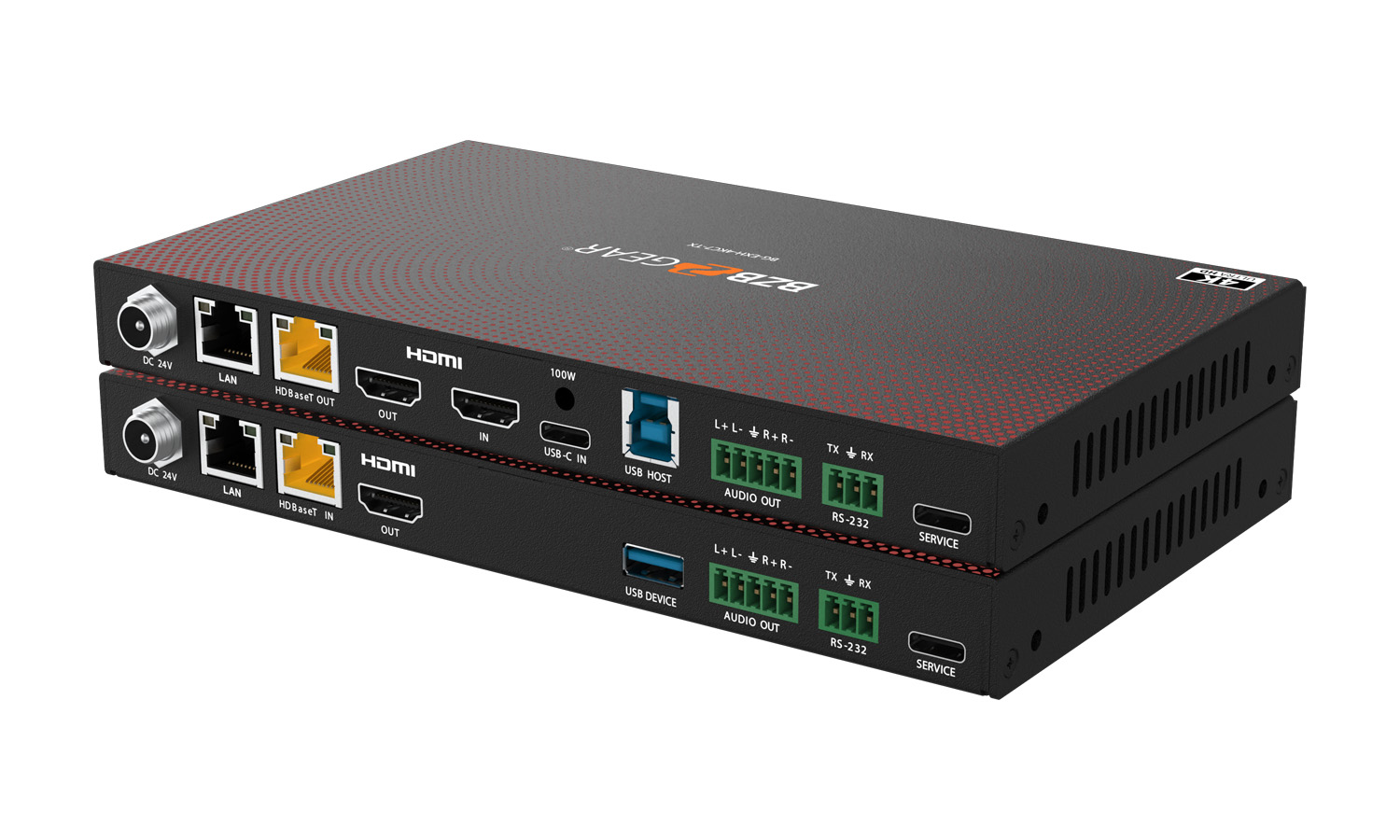

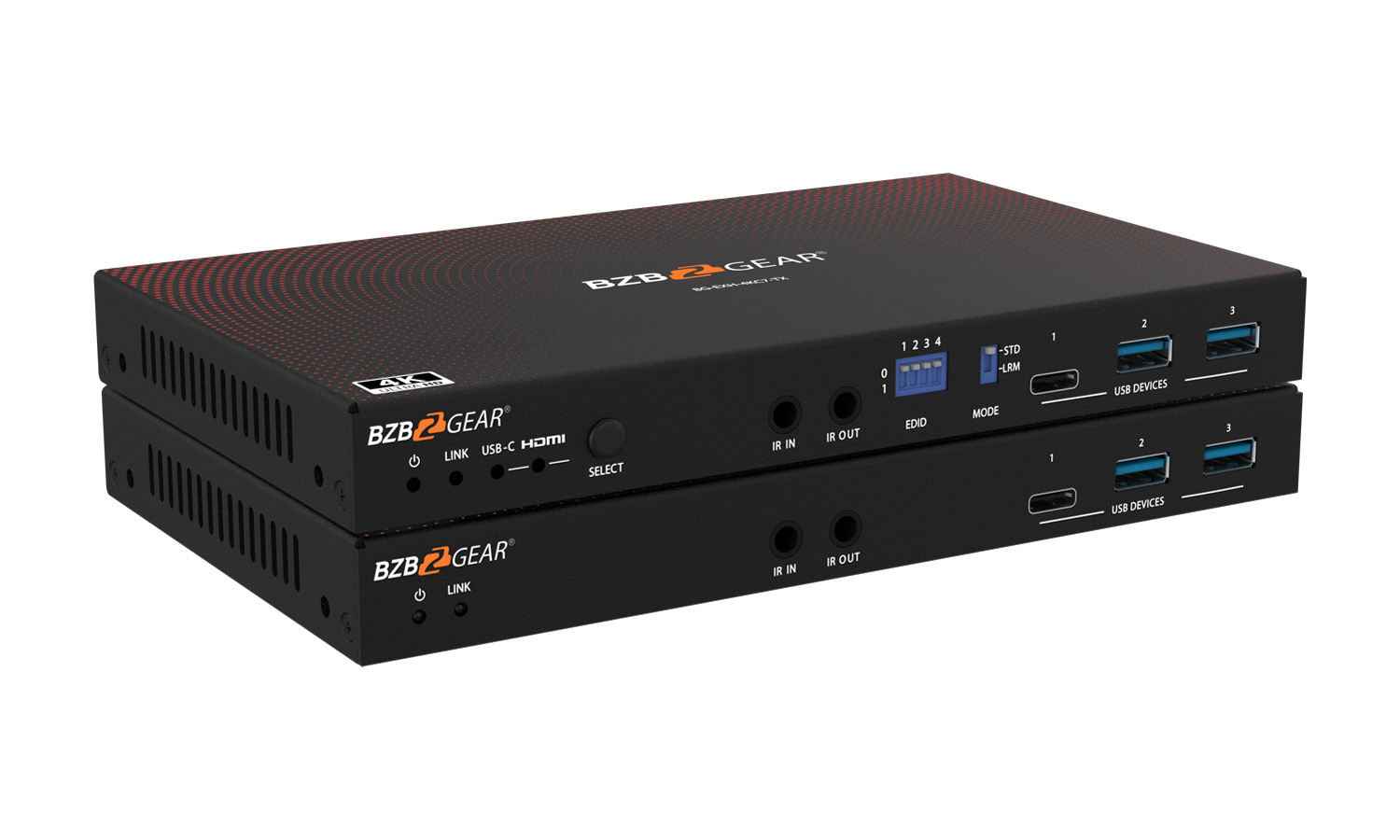

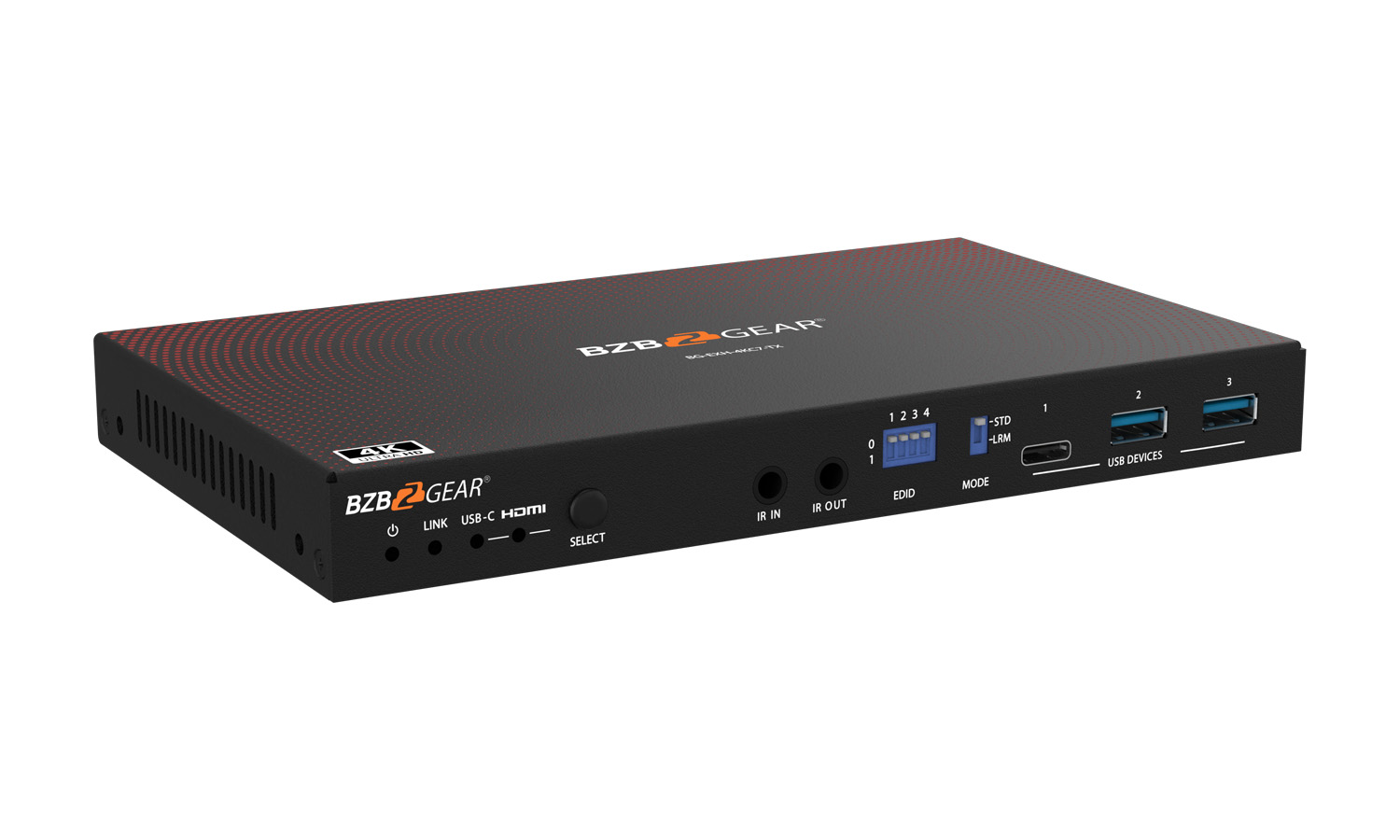

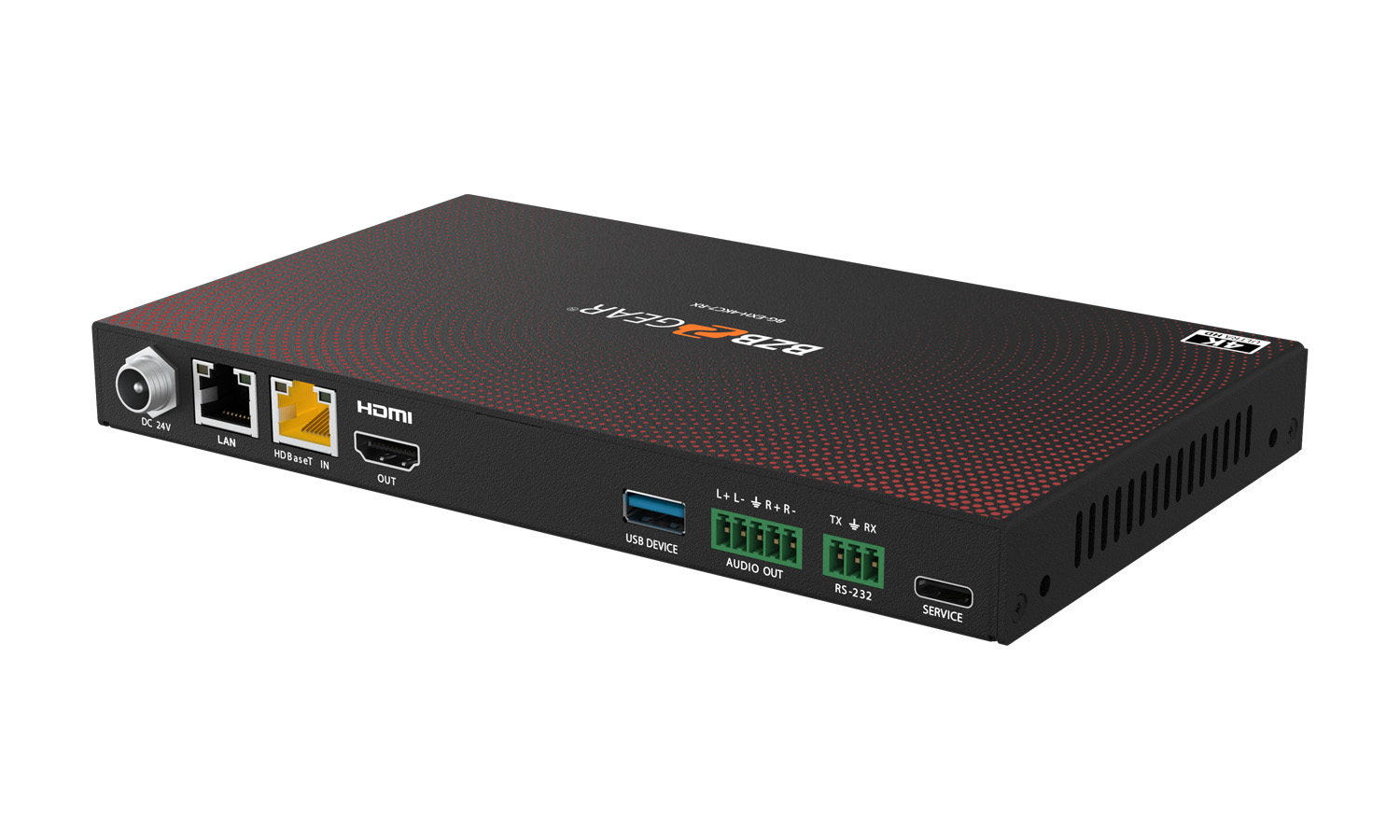

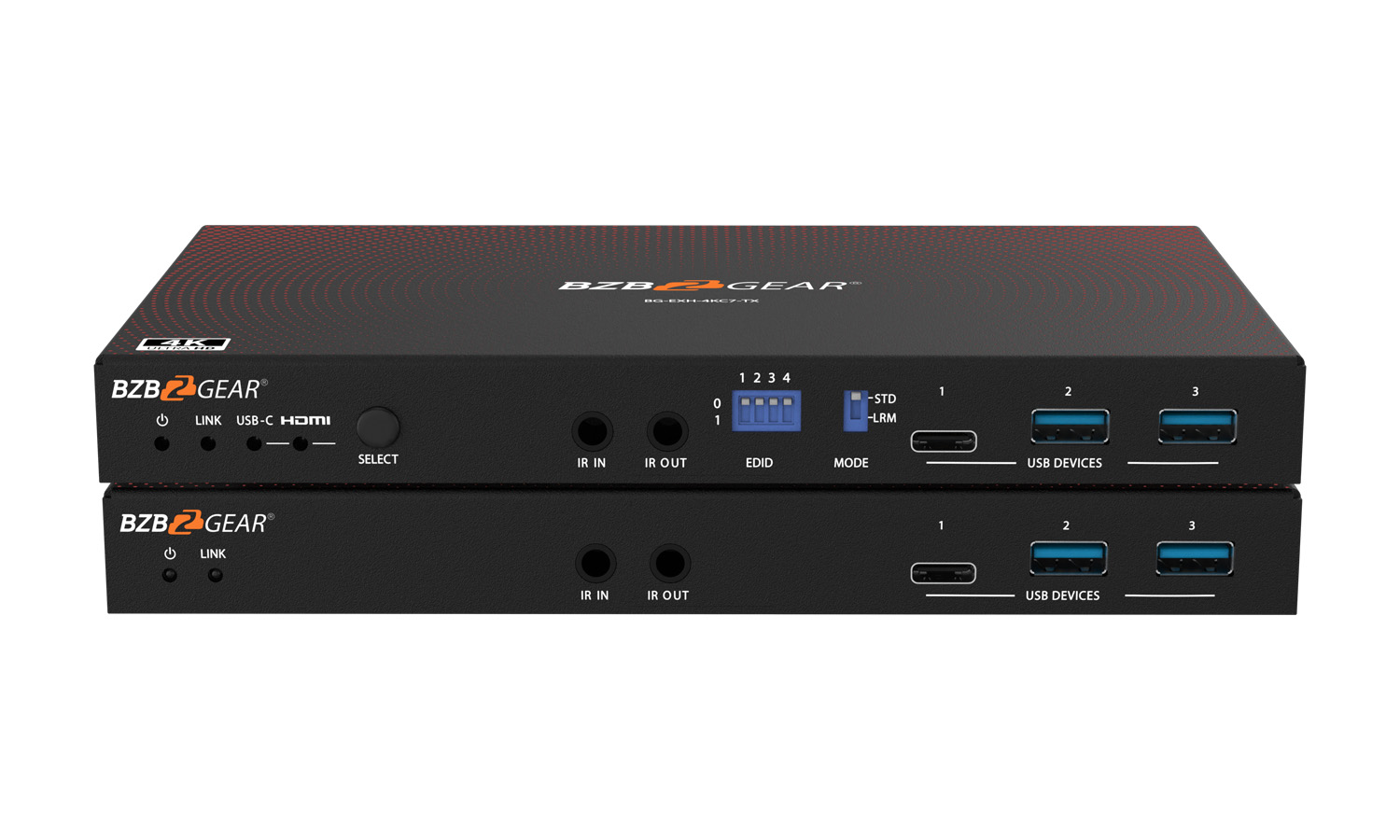

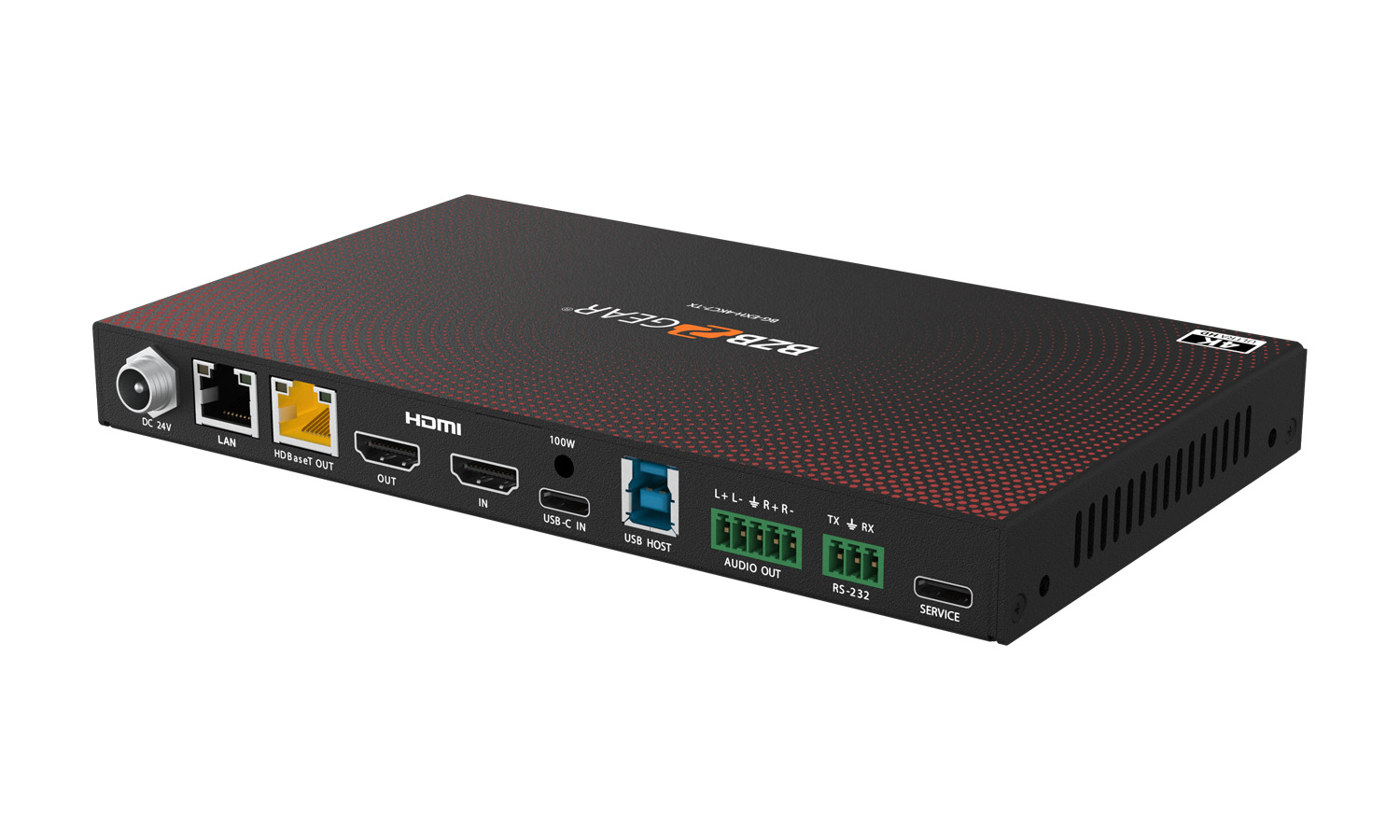

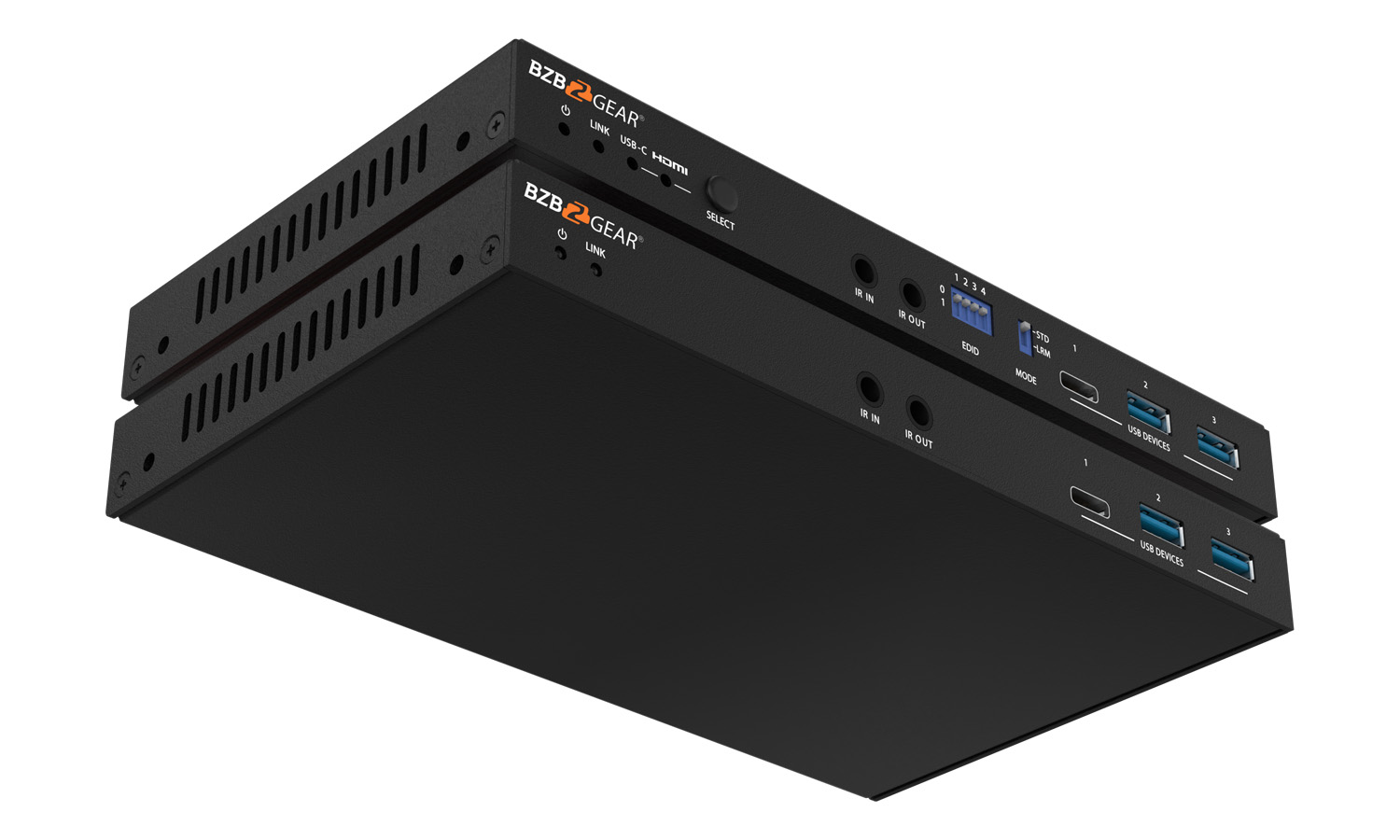

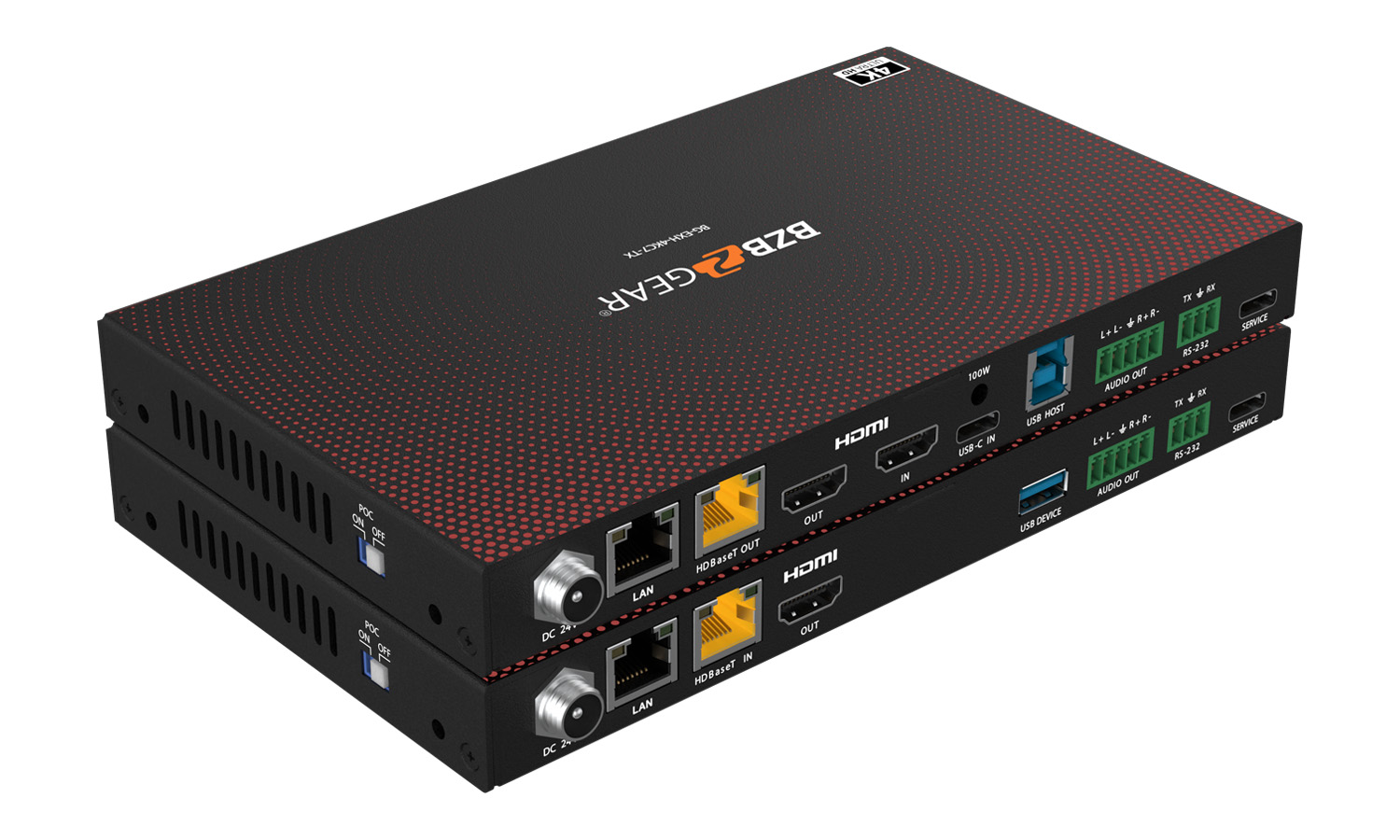

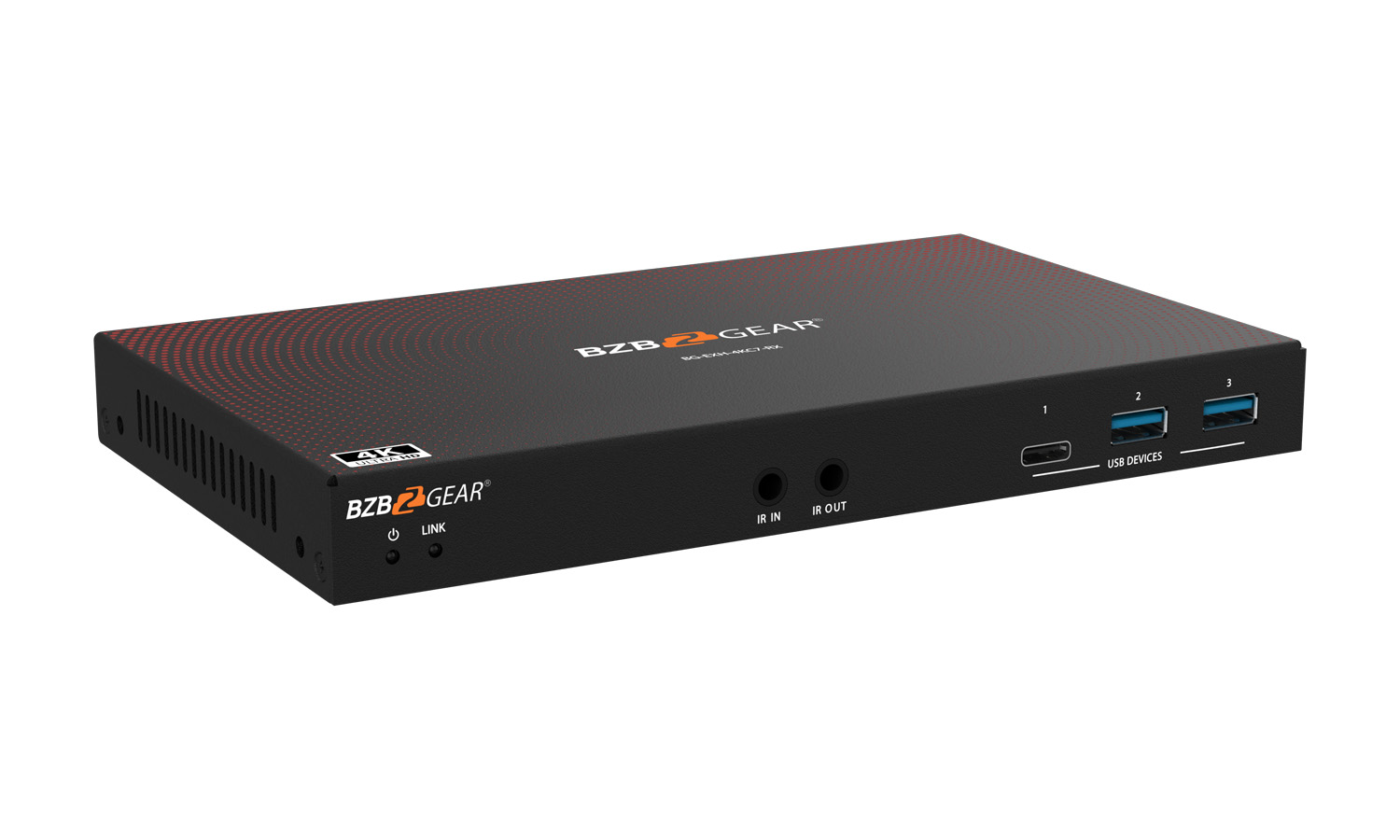

BG-EXH-4KC7 | 4K UHD HDMI/USB-C KVM HDBaseT 3.0 Extender/Switcher
Overview (! Pre-Order - Shipping Q2 - 2025)

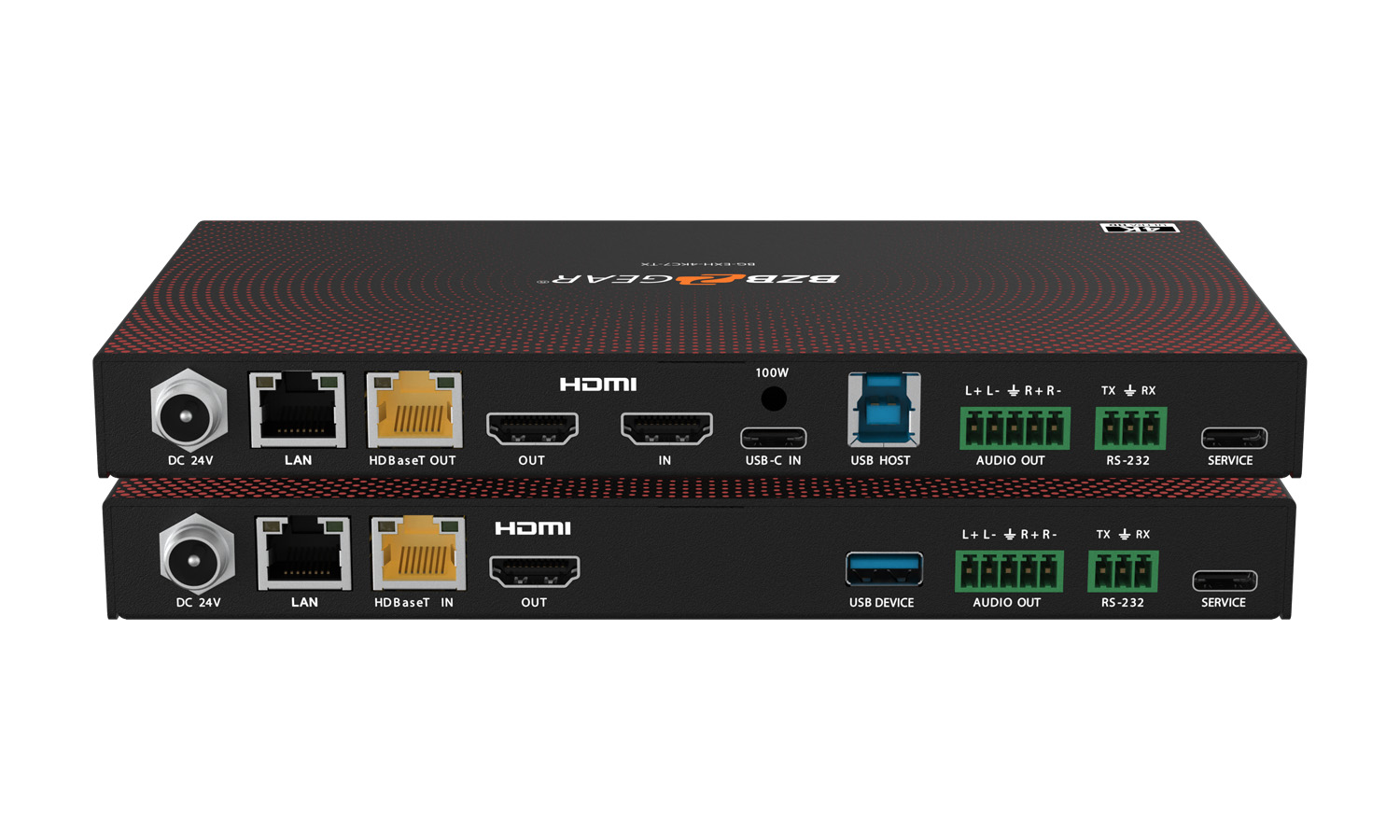

The BG-EXH-4KC7 is a high-performance HDBaseT 3.0 extender designed to deliver 4K60Hz 4:4:4 HDR video and USB-C/HDMI connectivity over distances of up to 100 meters via CAT6A/7 cables. Featuring dual inputs (USB-C and HDMI) with auto/manual switching, the transmitter supports DP-ALT mode for audio/video transmission, USB 3.0, 1G Ethernet, and up to 100W power delivery. The receiver offers flexible outputs with HDMI or USB-C and includes USB 2.0 ports for peripherals. Advanced HDR formats, such as HDR10+, Dolby Vision, and HLG, ensure stunning video quality, while analog audio de-embedding on both the transmitter and receiver simplifies audio integration.
Packed with professional-grade features, the BG-EXH-4KC7 includes RS-232 and CEC control, API support, and 1G Ethernet pass-through for seamless system integration. It supports bidirectional Power over Cable (PoC) for streamlined installations and offers long-reach HDBaseT functionality, extending 1080p60 signals up to 150 meters. With robust performance and versatile applications, this extender is ideal for conference rooms, educational institutions, and professional AV environments demanding reliable, high-quality signal transmission.
Features
Advanced HDR SupportCompatible with 4K60Hz 4:4:4, HDR10+, Dolby Vision, HLG, and Low Latency Mode (LLM)
Long-Distance TransmissionTransmits 4K60Hz signals up to 100m over CAT6A/7 cables
Versatile USB-C InputDP-ALT mode enables USB 3.0, 1G Ethernet, and up to 100W charging
Integrated Audio ExtractionAnalog audio de-embedding available on both TX and RX units
Seamless AutomationRS-232 pass-through and API support for integration into control systems
Simplified Power ManagementBidirectional 24V Power over Cable (PoC) minimizes power supply needs
