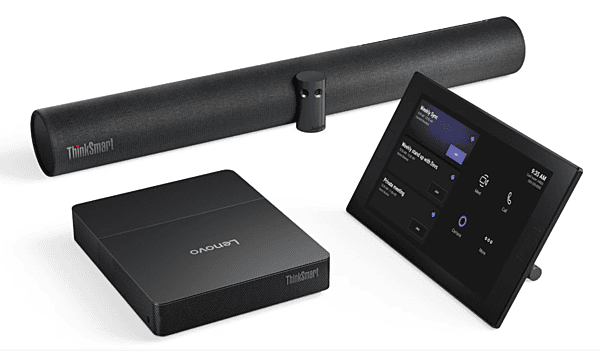

Lenovo ThinkSmart Core Gen 2 Kit Bar180 + USB Controller
Non-returnable
€3.597,00 €3.971,00
ThinkSmart Core Gen 2 for Microsoft Team Rooms
| Up to Intel® Core™ Ultra 7 165H | |
| Microsoft® Teams Rooms | |
| Intel® Arc™ Graphics (integrated) | |
| Up to 32GB DDR5 5600 SODIMM | |
| 256GB SSD |
Choose Quantity
Product Details
| Features | Information |
|---|---|
| Processor (Two Options) | (Optional 1) Intel Core™ Ultra 5 135H, 14C (4P + 8E + 2LPE) / 18T, Max Turbo up to 4.6GHz, 18MB (Optional 2) Intel Core™ Ultra 7 165H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 5.0GHz, 24MB |
| Operating System | Windows® 11 IoT Enterprise for Collaboration GAC 64 |
| Graphics | Integrated Intel® Arc™ Graphics. Max Resolution: 3840x2160@60Hz(HDMI® 2.1 TMDS) |
| Chipset | Intel® SoC (System on Chip) platform |
| Memory (Two Options) | (Optional 1) 16GB (2x 8GB) DDR5 5600 SODIMM, Dual-Channel (Optional 2) 32GB (2x 16GB) DDR5 5600 SODIMM, Dual-Channel |
| Storage | One drive, 256GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Power Supply (Two Options) | (Optional 1) 135W 89% Adapter, autosensing, without BYOM (Optional 2) 170W 89% Adapter, autosensing, with BYOM |
| Onboard Ethernet | Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ45 (Optional) 2.5GbE, Realtek® RTL8125BGS-CG, 1x RJ-45 |
| WLAN + Bluetooth® | Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card |
| Case Color | Black |
| Rear Ports | • 2x USB-C® (USB 10Gbps / 3.2 Gen 2), with 15W power supply and DisplayPort™ 1.4 • (Optional) 1x USB-C® in (USB 5Gbps / USB 3.2 Gen 1), with BYOM and 45W power supply • 3x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (Hi-Speed USB / USB 2.0), with IP controller • (Optional) 1x HDMI®-in • 2x HDMI®-out 2.1 TMDS • 1x Ethernet (RJ-45) • (Optional) 1x 2.5GbE Ethernet (RJ-45) • 1x Power connector |
| Dimension (WxDxH) | with cable management with rubber feet: 185 x 220 x 42.8 mm (7.28 x 8.66 x 1.69 inches) with cable management without rubber feet: 185 x 220 x 38 mm (7.28 x 8.66 x 1.5 inches) without cable management: 185 x 140 x 38 mm (7.28 x 5.51 x 1.5 inches) |
| Weight | with cable management: 1.01 kg (2.23 lbs) without cable management: 0.86 kg (1.90 lbs) |
| BIOS Security | • Supervisor password • Power-on password • Hard disk password |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Physical Locks | Kensington Security Slot™ |
