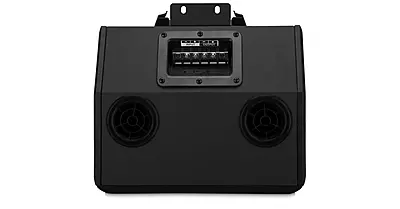

SR-1020 - Surround Loudspeaker
Features
High performance for medium to large cinemas
Directivity Matched Transition® (DMT) provides balanced sound between woofer and horn
Axisymmetric horn
10-inch (254 mm) woofer with 2" (50 mm) voice coil
1.4-inch (35 mm) titanium diaphragm compression driver
Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
High-power handling capability meets the demands of D-Cinema soundtrack reproduction
SPECIFICATIONS | SR-1020 |
Frequency Range 1 |
|
Rated Coverage Angle (-6 dB) | 90° axisymmetric |
|
|
Maximum Rated SPL 4 |
|
Rated Impedance | 8 ohms |
Rated Noise Power 2 | 300 watts continuous |
Sensitivity 2.83 V at 1 m, free-field 3 | 94 dB |
Crossover Frequency | 1.9 kHz |
Recommended Processing | Subsonic filter at 50 Hz as provided by QSC DCA amplifiers |

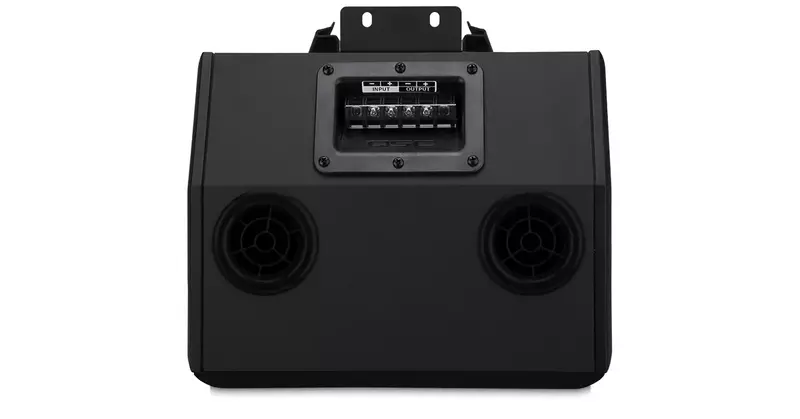

Connectors | Barrier strip screw terminals accept up to #10 AWG stranded wire |
Transducers | 1.4" (35 mm) titanium diaphragm compression driver |
Enclosure | MDF, baffle angle is 15° downward |
Dimensions (HWD) inches | 19.5 x 15.8 x 10.2 |
Dimensions (HWD) mm | 495 x 401 x 259 |
Weight | 27.3 lb (12.3 kg) |
1 Free-field, -10 dB from on-axis sensitivity
2 IEC60268-1 noise signal for 2 hours
3 On-axis, free-field sensitivity, 2.83V at 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
