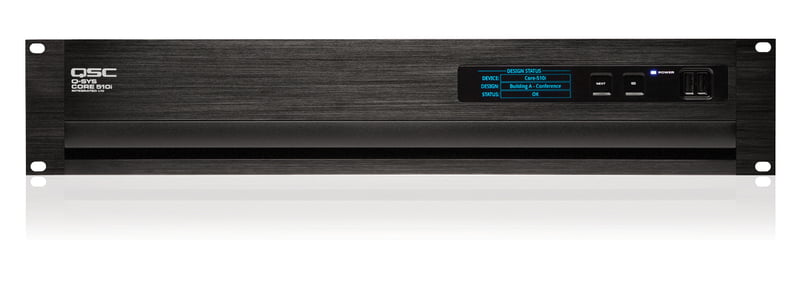

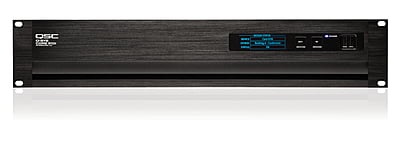

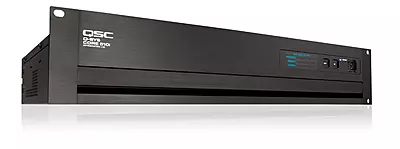

Core510i - Q-SYS Integrated Core Processor
The Q-SYS™ Core 510i processor is an audio, video and control processing system that leverages Intel™ CPUs and motherboards as well as a dedicated, Linux™ realtime operating system developed by Q-SYS to provide class-leading capabilities for AV systems of any scale.
The Q-SYS Core 510i processor offers the most flexible audio I/O of any Q-SYS Core, perfect for applications that require a diversity of analog, digital and networked audio connectivity. It features eight onboard I/O card slots that can be populated with any combination of Q-SYS Type-II I/O card allowing diverse connectivity options.
The Q-SYS™ Core 510i processor is an audio, video and control processing system that leverages Intel™ CPUs and motherboards as well as a dedicated, Linux™ realtime operating system developed by QSC to provide class-leading capabilities for AV systems of any scale.
Features & Benefits
256 x 256 networked audio channels (Q-LAN / AES67)
Configurable onboard I/O via 8 open Q-SYS IO Cards slots
64 x AEC processors
Supports up to 14x Q-SYS NM-T1 network microphones
up to 128 x 128 Dante audio channels (8 x 8 included)
Full-featured Q-SYS Control engine (with optional feature license)
16 x 16 GPIO
Q-SYS Operating System: Audio, video and control processing on a dedicated Linux™ realtime OS, built using standard computer hardware and IT industry networking protocols.
Diverse I/O Options: Q-SYS Core processing in a flexible chassis featuring 8 onboard I/O card slots that can be populated with any combination of Q-SYS I/O cards, including bridge networks like Dante™ for maximum flexibility.
Q-SYS Core Mode: Provides an abundance of raw processing power for all audio, video and control processing requirements including integration with the new Q-SYS AV-to-USB Bridging solution and onboard acoustic echo cancellation (AEC) processing, allowing the ability to manage multiple small- to mid-sized conference spaces or a single large space.
I/O Frame Mode: Offers the ability to integrate up to 128 x 128 audio channels in to the Q-SYS system for processing on a separate Q-SYS Core processor.
External Device Control: Control and interface with external devices using TCP/IP, RS232 and GPIO.
Peripheral Integration: The catalog of Q-SYS networked peripheral devices include amplifiers, touchscreen controllers, paging stations, I/O channel expanders, network cameras, network microphones and network loudspeakers.
Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems. The Q-SYS Platform also allows for faster compliance with changing security environments.
System Hardware | Q-SYS Core 510i Integrated Processor |
Description | System processor and control engine with integrated I/O (or I/O Frame peripheral in "I/O Frame mode") |
Channel Capacity | |
Network Channel Capacity | 256 × 256 |
Audio I/O Capacity | 8 audio I/O card slots - accommodates up to 128 × 128 total onboard I/O channels |
AEC Channel Capacity | 64 at 200ms tail length (available in "Q-SYS Core mode" only) |
Q-SYS NM-T1 capacity | 14 |
Multitrack Player Capacity | 16 tracks, expandable to 128 tracks (available in "Q-SYS Core mode" only) |
Media Drive Capacity | Approximately 6 GB on the default drive (accessible in "Q-SYS Core mode", upgrade options are available) |
Controls | |
Front Panel Controls | "NEXT” OLED page forward capacitive touch button |
Front Panel Connectors | AUX USB: USB Host × 2 (Type A connectors) |

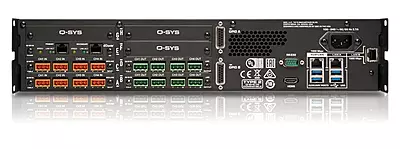

Rear Panel Connectors | RS232: Male 9-pin D shell connector (DE-9) |
Line Voltage | 100 VAC - 240VAC, 50-60 Hz |
Current Draw | 3.7A Max @100 VAC (actual current draw depends on configuration options such as I/O cards and/or Media Drive, DSP loading and network loading) |
Operating Temperature Range | 0°C - 50°C |
BTU/Hour | 600 (power conversion estimate under typical load) |
Humidty | 85% RH maximum |
Regulatory | FCC 47 CFR Part 15 Class A, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, RTL, UL, C-UL |
Product Dimensions | 89 × 483 × 381 mm |
Shipping Carton Dimensions | 165 × 597 × 508 mm |
Shipping Weight | 23 lb. minimum (installation of I/O cards increases shipping weight) |
Included Accessories | 6 ft UL/CSA/IEC line cord, installation manual, I/O connectors (included when purchasing I/O cards with Euro style terminal blocks) |
All specifications are subject to change without notice.
