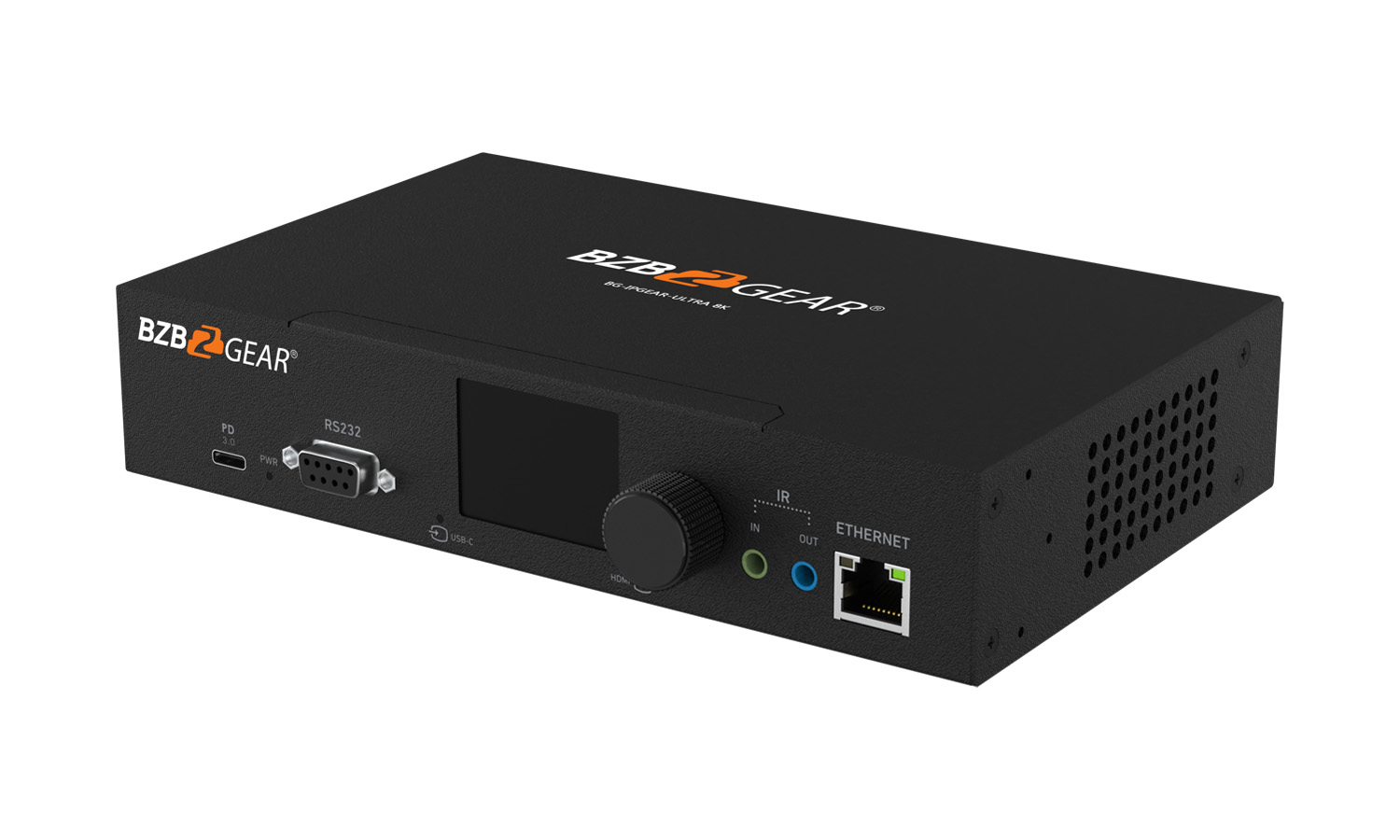

BG-IPGEAR-ULTRA8K | 8K UHD AV over IP Multicast Transceiver with Seamless Matrix Switching/Video Wall/MultiView/KVM
Overview
The BG-IPGEAR-ULTRA8K is a high-performance HDMI 2.1 over IP multicast transceiver system designed for seamless AV transmission over 1GbE networks. This system supports 8K@60Hz 4:2:2 DSC and 4K@144Hz 4:4:4, providing crystal-clear video and ultra-low latency, making it ideal for applications in gaming, broadcasting, healthcare, digital signage, and professional AV environments. With HDMI 2.1, USB-C (Alt Mode DP 1.4), and eARC/ARC compatibility, the BG-IPGEAR-ULTRA8K ensures broad device support and superior compatibility.
Additionally, its KVM functionality enhances control over multiple devices, while the system’s compact form factor, rugged metal enclosure, and efficient power management make installation easy and reliable in demanding environments.
Features
Ultra-HD ResolutionUp to 8K@60Hz (4:2:2 DSC) & 4K@144Hz (4:4:4)
Video Wall SupportAdvanced functionality with image rotation & flipping
Multi-View ModesPiP, PbP, & PoP (Chroma Key) for enhanced display options
Audio Format SupportDTS-HD Master Audio & Dolby TrueHD high bit-rate audio
Multi-Input SupportUSB-C (Alt Mode DP 1.4) with simultaneous HDMI & DisplayPort input
Software ManagementSupports configuration, firmware updates, and signal management
- Video Standard Compliancy: Supports HDMI 2.1 & HDCP 2.3 for high-quality streaming
- Gaming Optimization: VRR & ALLM for smooth, low-latency performance
- Extended Transmission: Up to 100m (330ft) over Cat.6A cable
- Encoding & Decoding: Multi-Encode & Decode with proprietary codecs
- Ultra-Low Latency: Less than 1 frame for real-time applications
- High-Quality Audio: Uncompressed 7.1-channel digital HDMI over Cat.6A
- Audio Pass-Through: Bi-directional analog audio pass-through & eARC/ARC support
- Seamless Switching: Zero interruptions during signal transitions
- Custom Scaling: Adjustable scaling for optimized display output
- IR Control: Bi-directional full-frequency IR (20KHz - 60KHz) support
- RS-232 Control: Full duplex RS-232 with speeds up to 115,200 bps
- KVM Functionality: Mouse roaming support for seamless control
- Network Connectivity: Integrated 1G LAN port for efficient networking
- Reliable Networking: Cat.6A extension & IGMP Snooping for smooth data transmission
