TSC-101-G3 - 10"Q-Sys Touch Screen Controller
Non-returnable
€3.250,00
Tags:

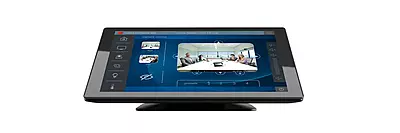

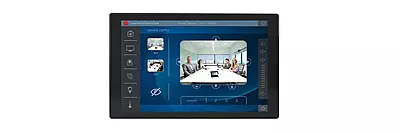

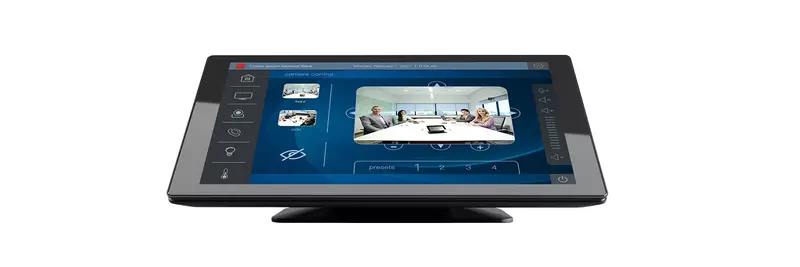

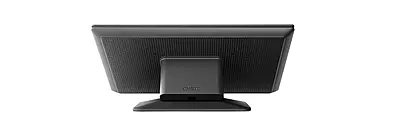

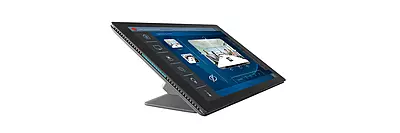

Q-SYS 10.1” PoE Touch Screen Controller for In-Wall Mounting. Color - Black only
Features
- Robust Responsiveness: Projective Capacitive (PCAP) Multi-Touch Surface with 24-bit Color Display
- High Resolution Display: 1920 x 1200 px with 380 Nits (brightness)
- Power Over Ethernet: Allows for simplified single cable installation
- Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
- Versatile: Ability to operate in portrait or landscape orientation
- UCI Editor:
- Easy Drag and Drop Interface: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
- Complete Design Freedom: Build more dynamic UCI themes and apply global styles across multiple UCIs with CSS-based styling. Enables easier deployment of uniform UCIs across an organization.
- Convenient License Activation: Deploying a UCI to an active Q-SYS system requires the UCI Deployment feature license.
- AV Bridging: Connect a device to the TSC Series Gen 3 USB-C connector to integrate Q-SYS audio and camera feeds for remote meetings. Learn more about the AV Bridging feature license.
VAT
Not Included Choose Quantity
Product Details
TSC-101-G3 Display Description Projective capacitive (PCAP) multi-touch, Power over Ethernet, 24-bit color display. Panel Dimensions (H×W×D) 6.2 x 9.97 x 1.54 inch
253.2 x 158.5 x 39.1 mm Viewable Screen Dimensions (diagonal) 10.07 inch / 255.8 mm Resolution 1920 × 1200 Wallmount Option Yes Table Top Option Yes, TSC-710t-G3 accessory sold separately Panel Orientation Vertical / horizontal on wall;
horizontal only on stand Brightness 380 Nits Power PoE (Power over Ethernet) PoE+ Class 4 Weight Product Weight (net) 1.9 lb (0.87 kg) Environment Operating Temperature 0°C - 50°C (32°F - 122°F) BTUs 47 typical Humidity 5% to 85% RH, non-condensing Rear Panel LAN (1x RJ45) 1 Gbps
| TSC-101-G3 | |
| Display | |
| Description | Projective capacitive (PCAP) multi-touch, Power over Ethernet, 24-bit color display. |
| Panel Dimensions (H×W×D) | 6.2 x 9.97 x 1.54 inch 253.2 x 158.5 x 39.1 mm |
| Viewable Screen Dimensions (diagonal) | 10.07 inch / 255.8 mm |
| Resolution | 1920 × 1200 |
| Wallmount Option | Yes |
| Table Top Option | Yes, TSC-710t-G3 accessory sold separately |
| Panel Orientation | Vertical / horizontal on wall; horizontal only on stand |
| Brightness | 380 Nits |
| Power | |
| PoE (Power over Ethernet) | PoE+ Class 4 |
| Weight | |
| Product Weight (net) | 1.9 lb (0.87 kg) |
| Environment | |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| BTUs | 47 typical |
| Humidity | 5% to 85% RH, non-condensing |
| Rear Panel | LAN (1x RJ45) 1 Gbps |
