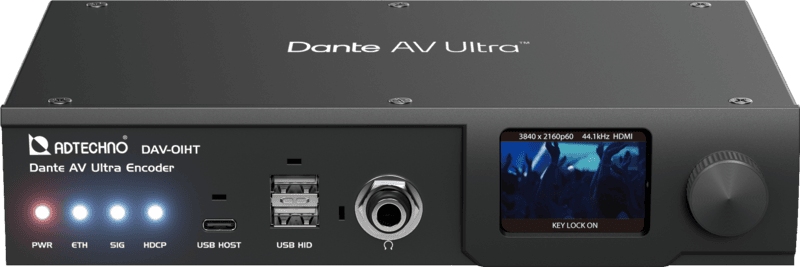

DAV-01HT - Dante AV-ULTRA HDMI Transmitter

• Transport up to 4K HDR UHD video sources with imperceptible subframe latency over 1GbE Network.

• Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.

• ProAV-optimized Colibri codec preserves visually lossless quality for video/moving pictures.

• Utilizing a single network clock enables perfect audio and video synchronization.

• The DAV-01ST features 12G-SDI and HDMI input ports (HDMI exclusive to DAV-01HT).

• The DAV-01SR features dual 12G-SDI and HDMI output ports per channel (DAV-01HR exclusively offering dual HDMI output).

• 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.

• Incoming audio check using a headphone output.

• Auto-downscaling and HDCP revision conversion on HDMI output ports.

• HDCP 1.x/2.x compliant with advanced EDID management.

• PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.

• EIA Rack mountable - 1U half-rack width.

• Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).
