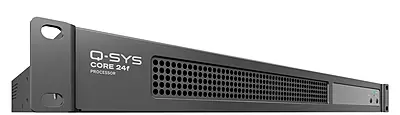

CORE 24f - Q-SYS network + analog I/O processor
The Q-SYS Core 24f ushers in the next-generation of Q-SYS processing capabilities, delivering a fully integrated audio, video, and control solution that enables a blank canvas to deliver unique experiences across a broad range of application types. Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing.
Q-SYS Core Processor with 24 local audio I/O channels, 160x160 total network I/O channels with 8x8 Software-based Dante license included, USB AV bridging, dual Ethernet ports for network redundancy plus two auxiliary Ethernet ports, two RS232 ports, 8x8 GPIO, 24 next-generation AEC processors, 1RU. Includes Scripting/UCI functionality.
Features & Benefits
Up to 160 x 160 network I/O channels
24 channels of analog I/O, including 8 software-definable Flex channels
8 x 8 GPIO to integrate third-party device control connectivity
Includes 8 x 8 Software-based Dante channels (licensable up to 64 x 64)
24x AEC channels @ 200 ms
Integrated AV bridging via USB-C
Two (2) 2.5 Gbps Ethernet ports for redundant networked audio (QLAN, AES67, VoIP, WAN, Media Streaming, etc.)
Two (2) 2.5 Gbps independent, auxiliary Ethernet ports
Supports up to ten (10) Q-SYS NM-T1 tabletop microphones
Host up to 8 instances of a VoIP softphone

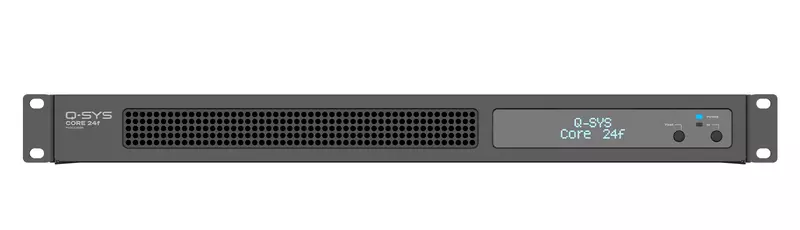

Includes OLED front display
1RU form factor
The Right Capabilities for Demanding Applications

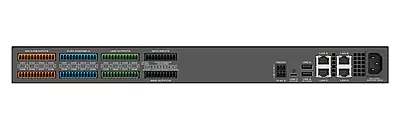

As the evolutionary successor to the Q-SYS Core 110f, the Core 24f expands on the foundation set by the industry’s first truly integrated audio, video, and control processor, offering a significant increase in processing power and updated I/O to meet the performance needs of modern AV environments. It features 24x onboard audio channels, integrated AV bridging via USB-C, GPIO and RS232 control connectivity and 4x network ports for a variety of applications requiring in-room processing.
Q-SYS Control is intrinsic to Q-SYS
The Core 24f processor leverages the full capabilities of the Q-SYS control engine without the need for feature licenses. This allows you to design and deliver a user control & automation experience tailor-made for each unique space, with a set of tools that match any programming comfort level on a single, scalable platform.
Integrated audio, video and control
The Core 24f processor is driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.
