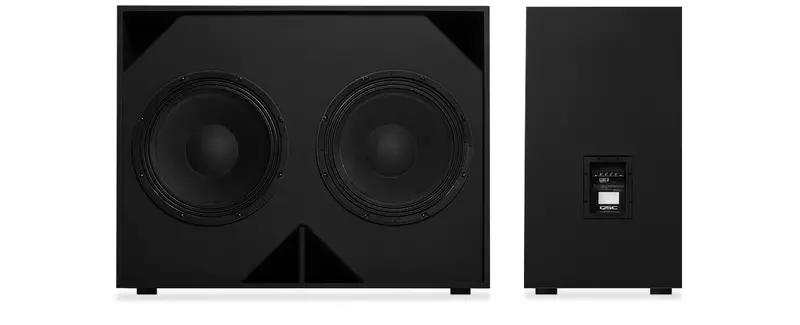

SB-2180 | Dual 18-inch Cinema Subwoofer
Cinema subwoofer, dual 18" transducers, 1100 watts, 101 dB sensitivity
The SB-2180 features two 18” (457 mm) woofers with 4” (102 mm) voice coils for extended bandwidth low frequency reproduction. With an enclosure depth of less than 17 inches (452 mm), the SB-2180 is one of the narrowest dual-driver subwoofers available, which dramatically reduces space requirements behind the screen. A unique folded port design allows the enclosure to be extremely narrow, while maintaining full port length and volume.
Features
Optimized for cinema applications
Requires less than 17 inches (432 mm) behind screen
Two 18-inch (456 mm) woofers with 4-inch (100 mm) voice coils
Screw-type barrier-strip connectors
Specifications | SB-2180 |
Frequency Range1 (-10dB) | 25 Hz to 150 Hz |
Rated Noise Power (Voltage)2 | 1100 W |
Sensitivity3 | 100 dB |
Maximum continuous SPL4 | 130.4 dB |
Maximum peak SPL4 | 136.4 dB |
Rated Impedance | 4Ω |
Recommended Amplifier Power | 2200 Watts |
Transducer | Two 18-inch (457 mm) woofers, 4-inch. voice coils |
Enclosure Details | |
Input Connector | 4-position barrier strip |
Enclosure Material | MDF, 19 mm |
Grille | None |
Dimensions (HxWxD) | 33.15 x 42.5 x 16.5 inches (842 x 1080 x 420 mm) |
Net Weight | 187 lb (89 kg) |
1 Half-space (2 pi), unprocessed, -10 dB from on-axis sensitivity
2 AES2-1984 noise signal for 2 hrs
3 On-Axis, free-field sensitivity, 2.83V, 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notic
