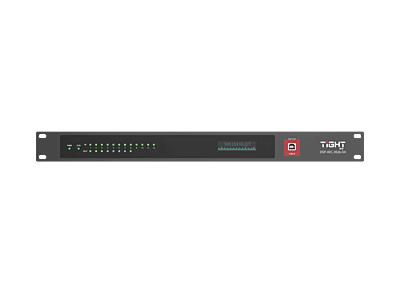

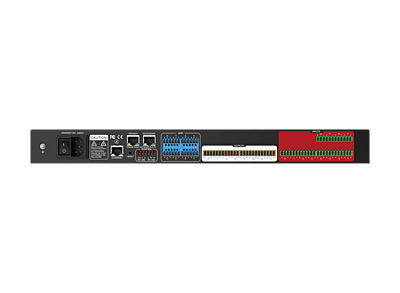

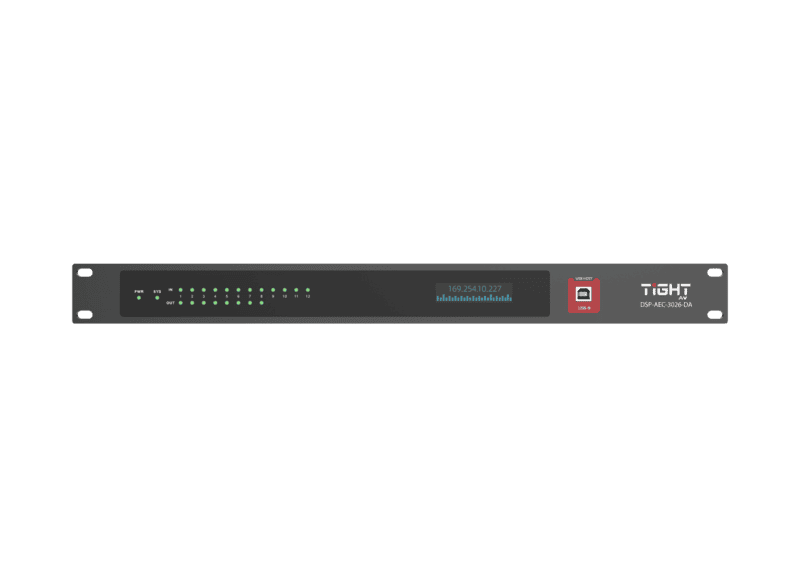

DSP-AEC-3026-DA | Audio DSP with AEC, 12-In/8-Out Analog, 16-In/16-Out Dante and 2x2 USB

DSP Processor

Type

ADI SHARC 21489

DSP Handling Capacity

400 MIPS, 1,6 GFLOPS

Input

Inputs

(12) Analog Mic/line Audio

Input Connector

(3) 12-pin Green Terminal Blocks

Phantom Power

48V (Max 10mA), selectable per input

Output

Outputs

(8) Analog Line Audio

Output Connector

(2) 12-pin Yellow Terminal Blocks

Interface

Ethernet

(1) LAN, 10/100 Base-T Ethernet

(2) LAN 10/100/1000 Base-T Ethernet

Ethernet Connector

(3) RJ45

USB

(1) USB 2.0, Type B

Serial

(1) RS-232, (1) RS-485

Serial Connector

(1) 6-pin Brown Terminal Blocks

GPIO

(8) GPIO

GPIO Connector

(2) 12-pin Blue Terminal Blocks

Audio Performance

Input Gain

0 ~ 60dB in 3dB steps

Frequency Response

±0.3dB (20Hz to 20KHz)

Maximum Level

+18dBu

EIN

<-125dB, 20Hz to 20kHz, A-Weighted

THD + Noise

0.003%@4dBu

Input Dynamic Range

110dB

Output Dynamic Range

112dB

Background Noise

-95dB, A-weighted

Common Mode Rejection Ratio @60Hz

60dB

Channel Isolation @1KHz

108 dB

Input Impedance (Balanced)

5.4kΩ

Output Impedance (Balanced)

600Ω

System Latency

<5ms

Sample Rate

48 kHz

Bit Depth

24 Bit

Dante

Sample Rate

44.1kHz, 48 kHz, 88.2 kHz and 96 kHz

Encoding Bit Depth

16, 24 and 32 Bit PCM

Dante Device Latency

1, 2, 3, 4, 5 or 10 ms

Network Transport

Dante Audio over IP RTP

Network

Control Ethernet Port

10/100 Base-T, auto-negotiation

Primary Dante Port

10/100/100 Base-T, auto-negotiation

Secondary Dante Port

10/100/100 Base-T, auto-negotiation

General

Power requirements

AC110~240V, 50Hz~60Hz

Maximum Power Consumption

<40W

Rack Space

19" Rack (1HE)

Dimensions (W x D x H)

482mm x 264mm x 44mm

Shipping Weight

3kg

Operating Temperature

0 ~ +40℃

Storage Temperature

-25 ~ +70℃

Relative Humility

10% - 90%

Compliance

Compliance

FCC, CE

Environmental Compliance

RoHS, REACH, WEEE
