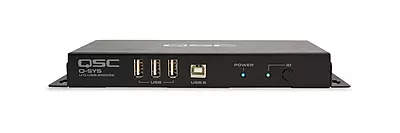

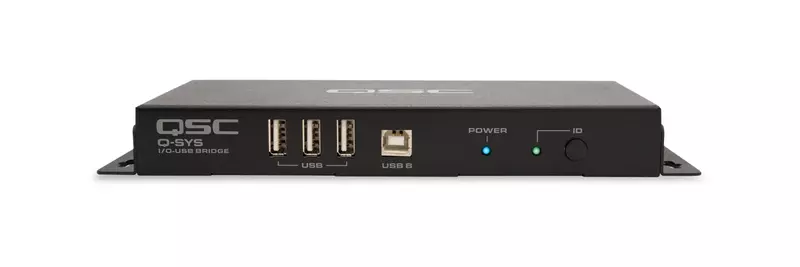

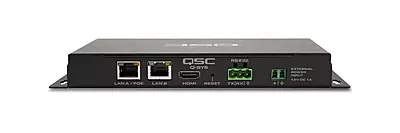

I/O USB Bridge - Q-sys IO USB Expansion
Stop hassling with the limitations of distributing media over USB. Q-SYS™ I/O-USB Bridge puts USB access right where you need it, close to every device that needs Q-SYS audio, video, and/or control. The Q-SYS I/O-USB Bridge allows users to integrate networked Q-SYS conference room camera video alongside industry leading audio processing into soft-codec applications via USB connection, all without installing special drivers.
The I/O-USB Bridge and Q-SYS conferencing cameras will offer a brand new networked AV paradigm to soft codec AV integration in medium to large meeting room systems. Because Q-SYS is a fully networked platform, the Q-SYS I/O-USB Bridge can act as an in-rack or Bring Your Own Device (BYOD) endpoint for Q-SYS conferencing camera feeds and audio processed with Q-SYS acoustic echo cancellation (AEC). As part of the Q-SYS Platform, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
Q-SYS PoE bridging endpoint for AV-to-USB Bridging. Delivers driverless USB 2.0 connection. Includes dual LAN connections.
Features
Driverless USB 2.0 Connection
Built for BYOD (plug and play)
Resolutions up to 1080p
Emulates webcam video and AEC speakerphone audio over single USB connection
Emulates computer soundcard
Bridges audio and video over Q-LAN to USB
Route USB HID events across Q-LAN networks
External Power Supply or PoE enabled (802.3af)
System Details | |
Supported Resolutions | MJPEG: 1080p: 30, 15 fps | 720p: 30, 15 fps | 360p: 30, 15 fps | 180p: 30, 15 fps |
USB Connection | - USB 2.0 (UVC/UAC) driverless connection for Windows and OS X devices |
Power Supply | PoE Enabled Device (802.3af) or 12v DC (1A) |
Dimensions | 25 x 85 x 183 mm |
Weight | 500g / 1.1 lb |
