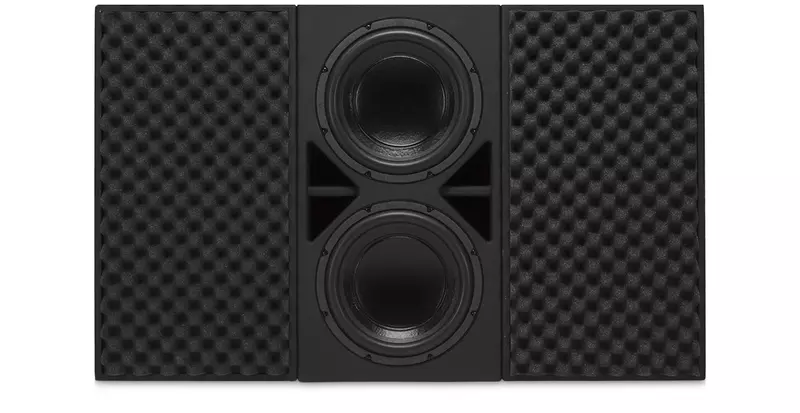

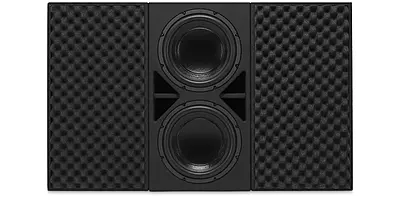

RSB212 - Subwoofer, dual 12-inch
Non-returnable
€2.210,00
LFE (subwoofer), dual 12" 500 W transducers, 96 dB sensitivity. Requires NL8 connectors (not supplied by QSC). Priced individually.
VAT
Not Included Choose Quantity
Product Details
Features
- Studio reference-quality subwoofer system
- Part of the Reference Monitor System, including matched RSC-112 screen channel loudspeaker, signal processing, and amplification
- Optimized for use behind a perforated screen
- Two long-throw 12-inch (305 mm) woofers with 3-inch (76 mm) voice coils
- M10 threaded inserts offer flexible and safe deployment options for a variety of applications
- Optional RBK-12 baffle wing system
- NL8 Speakon™ connector
- 15-ply Baltic birch plywood construction
| SPECIFICATIONS | |
| Rated Coverage Angle (-6 dB) | Omnidirectional |
| Frequency Range1 (-10dB) | 30 Hz to 120 Hz |
| Crossover Frequencies | 80 to 120 Hz (selectable) up to 48 dB/oct using dedicated Q-SYS DSP |
| Rated Noise Power / rms Voltage2 | 1000 W / 55 V |
| Sensitivity3 | 96 dB |
| Maximum continuous SPL4 | 120.5 dB |
| Maximum peak SPL4 | 126.5 dB |
| Rated Impedance | 3Ω |
| Recommended Amplifier Power | 1000 W |
| Transducers | 2 x 12 in. (305 mm) Kevlar-reinforced paper cones, 3 in. voice coils |
| Enclosure Details | |
| Input Connector | Parallel NL8: 1/to sub, 2/thru, 3/thru, 4/thru |
| Enclosure Material | 15-ply Baltic birch plywood |
| Dimensions (HxWxD) | 28.5” x 15.1” x 13.5” (725 x 383 x 344 mm) |
| Net Weight | 89 lb (40.4 kg) |
| Included Accessories | None |
| Optional Accessories | RBK-12 baffle wing kit |
