MP-MFC-EU-WH | Wall mount controller for MP-M Series Mixers (White(
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.

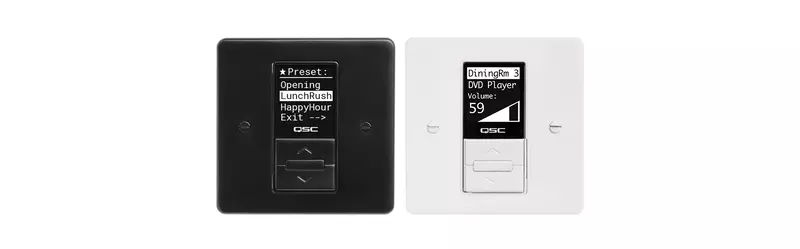

Decora® style multi-function controller for use with MP-M zone mixers, provides zone Volume and Source Select as well as Preset Recall capability. Fits standard European square/round wall boxes. Color - White.
Features
For use with the MP-M paging and music mixer/processor only
Control zone source selection, zone output level, input level selection and scene recall
Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
Ability to daisy chain up to four MP-MFC controllers
Up to 250 m cable length (CAT5)
Up to eight MP-MFC controllers per MP-M Series mixer
Available in black or white

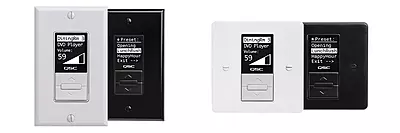

Available in NA and EU sizes
Model | MP-MFC |
Controls | Three buttons (increment, decrement, and select) |
Connectors | 2× RJ45 |
Display | 128 × 128 pixels, 27 (L) × 26 (W) mm viewing area |
Available Colors | Black, white |
Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length |
Versions | MP-MFC-NA-BK – North American version, black |
Dimensions (H×W×D) | 114 × 7 × 35 mm |
Dimensions (H×W×D) | 89 × 89 × 36 mm |
Net Weight | All Versions: 0.1 kg / 0.2 lb |
