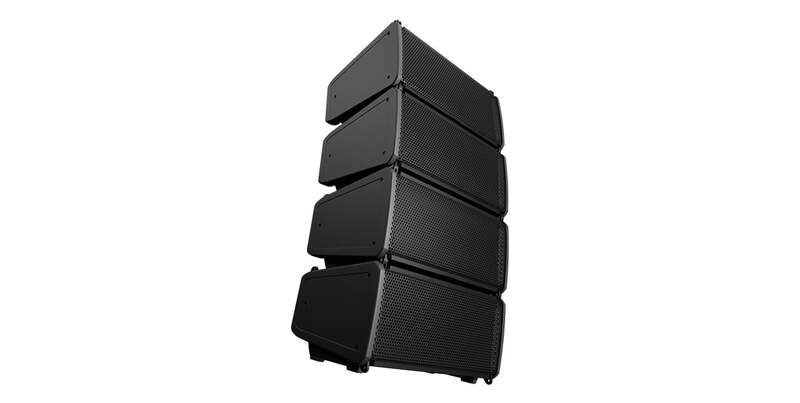

PL-LA8 | Two-way passive installation line array (8 inch)
The Q-SYS PL-LA8 is a two-way, passive 8-inch installation line array designed to deliver premium sound for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls. Ideal for small to medium-sized venues, the PL-LA8 is a high-performance front-of-house solution.
8-in 2-way passive/bi-amp installation line array, Color - Black
Features
8-inch LF transducer & HF compression driver in a bass-reflex enclosure
Weatherized (IP54) ABS enclosure for indoor and protected outdoor environments
Superior acoustic performance via QSC LEAF™ Waveguide
Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Integrated rigging hardware allows flying of up to twelve (12) loudspeakers
Benefits
Deliver the right system for your customers: The PL-LA8 features an 8-inch transducer and high-frequency compression driver in a bass-reflex enclosure that provides a high-performance solution for front-of-house in small to medium-sized venues such as auditoriums or performance theaters. Pairing them with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
Full control and monitoring for entertainment venues: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that lets you deliver a singular audio, video, and control experience venue-wide.
SPECIFICATIONS | PL-LA8 |
Enclosure configuration | Bass Reflex, two-way passive/bi-amp line array loudspeaker |
Transducers | LF: 8 in (200 mm), 2 in (50 mm) voice coil, neodymium magnet |
Coverage (horizontal x vertical) | 100° x 15° |
System bandwidth (-10 dB with EQ) | 61 Hz-20 kHz (no subwoofer) |
System sensitivity | 101.2 dB @ 1 W/1 m |
Max SPL* (continuous) | 126 dB @ 1 W/1 m |
System power rating | 46 Vrms, continuous 250 W @ 8 Ω |
Connectors | 2x Speakon NL4 (cable connector not provided) |
Recommended amplifiers | Q-SYS CX-Q Series 4ch network amplifiers |
Rigging angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 |
Deployment ** | Ground stacking 4x PL-LA8 (requires PL-LA8-AF Array Frame) |
Enclosure material: | Impact-resistant ABS |
Enclosure color | Black (RAL 9011) |
Weatherization | IP54 |
Dimensions | 10.7 x 20.1 x 13.7 in (272 x 512 x 349 mm) |
Weight | 30 lb (13.5 kg) |
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
** Consult the User Manual for Factor of Safety information
All specifications are subject to change without notice.
