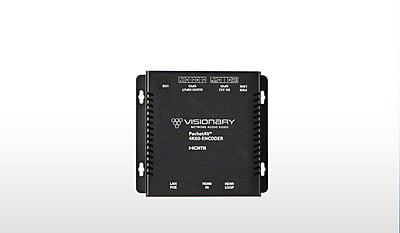

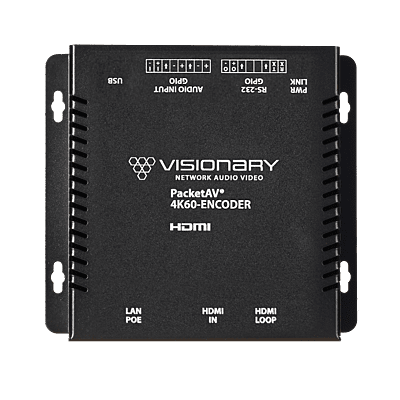

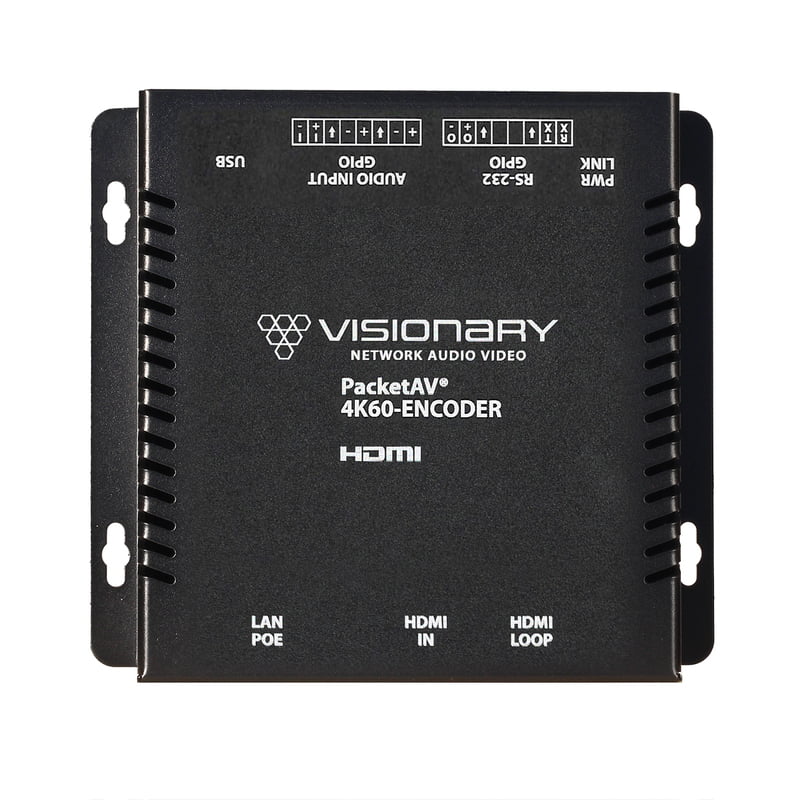

PacketAV E5100

Video Codec

JPEG2000 based visually lossless video compression algorithm

Audio Codec

LPCM, AES67

Bit Rates

50 to 800 Mbps

Latency

Ultra-Low Latency Sub-Frame (visually lossless video)

~2ms @ 1080p60 & 4K60 4:4:4

~4ms @ 1080p30 & 4K30

Streaming Protocols

IP, UDP, TCP, ICMP, IGMP

Copy Protection

HDCP 2.2, 2.3 AES-256 Encryption

Maximum Resolutions

High Dynamic Range (HDR)
4K60 4:4:4 HDR 8 bit
4K30 4:4:4 HDR 12 bit
1080p60 4:4:4 HDR 12 bit
1080p30 4:4:4 HDR 12 bit
Supports HDR10, HDR10+, HLG, Dolby Vision

Input Signal Types (Encoder)

HDMI (with Loop Out) capable of receiving source input video formats up to 4K60 4:4:4

Output Signal Types

Decoder: 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4

Encoder: (HDMI Loop Out) capable of outputting video formats up to 4K60 4:4:4

Scaler (Decoder)

Supports a wide range of resolutions and rates, up to 4K in/1080P out, 1080P in/4K out, image rotation, and video wall up to 16x16

Integrated scaling helps optimize image quality and switching performance

Input Signal Types

HDMI Audio, Analog Stereo Audio.
• 1 Analog stereo input, unbalanced or balanced
• 1 Digital input de-embedded from HDMI

Output Signal Types

HDMI Digital Audio (NLPCM pass-through), Analog Stereo Audio, Native AES67 Network Audio

• 1 Digital audio output via HDMI
• 1 Analog Stereo Audio balanced output
• 1 Native AES67 digital audio output (up to 2 channels)

Digital Formats

Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby True HD, Dolby Atmos, DTS ®, DTS-ES, DTS96/24, DTS-HD High Res, DTS-HD Master A udio, DTS:X, LPCM up to 8 channels.

Analog Formats

Stereo 2-channel

Analog-To-Digital Conversion

24-bit 48 kHz

Digital-To-Analog Conversion

24-bit 48 kHz

Native AES67

24-bit 48kHz

Analog Output Volume Adjustment

-80 to +20 dB

Ethernet

Network connectivity for control and AV traffic

USB

USB 2.0 host or device signal extension and routing

Serial / RS-232

Bi-directional device control and monitoring

GPIO

For extension and control of third-party devices

HDMI

HDCP 2.2, 2.3, EDID (encoder), CEC (decoder)

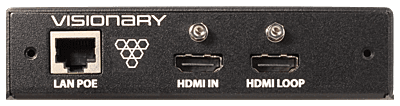

LAN

8-pin RJ-45 connector, female; 100BASE-TX / 1000BASE-T Ethernet port / PD port

POE (IEEE 802.3af or 802.3at)

HDMI INPUT

HDMI Type A connector, female; HDMI digital video/audio inputs

HDMI Outputs (Encoder loop-through & Decoder output)

HDMI Type A connectors, female; HDMI digital video/audio inputs

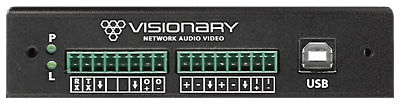

1st - 8 pin Euroblock 3.81mm pitch connector

GPIO out / RS-232 ports

2nd - 8 pin Euroblock 3.81mm pitch connector

Encoder Stereo Balanced Analog Audio Input

Decoder Stereo Balanced Analog Audio Output

GPIO in ports

USB Host (Decoder)

(2) USB Type-A connector, female; USB 2.0 host port; USB
signal extender port for connection to a mouse, keyboard,
or other USB 2.0 device

USB Device (Encoder)

(1) USB Type-B connector, female; USB 2.0 device port; USB signal extender port for connection to a computer or other USB 2.0 host

Power Consumption

12 W typical

Cooling

Convection / no fan ( no moving parts )

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% RH (non-condensing)

Heat Dissipation

41 BTU/hr

Acoustic Noise

0 dBA

Dimensions

Height: 1.15 in.  (29.3 mm)

Width: 5.75 in. (146 mm)

Depth: 5.37 in. (136.4 mm)

Weight

1.0 lb (0.45 kg)

CE, FCC, C-tick, RoHS, WEEE
