AD-S162T-WH | Surface-Mount Loudspeaker (White)
The all-new AcousticDesign™ Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
2.75" Full-range (x16) element column surface speaker, 70/100V transformer with 8Ω bypass, 160° horizontal x selectable 15/30° vertical coverage, includes pan/tilt wall mount and input weather input cover. Color - White.
Features
Deliberately unobtrusive industrial design.

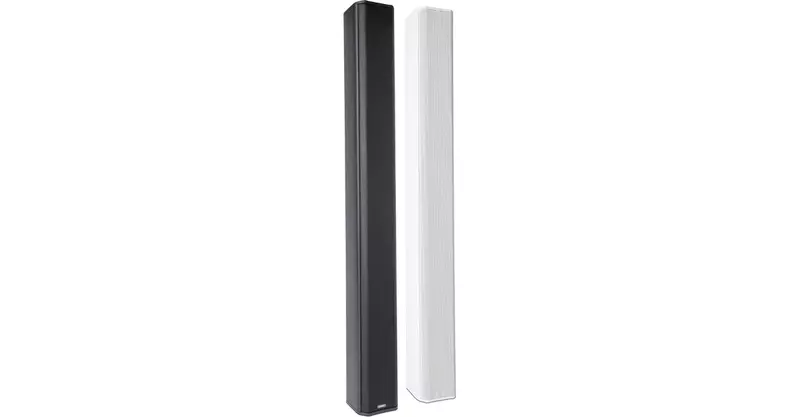

Available in white (RAL 9010) or black (RAL 9011).
Paintable enclosure and grill.
Complete EASE, CLF, CAD & BIM information.
Rugged aluminum construction.
UV Inhibitors in all white models.
IP-54 rating for dust and splash resistance.
Powder-coated grills and weather-treated cones.
Close to wall pan/tilt bracket included.
Low saturation 70/100V transformers.
8 ohm low impedance bypass.
Selectable broad/narrow beam contour
Screw-down Euro block connector with loop-through.
Sealable input weather cup – keeps moisture away from wiring.
System Details | AD-S162T |
Transducer | (x16) 2.75 in (69.8 mm) weather treated paper cone woofer |
Effective frequency range 1, 2, 3, 8 | 90 Hz – 17 kHz |
Rated noise power / voltage 6 | 200 watts / 40 volts (rms) |
Sensitivity [dB] | Rated @1W, 1m 2, 3, 4, 8 : 89 (Narrow) 88 (Wide) |
Coverage (‐6 dB) [°] | Rated 2, 5, 8 : 160 x 15 (Narrow) / 30 (Wide) |
Declared values of SPL, 1/3rd | 500: TBD; 630: TBD; 800: TBD; 1000: TBD |
Directivity factor 2, 5, 8 | TBD |
Directivity index [dB] 2, 5, 8 | 11 (Narrow) 13 (Wide) |
Maximum SPL [dB] | Rated, 1m (continuous / peak) 7 : 112 / 118 (Narrow) |
Recommended amplifier | 250 watts |
Transformer taps / impedance | Bypass: 8Ω |
Input connector type | Euroblock connector with parallel output |
Enclosure material | Powder coated aluminum |
Grille material | Powder coated aluminum |
Ingress protection | IP-54 |
Operating environment | Designed for indoor or outdoor use |
Operating temperature range | -4 to 122° F (-20 to 50° C) |
Net weight | 26 lb (11.8 kg) |
Product dimensions (H x W x D) | 45.8 x 5.2 x 5-inch |
Shipping Weight | 32.7 lb (14.86 kg) |
Shipping Dimensions (H x W x D) | 12.3 x 9.9 x 54.5-inch |
Included accessories | Sealed input cover plate with gland nut |
Safety Agency | UL1480A |
1 -10dB from rated sensitivity
2 Full-space, 4m
3 Reference axis
4 200 - 10kHz average
5 1k - 10kHz average
6 IEC, 2hrs
7 Calculated from rated noise power and sensitivity
8 Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis perpendicular to the reference plane and passing through the center of the baffle. Vertical plane is the plane intersecting the reference plane at a right angle, including the reference axis and the taps selector knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right angle, including the reference axis.
9 Per EN54-24
