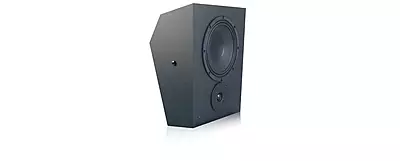

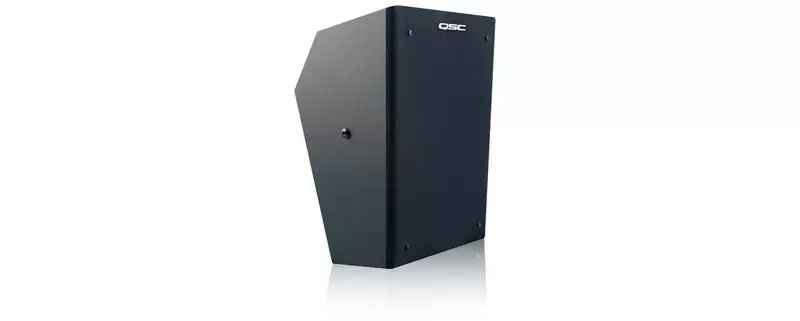

SR-800 - Cinema Surround Loudspeaker
The SR-800 Cinema Surround Loudspeaker is a two-way design that features an 8" (203mm) low-frequency transducer with a
1" dome tweeter. The 125 watt continuous power rating and sophisticated crossover circuitry provides absolute reliability.

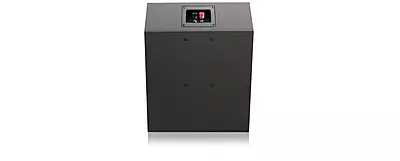

The SR-800 is designed for safe and secure mounting. The cabinet is constructed of 12mm MDF with internal bracing for superior structural integrity. The rear panel of the cabinet is fitted with four threaded insert mounting points that accommodate the standard bolt pattern for most third- party bracket manufacturers. Included pre- installed speaker side hardware allows fast single-installer wall mounting, and brackets support down-angles of either 15° (QM-SW, ordered separately) or 23° (QM-BW, ordered separately). A traditional U-bracket “yoke” style bracket (YM-300) is also available.
The compact black enclosure with black grille blends into any theatre decor.
Cinema surround loudspeaker, 8" 2-way, 135° conical, 90 dB sensitivity. Priced individually, sold only in pairs.
Features
High Performance for all Cinema applications
8" (203 mm) woofer
1" (25 mm) dome tweeter
Pre-installed speaker-side QM mounting hardware
Accepts YM-300 yoke bracket
SPECIFICATIONS | SR-800 |
Frequency Range 1 |
|
Rated Coverage Angle (-6 dB) | 135° conical |
Maximum Rated SPL 4 |
|
Rated Impedance | 8 ohms |
Rated Noise Power 2 | 125 watts |
Sensitivity 3 | 90 dB |
Input Connector |
Two 5-way binding posts, accepts up to #10 AWG stranded wire
|
Transducers |
8” (203 mm) LF driver
1” (25 mm) dome tweeter
|
Enclosure Material |
12mm MDF with black vinyl wrap, matte finish
|
Dimensions (HWD) inches |
14.4 x 11.7 x 9 inches
|
Dimensions (HWD) mm |
365 x 298 x 228.5 mm
|
Net Weight | 14.3 lb (6.5 kg) |
Brackets |
QM-SW, QM-BW, YM-300
|
1 Free-field, -10 dB from on-axis sensitivity
2 AES2-1984 noise signal for 2 Hrs
3 On-axis, free-field sensitivity, 1W, 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
