BG-ADAMO-JR12X-B

The Next Generation of Full HD PTZ Cameras

The BG-ADAMO-JR is a brand-new Full HD PTZ camera with 3 types of lenses available: 12X optical zoom with 70.3 FOV, 20X optical zoom with 60.04 FOV, and 30X optical zoom with 58.1 FOV. It features smooth PTZ functions, advanced image processing features and flexible connection options.

Advanced Visual Performance: With the high quality 1/2.8-inch SONY CMOS image sensor, the resolution of this camera can get up to 1080@60fps. Additionally, the low noise 1/2.8-inch SONY CMOS guarantees high SNR and the advanced 3D noise reduction technology further reduces the noise while ensuring pristine image clarity. The advanced ISP processing technology and algorithms also allow the camera to deliver true-to-life image quality for the most natural and accurate viewing experiences.

Attributes

Optical Zoom

The BG-ADAMO-JR offers three different optical zoom lenses that users can choose from: 12X optical zoom with 70.3 viewing angle, 20X optical zoom with 60.04 viewing angle and 30X optical zoom with 58.1 viewing angle.

Flexible Connections

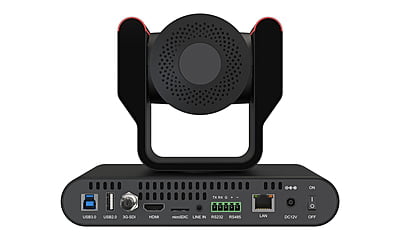

The BG-ADAMO-JR supports HDMI, SDI, USB 2.0, USB 3.0 and LAN connections. It also supports IP streaming, offering flexible workflow options for users.

Smooth Video and Audio Processing

The BG-ADAMO-JR offers a smooth and impressively clear viewing experience. It uses advanced video and audio compression techniques to ensure the best quality content. Additionally, advanced auto focus technology allows the camera to autofocus stably, swiftly, and precisely.

Auto-Tracking Capabilities

The auto-tracking technology uses the latest human detection AI algorithms to exhibit unparalleled tracking speed and accuracy. This monocular tracking method uses only one camera and one lens to easily detect and capture human forms and moving objects in seconds.

The auto tracking is presented in two modes: Presenter Tracking and Zone Tracking. Presenter Tracking tracks its target everywhere without the need to wear any receiving devices. It has strong locking and anti-interference capabilities giving presenters the flexibility to leave the stage and interact with the audience while continuously being tracked. Zone Tracking can be set to track a specific area providing a clear, smooth representation of what's being shown behind the presenter such as a whiteboard.

Extensive Control Options

RS Communication Protocols: The BG-ADAMO-JR supports RS422 (compatible with RS485) output and RS232 input/output. RS232 supports cascading, making it easy for engineers to operate.

Control Protocols: Support for multiple control protocols include VISCA, PELCO-D, PELCO-P, and auto identification protocol.

Network Protocols: Support for multiple network protocols include ONVIF, GB/T28181, RTSP, RTMP protocols, and supports push mode in RTMP to easily link with streaming media servers. Plus, it supports RTP multicast mode and network full command VISCA control protocols.

Additionally, this full HD PTZ camera will enable users to set up to 255 presets (10 can be set via remote control). BZBGEAR Camera Control Software: BZBGEAR offers a free control software available for Windows, Mac and iOS.

The BG-CONTROL app provides precise manipulation of pan, tilt, zoom, and focus for BZBGEAR PTZ cameras. It features full-screen image previews on iOS devices, image parameter adjustments, and easy preset management for up to 8 cameras. The app also includes customizable camera names, adjustable PTZ speed, and efficient multi-camera preset storage.

Innovative Design

Available in either classic white or black finishes, the chassis of the BG-ADAMO is designed to be as functional and attractive as its formidable feature set. The high-stability substructure provides a solid foundation for the precision lens delivering full HD resolution video at 60fps. Eliminating the need for bulky external accessories, the control arms feature distinctive built-in tally lights that illuminate either green or red with 360-degree visibility.

Features

• 1080p Output up to 1080p@60Hz resolution
• Tally Lights Integrated red/green LED tally lights
• MicroSD Record and store up to 1 TB
• Zoom Available with 12x/20x/30x optical zoom lens
• Multiple Video Outputs Choose from SDI, HDMI, USB 3.0, USB 2.0, or IP Streaming
• PoE Data, power, and control over a single category cable
• Available in white or black
• Multiple forms of control including RS232, RS422, Web GUI, Control App, or IR Remote
• Stream to your choice of platform directly from the camera, no capture card needed
