PL-LA12 | Two-way passive installation line arrays (12 inch)

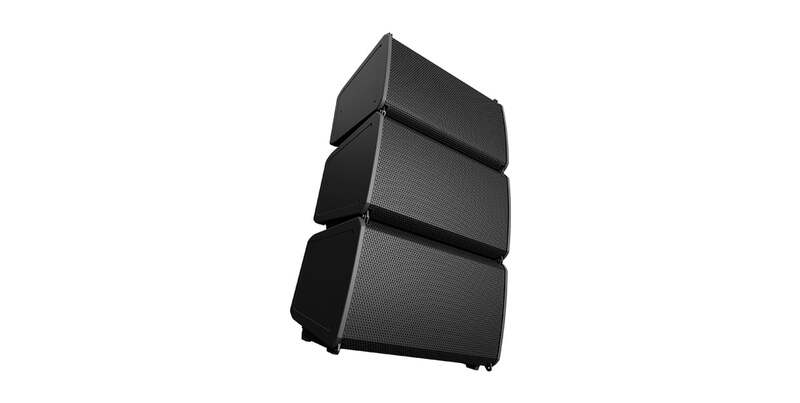

The Q-SYS PL-LA12 is a two-way, passive 12-inch installation line array designed to deliver premium sound for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums and higher ed lecture halls. Ideal for small to medium-sized venues, the PL-LA12 is a high-performance front-of-house solution.
12-in 2-way passive/bi-amp installation line array, Color - Black
your customers: The PL-LA12 features a 12-inch transducer and high-frequency compression driver in a bass-reflex enclosure that provides a high-performance solution for front-of-house in small to medium-sized venues such as auditoriums or performance theaters. Pairing them with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
Full control and monitoring for entertainment venues: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that lets you deliver a singular audio, video,and control experience venue-wide.
SPECIFICATIONS | PL-LA12 |
Enclosure configuration | Bass Reflex, two-way passive/bi-amp line array loudspeaker |
Transducers | LF: 12 in (320 mm), 2.5 in (64 mm) voice coil, neodymium magnet |
Coverage (horizontal x vertical) | 90° x 15° |
System bandwidth (-10 dB with EQ) | 53 Hz-20 kHz (no subwoofer) |
System sensitivity | 102.3 dB @ 1 W/1 m |
Max SPL* (continuous) | 129 dB @ 1 W/1 m |
System power rating | 49 Vrms, continuous 300 W @ 8 Ω |
Connectors | 2x Speakon NL4 (cable connector not provided) |
Recommended amplifiers | Q-SYS CX-Q Series 4ch network amplifiers |
Rigging angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 |
Deployment** | Ground stacking 3x PL-LA12 (requires PL-LA12-AF Array Frame or a PL-SUB18) |
Enclosure material: | Impact-resistant ABS |
Enclosure color | Black (RAL 9011) |
Weatherization | IP54 |
Dimensions | 15.4 x 24.4 x 15.8 in (392 x 620 x 381 mm) |
Weight | 47 lbs (21.5 kg) |
