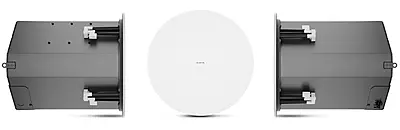

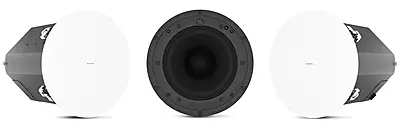

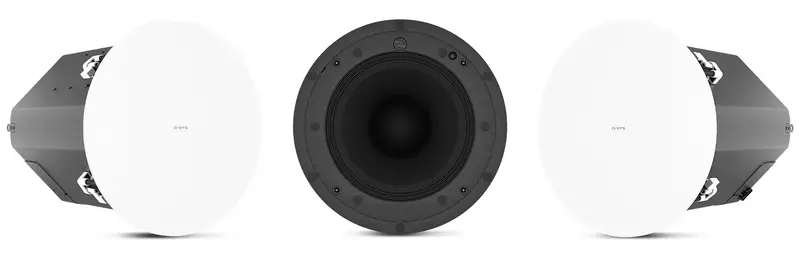

AD-C10T-HPZB-WH - 10-inch, two-way, zero-bezel
B | |
Max SPL (calculated) (5) | 122 dB |
Power rating | Continuous power 250 W @ 8Ω, rated Power 500 W |
Bypass impedance | 8 Ω |
Minimum impedance | 6.9 Ω @ 20 hz |
Transformer taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
Enclosure material | ABS baffle on powder coated steel backcan |
Enclosure color | Black back-can, white grille (RAL 9010) |
Connectors | 4-pin 0.2 in. (5 mm) Euroblock connector with parallel output |
Dimensions (H x W x D) | 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm) |
Cutout dimensions | 305 mm |
Shipping dimensions (H x W x D) | 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed |
Weight | 23 lb (10.5 kg) |
Shipping weight | 68.1 lb (30.9 kg) |
Included accessories | Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille |
Optional accessories (sold separately) | AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille |
Ingress protection | IP-44 |
Safety agency | UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems. |
1Default voicing, No sub High Pass, Smoothed
21 W/1 m, Averaged on 200-10 kHz (System), 200-2 kHz (LF) or 1k-10 kHz(HF)
3 Used for simulation. Measured 1m on-axis in free space after 1mn. Pink noise 12 dB crest Factor into RMS protection, Z weight, RMS value
4Same as Continuous SPL +12 dB CF
5Provided for reference with former specs, Calculated from continuous noise power and sensitivity +6dB, default horn
6Max voltage during 2 h without transducer permanent damage. Protection voltage may be lower.
