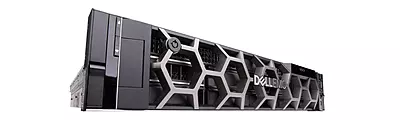

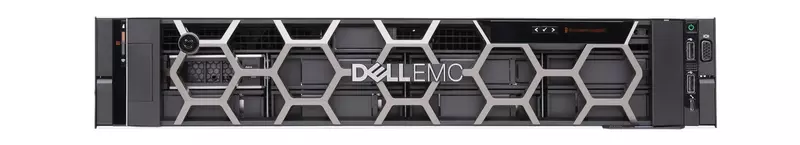

CORE 5200 - Q-SYS network I/O COTS processor
The Q-SYS Core 5200 represents the next-generation of Q-SYS processing, pairing the Q-SYS OS with enterprise-grade Dell COTS server hardware to deliver a flexible and scalable audio, video, and control solution for a vast range of larger scale applications. It is a fully networked AV&C processor, letting you distribute network I/O where it’s most convenient.
Q-SYS Core Processor for AV&C processing built on Dell Server Technology offering 512x512 networked audio channels, dual Ethernet ports for network redundancy, two auxiliary Ethernet ports, 160 next-generation AEC processors, dual redundant hot-swappable PSU's, Dell iDRAC remote monitoring and a pre-installed 960GB SSD Media Drive. Includes Scripting/UCI functionality.
Features & Benefits
512 x 512 networked audio channels (Q-LAN/AES67)
160 AEC processors
Up to 512 x 512 Dante audio channels (8 x 8 included)
Supports up to 28 Q-SYS NM-T1 network microphones
64x VoIP softphone instances
Media/WAN streaming capacity: up to 256 channels
16x multitrack playback channels (up to 128 with optional feature license)
Dual gigabit Ethernet ports for redundant networked audio
Two (2) independent, gigabit auxiliary Ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN Media streaming
Onboard 960 GB media drive
iDRAC monitoring for integration with IT monitoring systems
2RU form factor
Q-SYS + Dell:
Through its partnership with Dell, Q-SYS deployed the full-featured, software-based foundation of the Q-SYS OS on an industry-tested Dell server to deliver a uniquely flexible and scalable audio, video, and control solution. The Core 5200 processor offers the real-time AV&C processing capabilities of Q-SYS on Dell’s most prolific and common IT server which has been fully vetted and used in IT environments and applications around the world.
Industry First, COTS Solution:
The Core 5200 processor is the first professional AV&C solution available that combines commercial off-the-shelf (COTS) server technology with the scalability of a purpose-built AV&C real-time operating system (RTOS). As part of the next-generation of Q-SYS processing, the Q-SYS OS is paired with an enterprise-grade Dell R740 server hardware to deliver scalable IT integration capabilities for a vast range of larger-scale applications including meeting rooms, multi-use and divisible spaces, education campuses, themed attractions, sports arenas, transportation hubs, and more.
Network-Based AV&C Solution:
Q-SYS Core processors are the only real-time audio, video, and control processors offering reconfigurable audio DSP, full-featured control processing, and network-based video switching in a single product. Centralize the location of the Core 5200, even using it across multiple rooms, and then position your desired I/O (either native Q-SYS Products or third-party devices) closer to the endpoints, resulting in a more streamlined system topology and simplified system design and deployment.
System Hardware Q-SYS Core 5200 Enterprise Processor | |
Network Channel Capacity | 512 × 512 |
AEC Processors | 160 |
Q-SYS NM-T1 capacity | 28 |
Multi-track Player capacity | 16 tracks, expandable to 128 tracks |
VoIP Instances | 64 |
Gigabit Ethernet Ports | 2 × for redundant network audio; 2 × for auxiliary network services such as VoIP, SNMP, LLDP, LDAP and WAN media streaming |
All specifications are subject to change without notice.
