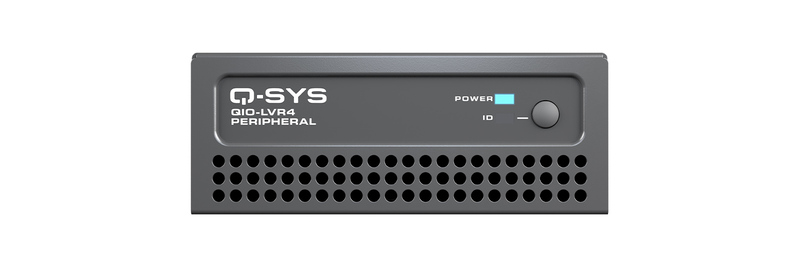

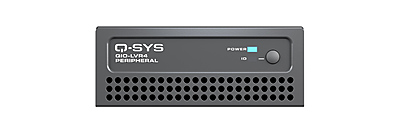

QIO-LVR4 - Q-Sys Network Relay Controller

Features & Benefits

• Native network low-voltage relay connectivity solution for Q-SYS

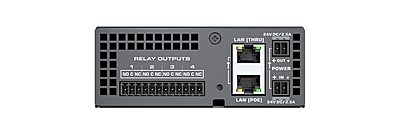

• Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections

• Power-over-Ethernet (PoE) capable

• Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)

• Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect

• Surface- or rack-mountable (1RU, quarter-width)

• Includes surface mounting hardware

• QIO-RMK rack mounting kit sold separately

• QIO-PSU DC power supply sold separately

Note: This product will be supported in Q-SYS Designer Software v9.12.

• Network control connectivity where you need it:
  The QIO-LVR4 allows you to provide your Q-SYS system with greater flexibility to deploy control connectivity where it’s most convenient. The QIO-LVR4 provides four (4) contact closure relays with transient voltage suppression to interface with third-party lighting systems, motorized shades, environmental systems, and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.

• Expanded I/O customization:
  QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable).

• Simplicity & scalability:
  Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).

• Designed for Q-SYS:
  The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video, and control platform, built to deliver scalable, flexible AV solutions into the future.
