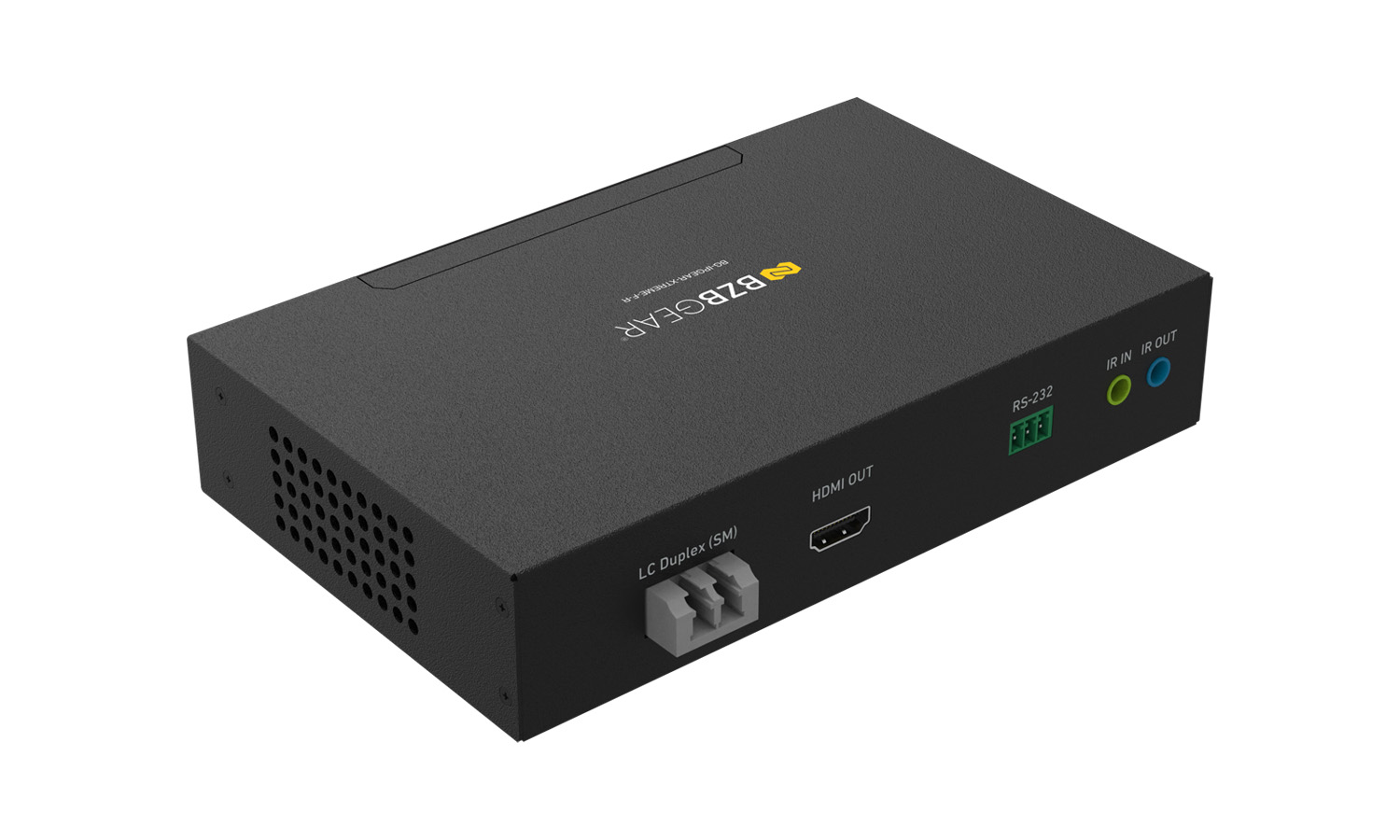

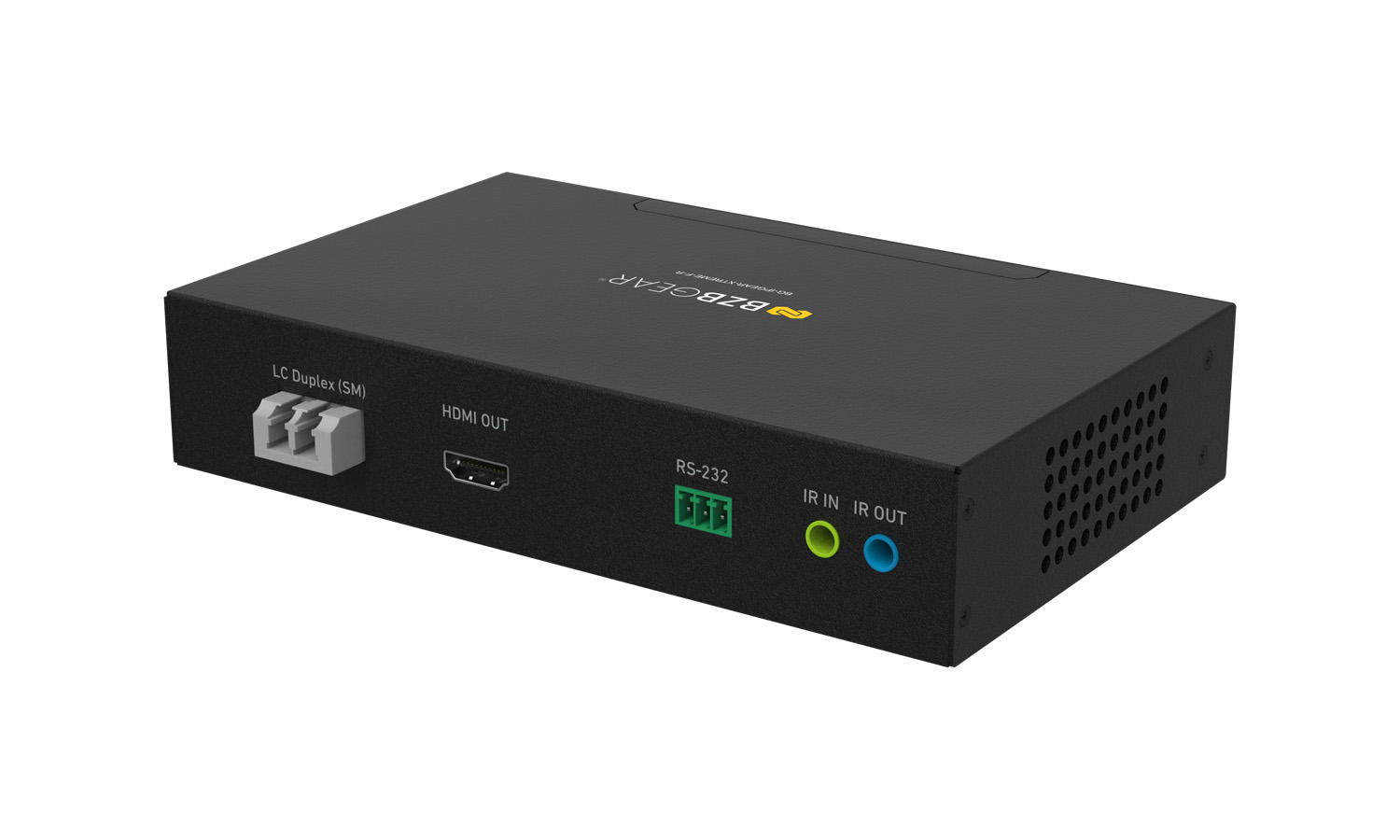

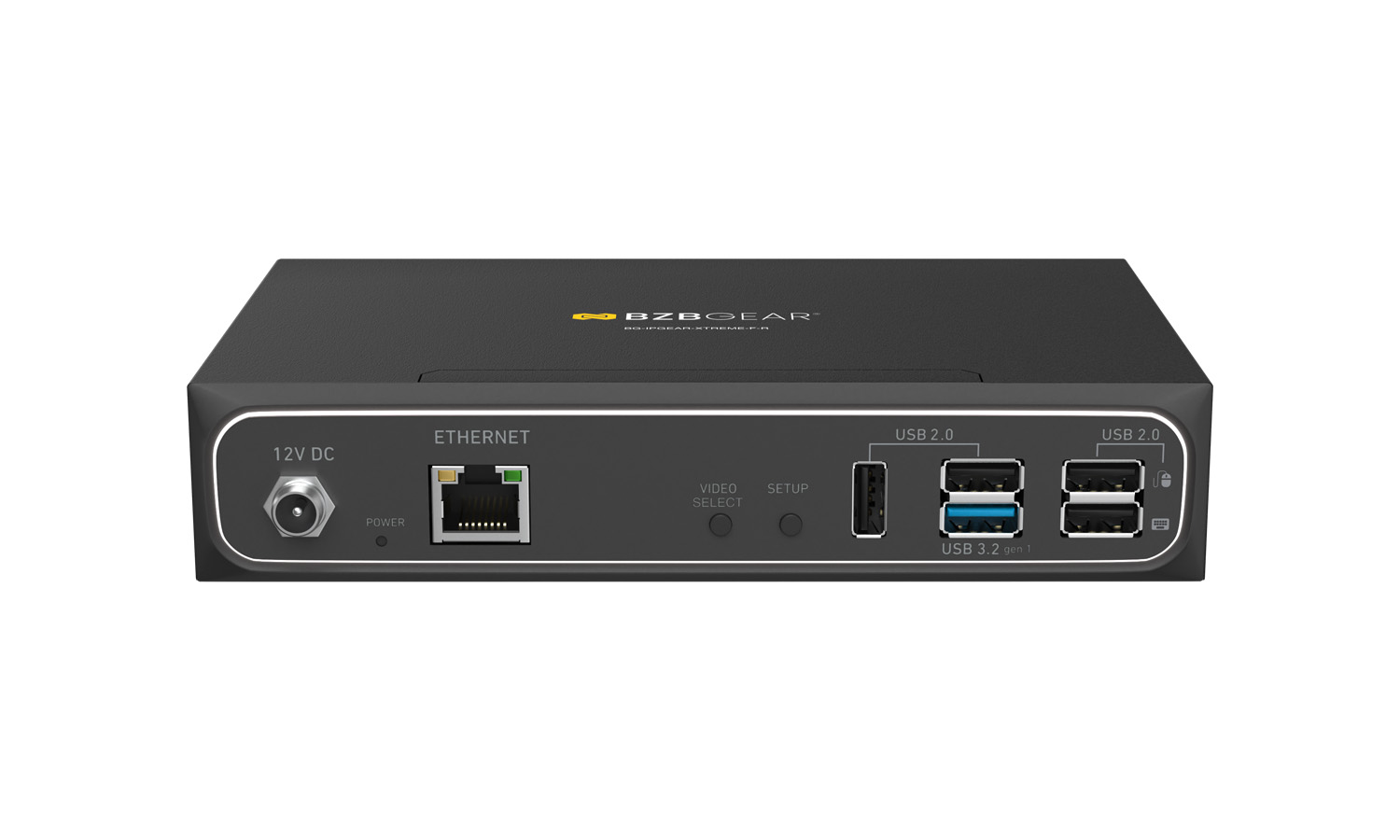

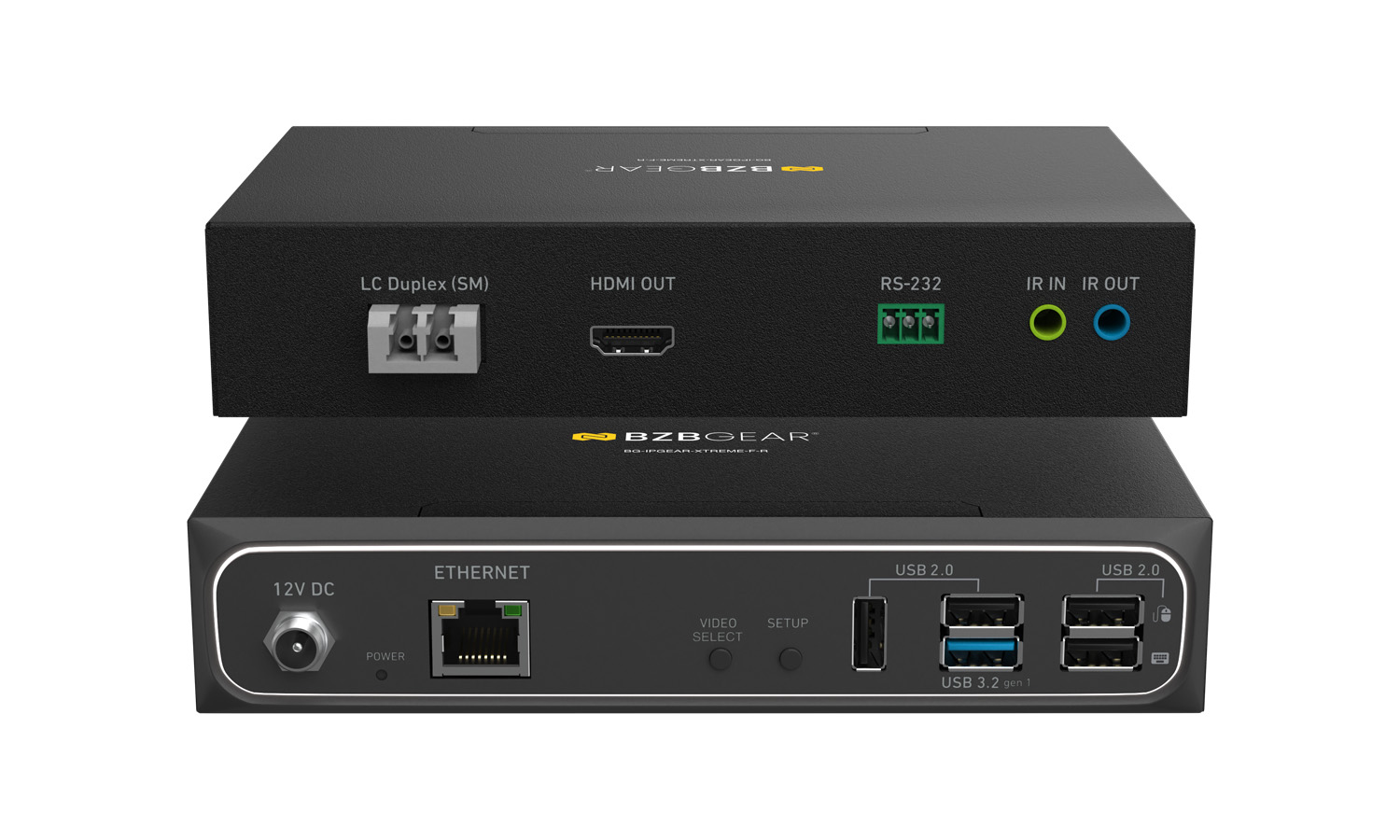

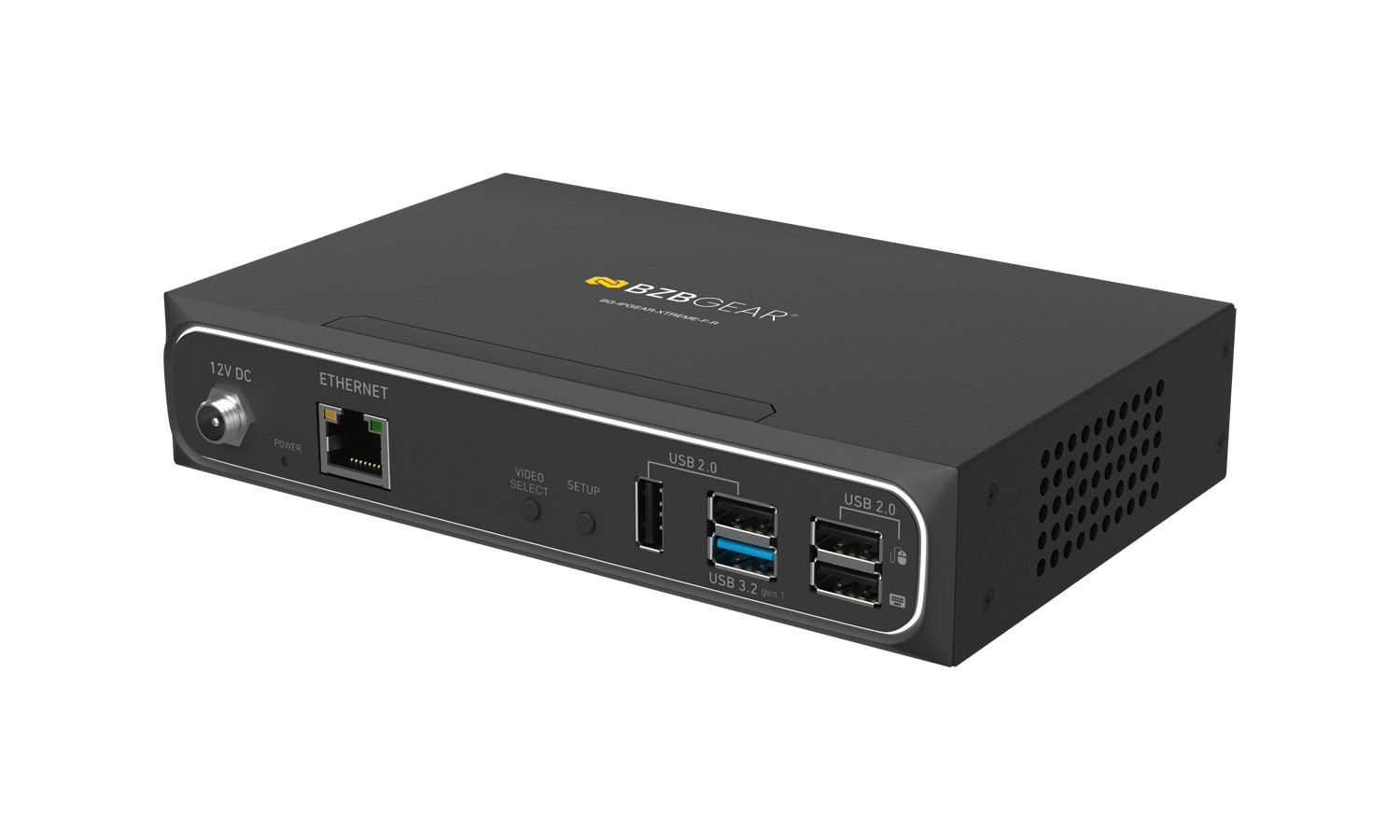

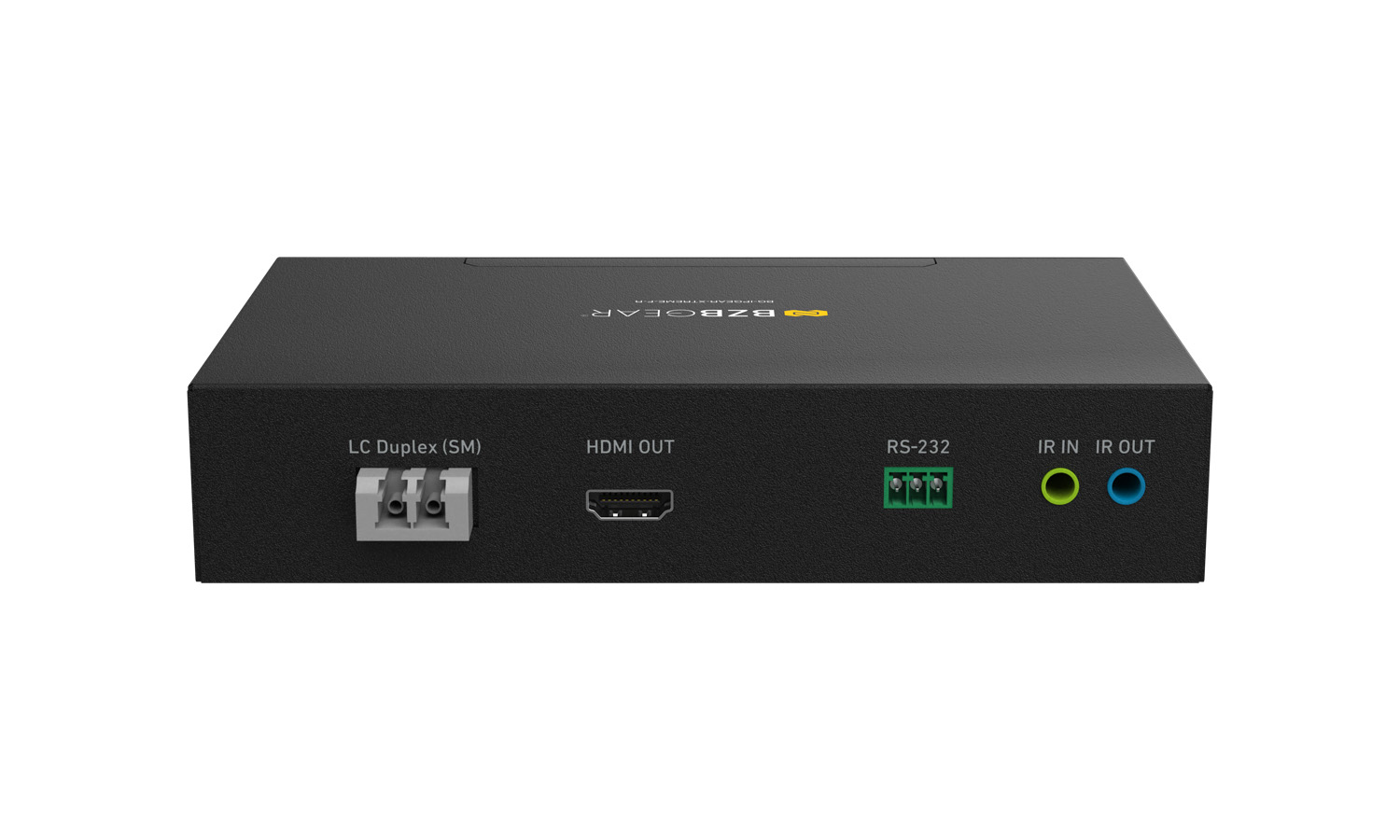

HDMI 2.1 Over Fiber Extender Rx with Bi-Directional IR, RS-232, 1G Ethernet, USB 3.1 & KVM Support
Overview (Pre-order, Ships Q4 2025)
The BG-IPGEAR-XTREME-F is a cutting-edge HDMI 2.1 over fiber extender designed for mission-critical AV transmission in broadcast, medical imaging, eSports, control rooms, and high-end home theater applications. With support for uncompressed 4K60 4:4:4 and visually lossless DSC-compressed 4K144 4:4:4, it also enables 8K@30Hz 4:4:4 transmission, ensuring next-generation video performance with zero-frame latency over distances up to 10km (6.25 miles) via single-mode fiber optic cable.
Beyond video, this extender provides full-featured connectivity with bi-directional IR, full-duplex RS-232, USB 3.1 KVM, eARC/ARC, and 1Gb Ethernet pass-through. With its interference-free fiber optic transmission, the BG-IPGEAR-XTREME-F is engineered to deliver the ultimate in high-resolution video, data, and control extension over long distances.
Features
8K & 4K HDR SupportTransmits up to 8K@30Hz 4:4:4, 4K@144Hz 4:4:4 DSC, and 4K@60Hz 4:4:4 uncompressed for pristine image quality
HDMI 2.1 & HDCP 2.3 ComplianceEnsures compatibility with gaming consoles, media servers, professional video switchers, and AV processors
48Gbps Video Bandwidth (FRL 6)Provides high-speed, zero-latency transmission for next-generation AV applications
DisplayPort 1.4 (USB-C Alt Mode) Input SupportConnects directly to USB-C-enabled laptops, tablets, and workstations
Uncompressed 7.1ch HDMI AudioSupports Dolby TrueHD, DTS-HD Master Audio, and LPCM formats
eARC/ARC Pass-ThroughEnables lossless Dolby Atmos and DTS:X audio transmission from displays to AV receivers
- 10km (6.25 miles) Transmission Over Single-Mode Fiber: Ideal for large-scale AV applications requiring interference-free signal extension
- Fully Transparent EDID & HDCP Handling: Ensures seamless communication between sources and displays
- CEC Pass-Through: Enables centralized device control for home automation and AV systems
- Variable Refresh Rate (VRR) Support: Reduces screen tearing and stuttering for gaming and real-time rendering
- Auto Low Latency Mode (ALLM): Automatically switches to low-latency mode for fast response times
- Zero Latency, No Frame Drops: Fiber optic transmission eliminates traditional signal degradation issues
- USB 3.1 Gen1/Gen2 KVM Support: Allows remote access to UVC cameras, storage devices, touchscreens, and input peripherals
- Full-Duplex RS-232 Serial Control (115,200bps): Enables seamless integration with automation systems and AV matrix switchers
- 1G Ethernet Pass-Through: Provides a dedicated network link for AV-over-IP solutions, reducing cabling complexity
- Bi-Directional Wideband IR (20kHz–60kHz): Ensures remote control signal extension for IR-enabled devices
- Advanced Compression Technology (DSC 1.2a): Delivers visually lossless video at ultra-high refresh rates without compromising detail
