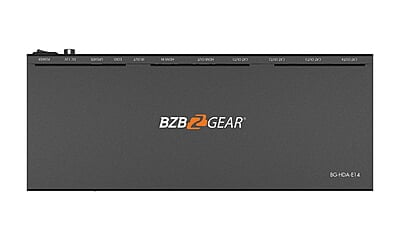

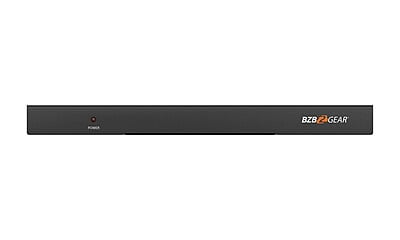

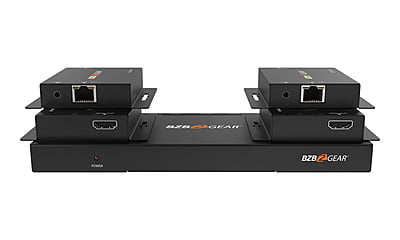

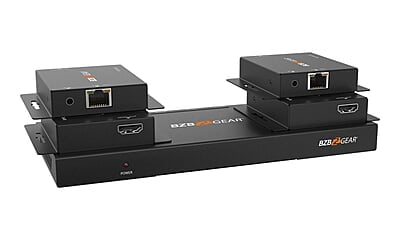

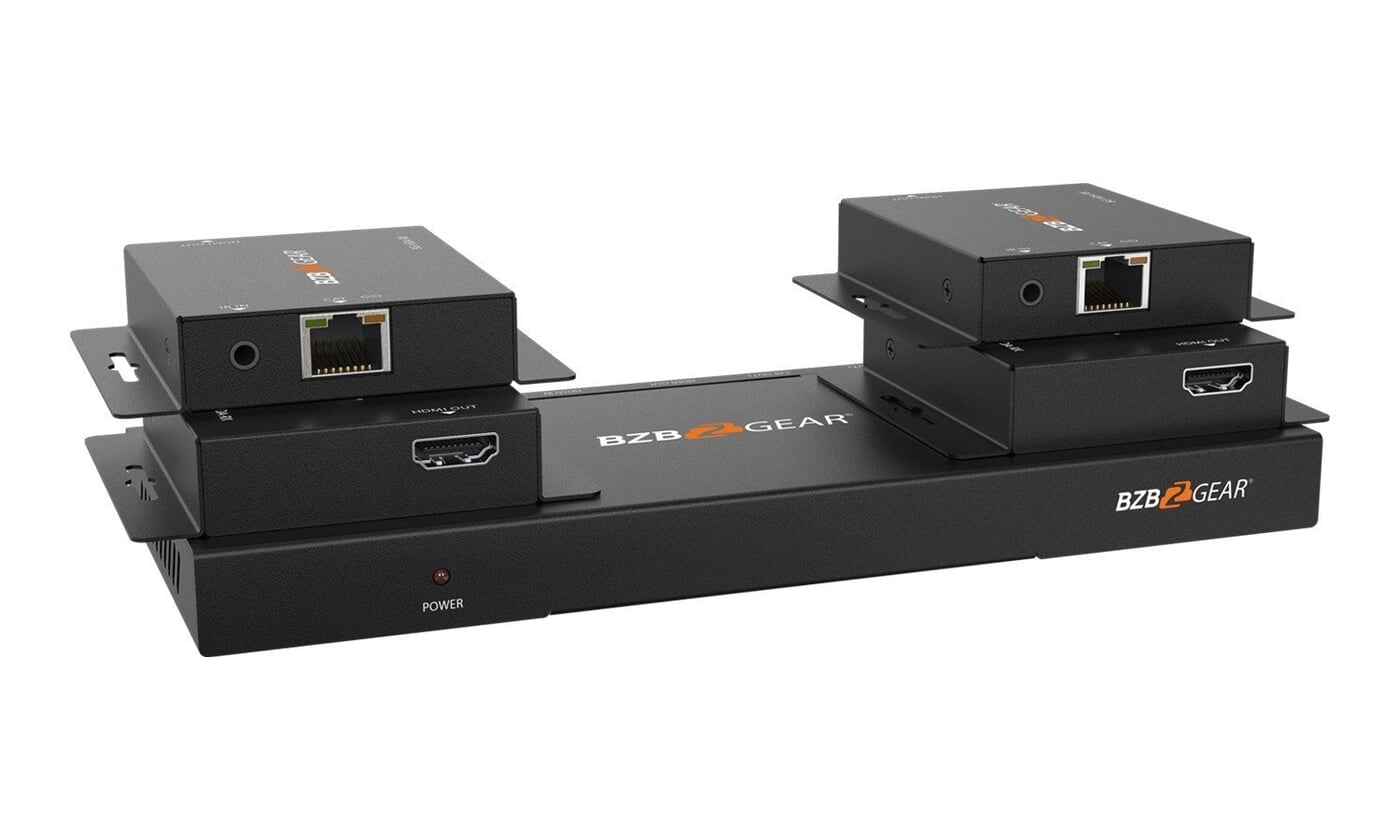

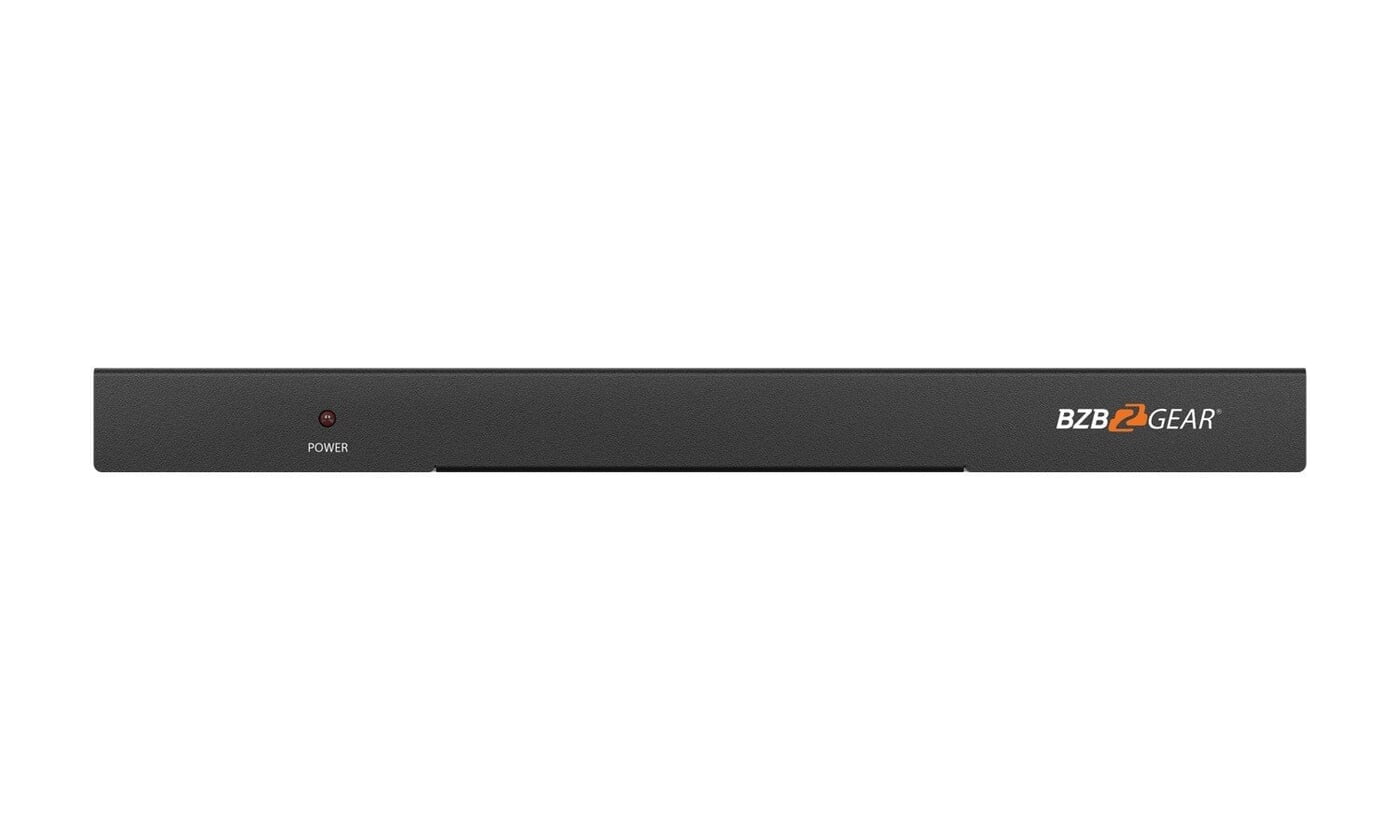

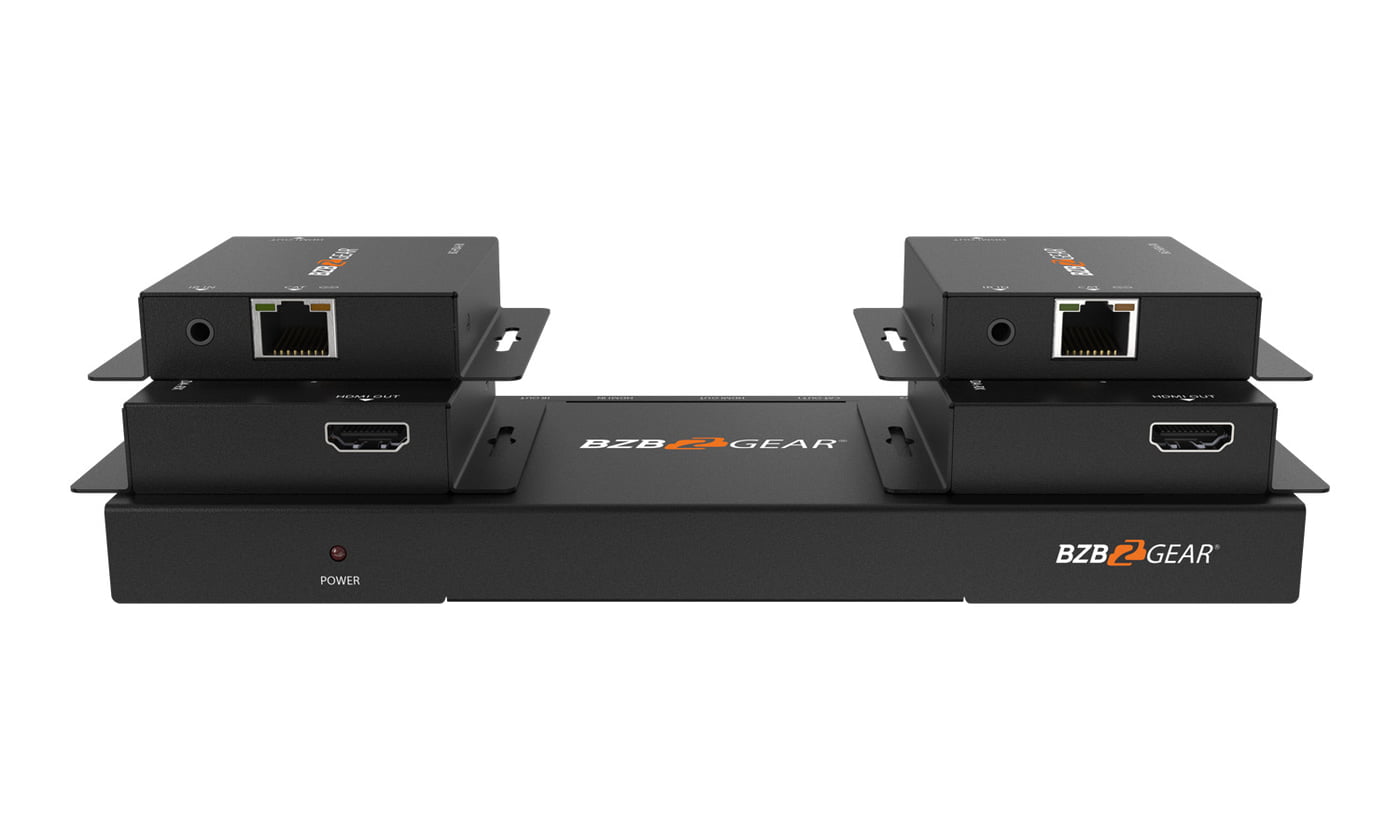

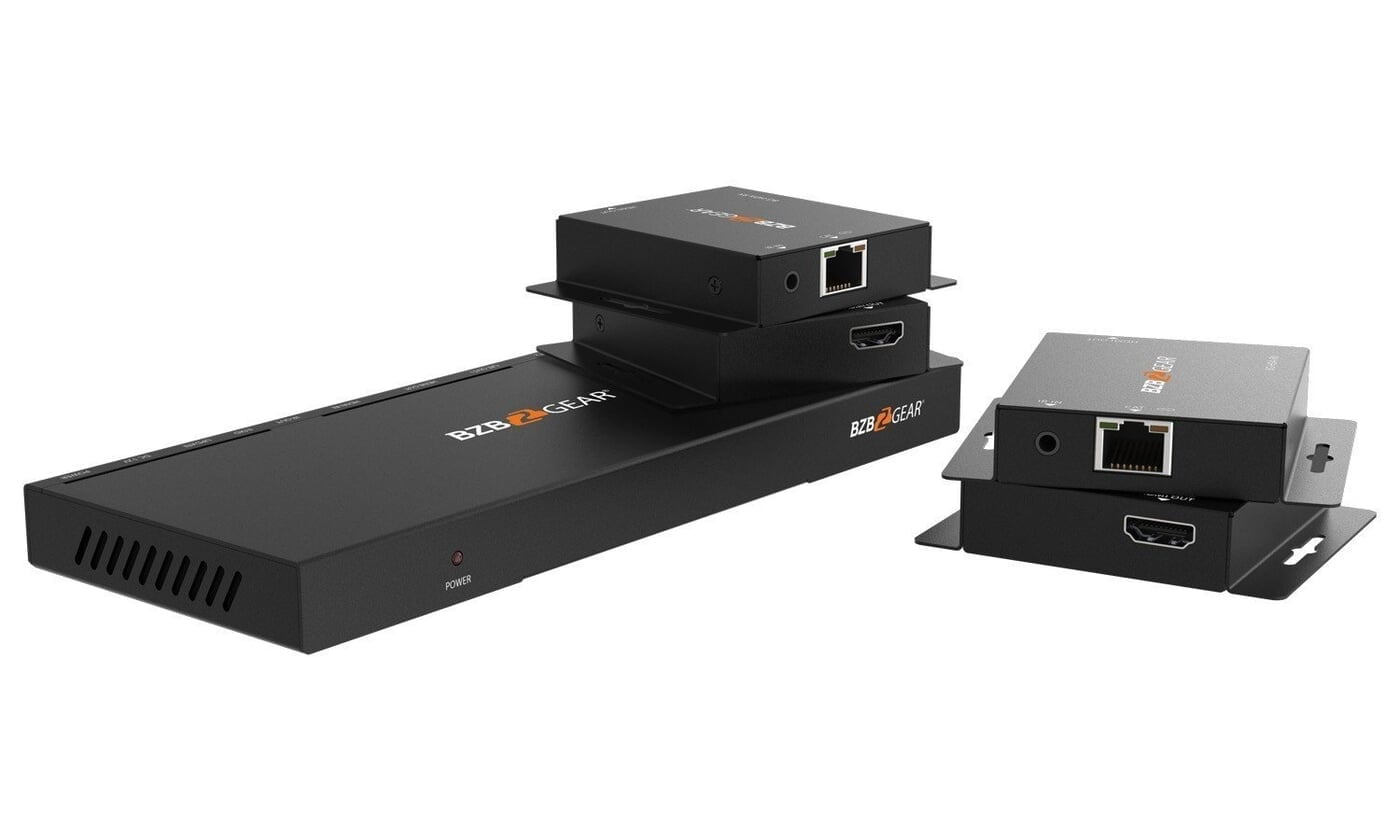

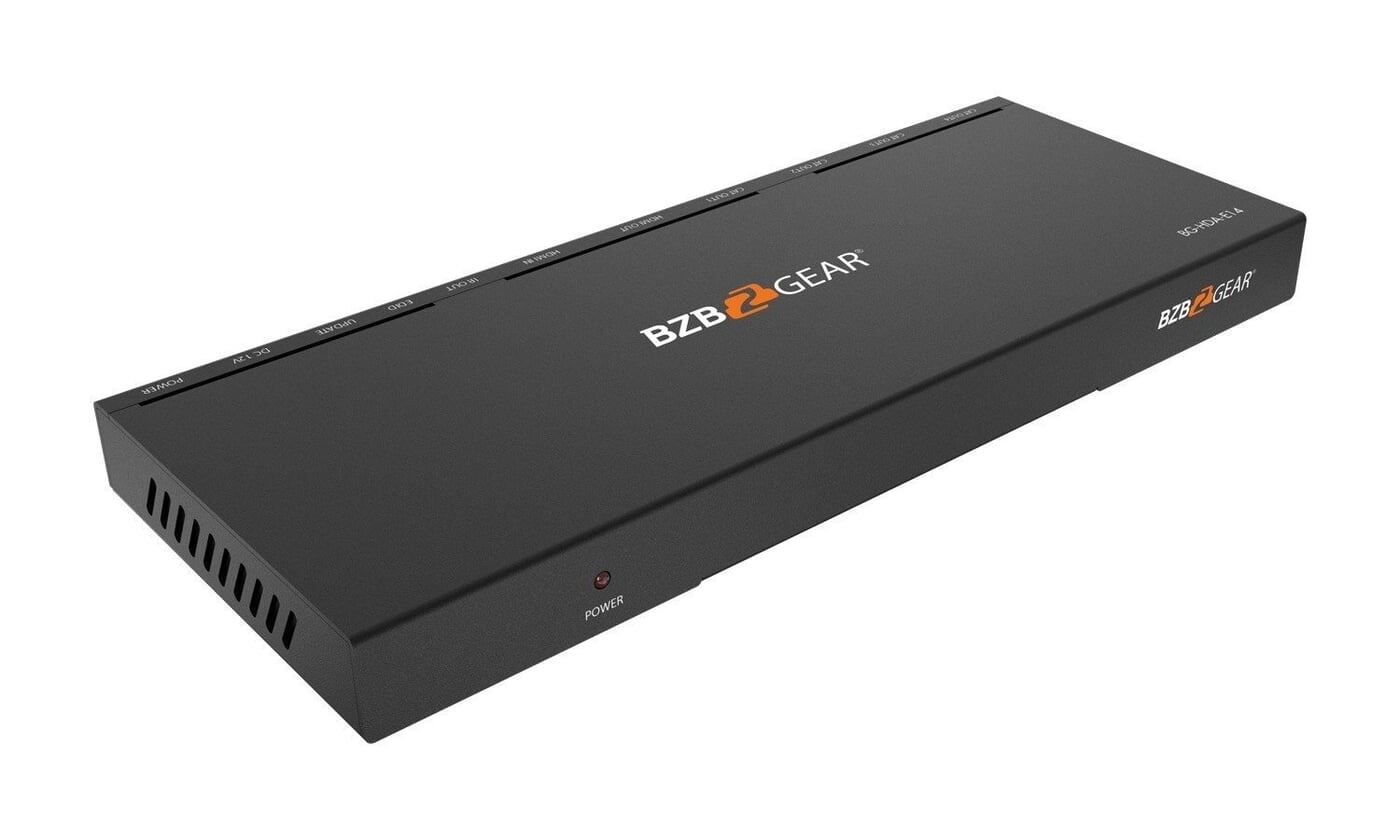

BG-HDA-E14 | 1x4 1080P/4K30 HDMI Splitter/Distribution Amplifier Kit

The BG-HDA-E14 is a 4K 1x4 HDMI splitter that can split a single HDMI source signal to four displays at distances up to 70 meters over CAT6 networking cable. This splitter is a great choice for users that need to output a single video source like a Blu-ray player, computer, game console, or streaming media player to multiple displays.

Connectivity and Quality

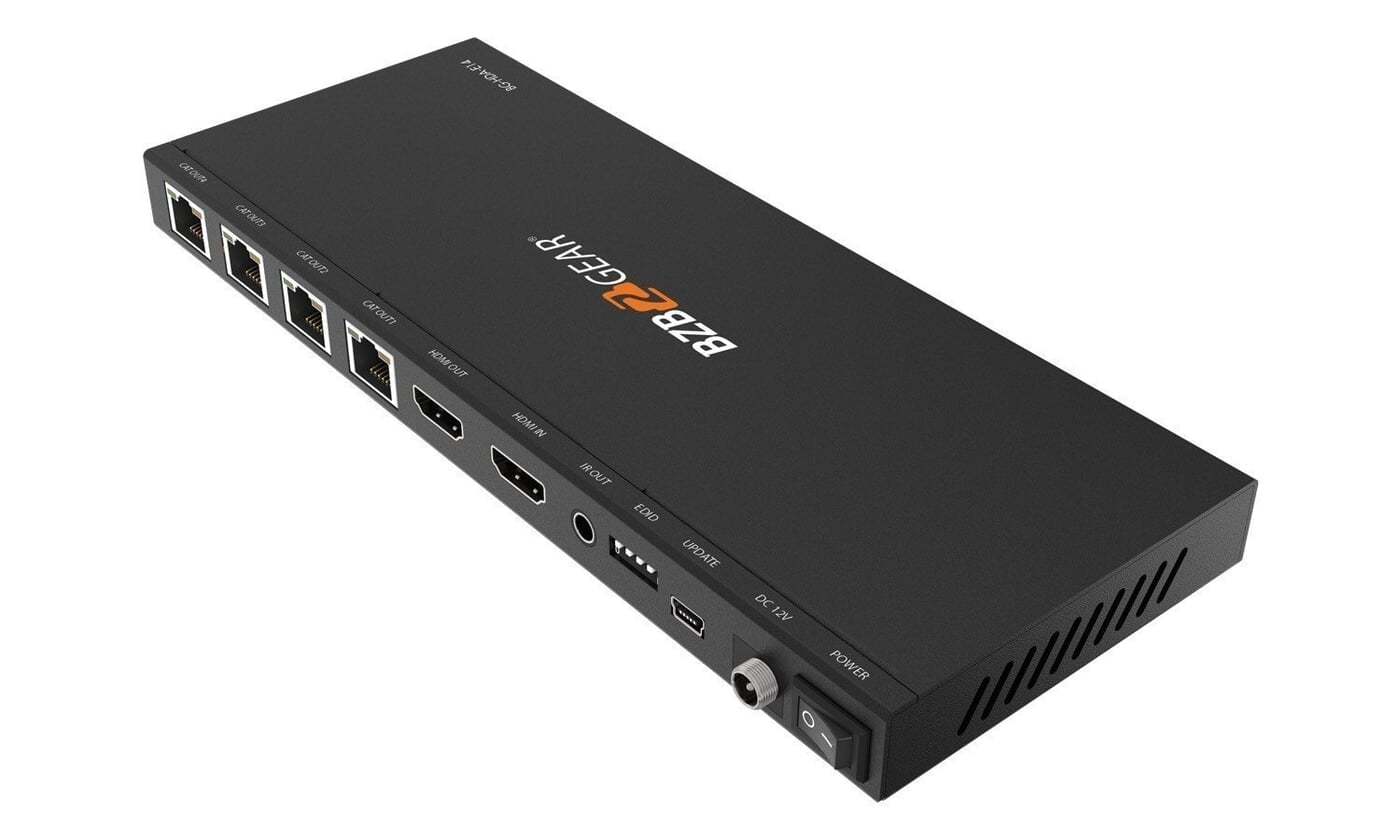

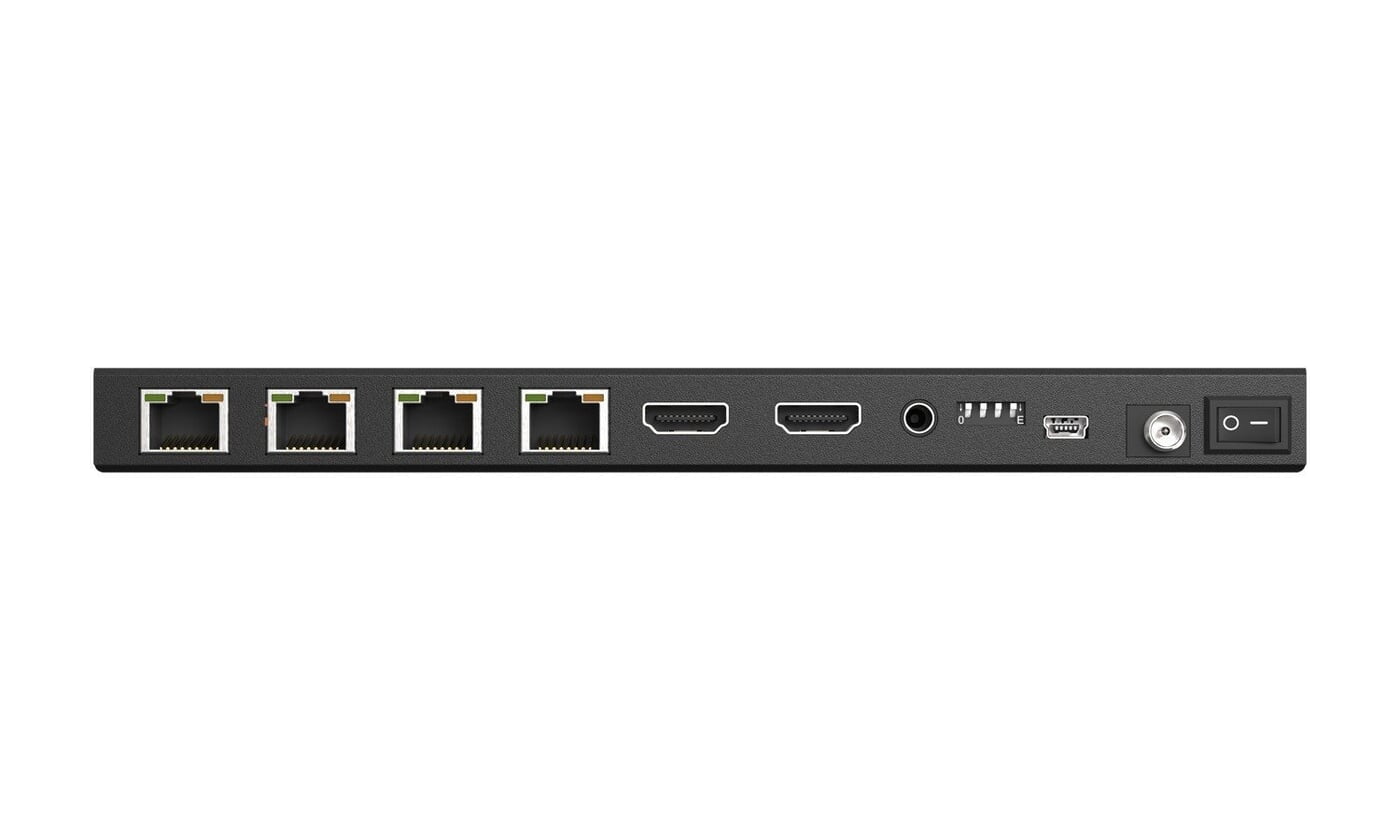

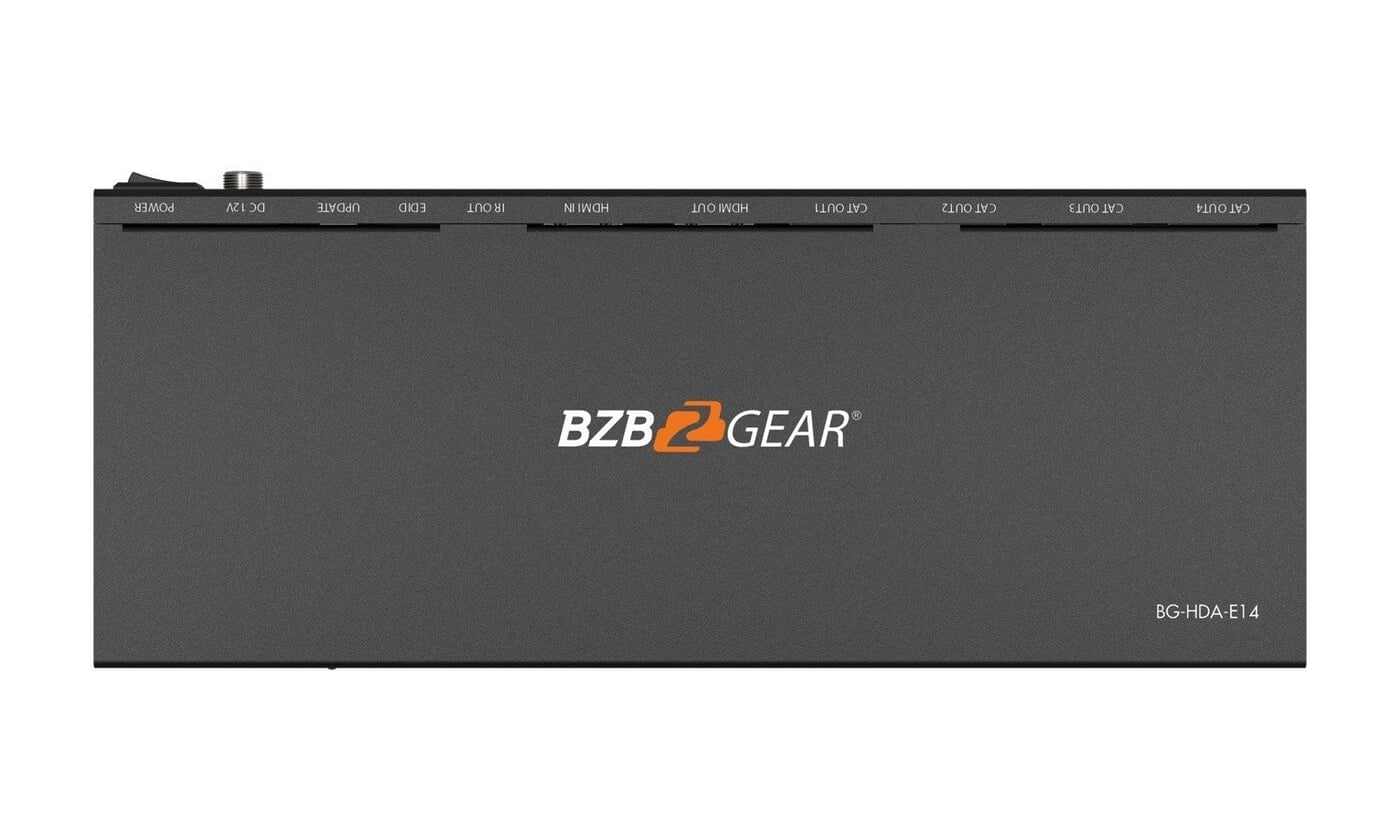

Ease of installation and high quality video are hallmarks of the BG-HDA-E14. The splitter supports resolutions as high as 4K2K@30Hz 4:4:4, ensuring no quality is lost when your input is split between the four outputs. The splitter has one HDMI input, one HDMI loop output, and eight CAT outputs. The signal can be extended at distances up to 50m/164ft at 4K@30Hz resolution or up to 70m/230ft at 1080p@60Hz.

This splitter also supports power over cable (POC) from the transmitter to receiver, eliminating the need for an external power supply at the receiver. The device is also HDMI 1.4 and HDCP 1.4 compliant. The BG-HDA-E14 has the ability to handle multiple audio formats, including LPCM 7.1CH, Dolby True HD, and DTS-HD. Link lights on the RJ45 ports provide a visual indication of connection status for at-a-glance troubleshooting.

Control and Features

A set of DIP switches on the transmitter provide access to advanced EDID management for the BG-HDA-E14. One-way IR control signal pass-through provides source control from the receivers. The IR receivers can accept and transmit a signal from up to 8 meters away.

Features

• Crystal Clear Images Supports resolutions up to 4K@30Hz
• Power over Cable (PoC) Receivers require no power supply
• HDCP 1.4 High-Bandwidth Digital Content Protection Supported
• HDMI Loop-Out Connect a local display
• Multi-Channel Audio Support Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
• Control IR Passthrough

• Extend the signal transmission distance up to 164 ft / 50 m at the resolution of 4K@30Hz, or 230 ft / 70 m at 1080P@60Hz via a single CAT6 cable
• Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs
• Advanced EDID management
