DCIO | Digital Cinema Input/Output for Q-SYS
DCIO is a cinema-specific interface that serves as the audio I/O for each screen in a Q-SYS™ enabled cinema complex. The DCIO – along with Q-SYS Cores, DPA-Q amplifiers and DCS loudspeakers – provides a cost-effective way to realize the full benefits of a Q-SYS enabled cinema for every room in a multiplex, by delivering a full-system approach to cinema audio design driven by the Q-SYS OS. Using Q-SYS Designer and custom UCIs, touchpanels, and mobile apps, the user can configure, control, and monitor their theatre audio equipment through a seamless system view.
1 RU I/O for digital cinema applications for use with Q-SYS Cores. Inputs AES3, line/mic, automation. Outputs Q-LAN A & B, HI/VI, and line/speaker out.
Features
Digital Cinema Inputs/Outputs for Q-SYS™ enabled cinemas and cinema complexes
Routes inputs/outputs from projector IMB and alternate content sources to Q-SYS Core over Q-LAN, network distribution technology by Q-SYS
Mic/line input
Line level monitor output
Powered monitor output to passive speaker
HDMI input/output for non-sync sources (DCIO-H version only)
Dolby Audio™ (featuring Dolby Digital Plus™ and Dolby® Surround 7.1) and DTS-HD® decoding (DCIO-H version only)
Four relay control outputs
HI / VI outputs
Automation inputs include RS-232 and GPI
Specifications | DCIO / DCIO-H |
General | |
Dimensions (H x W x D) | 1.75 (2 RU) x 19 x 11.2 inches (44 x 483 x 282.5 mm) |
Line voltage requirements | 100 VAC – 240 VAC, 50/60 Hz |
Accessories included | 1m UL/CSA line cord, Euro-style connectors for outputs and relay connections |

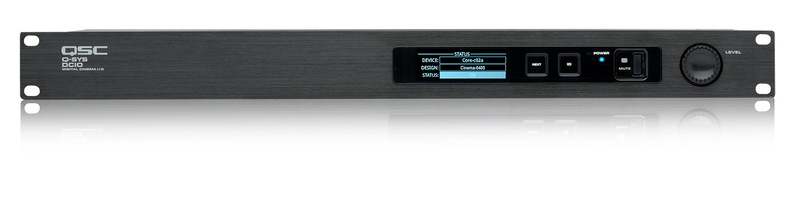

Front Panel Controls and Indicators | |
Parameter adjust | Rotary encoder |
Power On indicator | Blue LED |
Display | Monochrome 304x96 blue OLED graphics display |
Other | Momentary mute button |

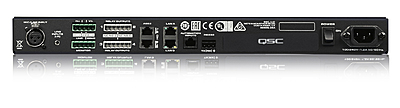

Rear Panel Connectors | |
Mic/Line input | XLR — Mic (+ phantom power) or line level |
Line Input | 3.5 mm TRS, unbalanced |
H.I./V.I. output | 5-pin Euro-style (x1) – common GND |
Monitor Line/Speaker Outputs | Line: 3-pin Euro-style, Speaker: 2-pin Euro-style, 10 W max output |
Audio Performance | |
A/D conversion | 32-bit delta-sigma, 48 kHz |
Frequency response | 20 Hz to 20 kHz (+/- .5dB) |
Stereo Line Inputs | |
Connector | 3.5mm TRS mini jack |
Input stage type | Unbalanced input |
Input impedance (4dBu sens) | > 10k Ohms |
Max analog input level (4dBu sens) | 15 dBu (4.4 Vrms) |
Input impedance (-10dBV sens) | 2.7k Ohms |
Max analog input level (-10dBV sens) | 1 dBV (1.2 Vrms) |
Other | |
Relay outputs (4) | 3-pin Euro-style |
Automation inputs (RJ45 - 6 GPI) | Max input voltage 5V (3.3V typical) |
AES3/EBU Inputs | Ch. 1-8, 15-16 (RJ45 x2) |
Automation Inputs | RJ45, RS-232 |
Dual Gigabit Ethernet Q-LAN ports | LAN A, LAN B (RJ45 x2) |
HDMI input/output (DCIO-H only) | HDMI 2.0, Type A female connectors |
Power switch | Rocker switch |
IEC Power Connector |
|
AES/EBU Digital Inputs (RJ45) | |
Input stage type | Balanced input |
Input impedance | 110 ohms |
Input sample rate | 48 kHz or 96 kHz |
Mic/Line Input (XLR) | |
Input stage type | Active balanced input |
Input impedance | 2.2k Ohms |
Max analog input level | 26 dBu |
Phantom power voltage | 15V |
All specifications are subject to change without notice.
