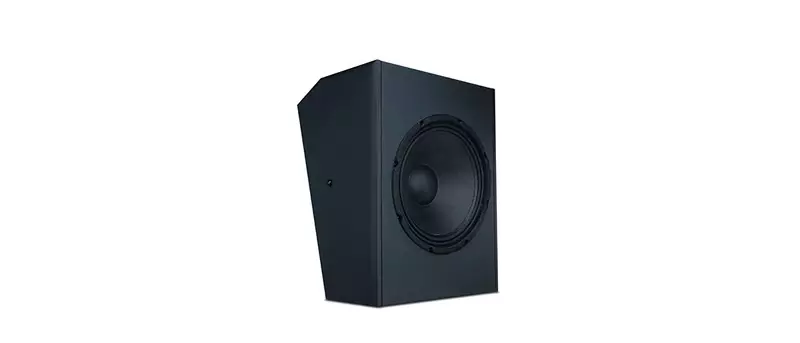

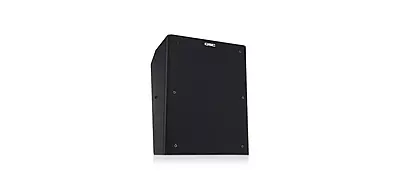

SR-1290 - Surround Loudspeaker
Features
High performance for large cinemas
12" (305 mm) woofer with 2.5" (63 mm) voice coil
1.75” voice coil (44 mm) coaxially-mounted high frequency driver
Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).
Very high-power handling meets the demands of object-based immersive audio formats
Low impedance rating enables it to draw more power from amplifiers, allowing use of lower power, less costly amplifiers.
SPECIFICATIONS | SR-1290 |
Frequency Range 1 |
|
Rated Coverage Angle (-6 dB) | 90° conical (averaged from 1 kHz to 8 kHz) |
|
|
Maximum Rated SPL 4 |
|
Rated Impedance | 4 ohms |
Rated Noise Power 2 | 400 watts continuous |
Sensitivity 1 W at 1 m, free-field 3 | 96 dB |
Transducers | 12” (305 mm) LF driver with coaxially-mounted |
Enclosure | 15 mm Baltic birch plywood, non-reflective black vinyl |
Dimensions (HWD) inches | 20.1 x 15.75 x 12.1 |
Dimensions (HWD) mm | 511 x 400 x 308 |
Weight | 36.5 lb (16.5 kg) |
1 Free-field, -10 dB from on-axis sensitivity
2 AES2-1984 noise signal for 2 hours
3 On-axis, free-field sensitivity, 1W, 1 m
4 Calculated from rated noise voltage and sensitivity
Specifications are subject to change without notice.
