Magic Cube Aura | Home Automation Gateway (Nice, Control4, Savant, Elan)
Non-returnable
€449,00
NOTE: As of April 1, the Magic Cube is no longer shipping with standard Wall Power Supply. It will ship standard with POE Adapter only. If you would like a wall adapter, please add it as separate accessory.
The Magic Cube Aura is a Professional Level robust device that uses real-time communications between Nice, Control 4 and (Coming Soon) Savant and hundreds of devices by providing a middleware hardware that translates commands from Nice to the devices.
It’s lighting fast and provides all the necessary technology to be able to control many devices around the home or business.

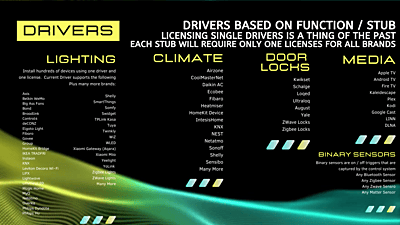

A Magic Cube can run multiple drivers and multiple instances of the same driver.
Product URL
https://innovo.net/aura/ VAT
Not Included Choose Quantity
Product Details
| CPU | Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 x Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| VPU | 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU | Support 0.8T |
| Memory | RAM: 2GB LPDDR4X |
| Storage | MicroSD Slot x1: support UHS-I Flash: 32GB eMMC |

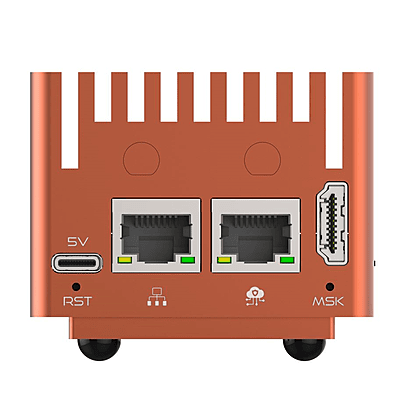

| Connectivity | Ethernet: PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1 |
| Video Output | HDMI: support HDMI1.4 and HDMI2.0 operation support up to 10 bits Deep Color modes support up to 1080p@120Hz and 4096×2304@60Hz support 3-D video formats |

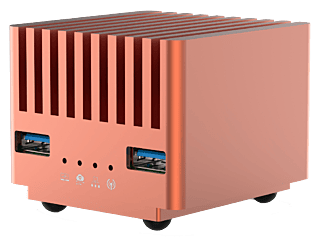

| USB | USB 3.0 Host x2: USB 3.2 Gen 1 Type-A USB-C x1: Power Only(5V) |
| Pin-header | Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN1 LED(Green) x1 LAN2 LED(Green) x1 |
| Button | MASK Button x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0℃ to 70℃ |
| Power | USB-C, 5V input |
